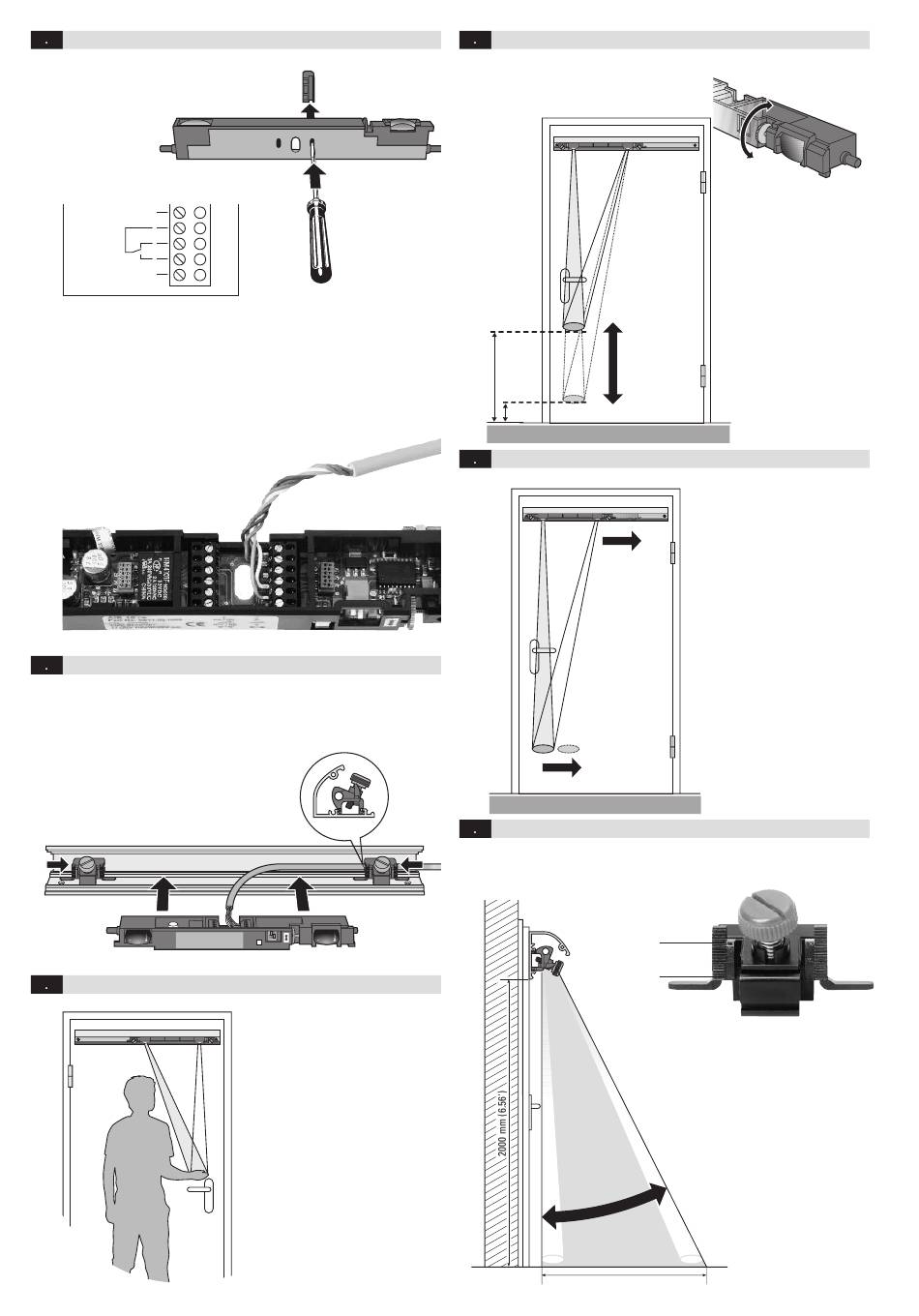

2 4 Electrical connection
The terminal block can be pushed out from
below with a screwdriver if necessary
Connect the cables to the terminal
in acc. with the diagram
+ ⁄
~
commun
nc
no
Entrée de test
Attention: diagrammed currentless!
Note on test input:
Testing is only possible for:
– stationary mode
– DC supply Power
Plug the plug-in screw terminal back
in again and route the cable away
over the guide bridge.
2 5 Mounting the sensor
Before the mounting brackets are clicked-in the red screw must be released.
Mount the sensor in the housing and slide both mounting
brackets up to the sensor.
Note:
The cable behind the mounting bracket.
Make sure the red screws on the mounting
brackets are fully open before inserting the
sensor into the brackets.
2 6 Checking the settings
6
2
3
4
5
6
Function of test input:
When the test input is active (voltage
present), the sensor is switched off.
This simulates a detection and when
functioning correctly causes the
relay to switch.
Power on the sensor after all installa-
tions have been completed
Check the detection range with a piece
of paper (A4 or Letter 8.5" x 11") or the
palm of your hand.
If necessary, adapt the detection char-
acteristics as described in chapter 2.7,
2.8 and 2.9.
Note: The LED lights up when the
sensor detects a presence.
2 7 Scanning range
Adjust the scanning range with
the adjustment wheel.
Decreasing the
scanning range
800 mm
Increasing the
scanning range
250 mm
Background / Floor
2 8 Adjust detection area
Background / Floor
2 9 Inclination angle
Set the inclination angle with the aid of the
detents on the mounting bracket.
30°
0 to 30°
1150 mm (3.77')
Increasing the
scanning range
Decreasing the
scanning range
Set the scanning range between
250 mm (9.84") and 800 mm (31.5")
above the background / floor.
Adjust the detection area by
sliding the sensor (red mounting
brackets should be open for
easy adjustements).
Scale
0°
Note:
Take care, to have the same angle
adjusted on both side (readable on
the scale). Otherwise the sensor
sits inclined in the profile.
