Adjusting a Value ([-] [+] Buttons)
Use the [-] [+] buttons to adjust a value.
Changing a value
Hold down the [+] button or [−] button.
continuously
While holding down the [+] button, press the [-] button to
rapidly increase the value.
Changing a value rapidly
While holding down the [-] button, press the [+] button to
rapidly decrease the value.
Restoring the default value Press the [+] button and [-] button simultaneously.

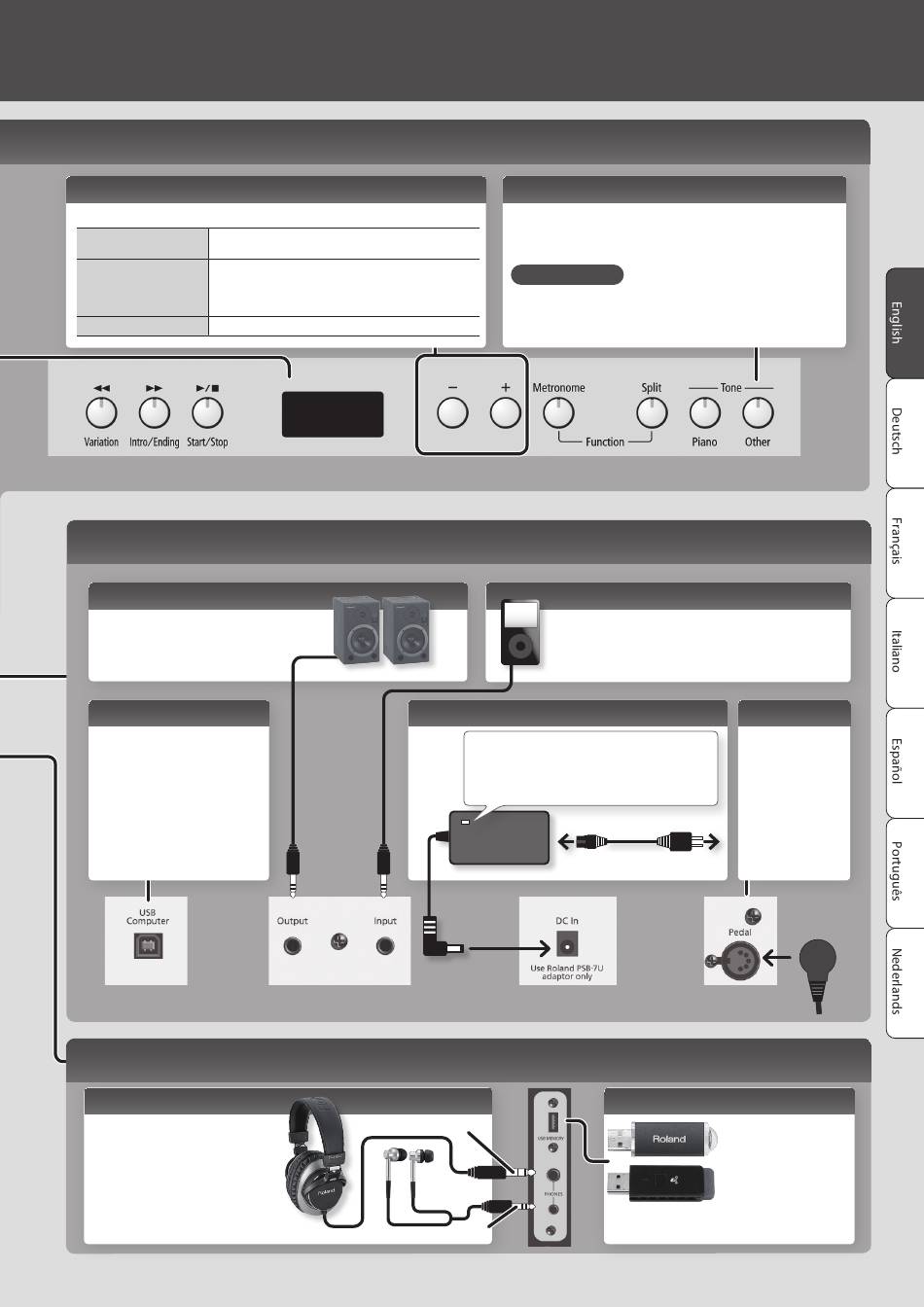

Rear Panel Connections

Output Jack
If you connect this jack to amplified
speakers, the sound of this unit will be heard
through them.
USB Computer Port
By using a commercially available USB
cable to connect the USB Computer
port of this digital piano to a USB port
on your computer, you can produce
and edit music using MIDI-compatible
software on your computer.
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.

Bottom Panel (Connecting Headphones or Memory)

PHONES Jacks
Since this unit has two headphone jacks,
two people can also use headphones
simultaneously.
A Headphones 3D Ambience effect will
be applied, producing the sensation that
the sound is emanating from the piano
itself even when using headphones (p. 12).
Disabling the Buttons ( Panel Lock)
When you activate Panel Lock, all buttons will be disabled. This prevents the
tones or settings from being changed if you inadvertently press a button.
Press the [Other] button for a longer than usual amount of time.
Cancelling Panel Lock
Once again, press the [Other] button for a longer than usual amount of time.
Input Jack
If you use a cord with a stereo mini-plug to connect a audio
player or similar device, the sound of the connected device will be
heard through this unit. Use the controls of the connected device
(audio player) to adjust the volume.
DC In Jack
Place the AC adaptor so the side with the indicator
(see illustration) faces upwards and the side with textual
information faces downwards.
The indicator will light when you plug the AC adaptor into
an AC outlet.
Stereo phone plug
Stereo-mini plug
Pedal Connector
Connect the pedal
cord of the dedicated
stand here.
To AC outlet
Power cord
USB MEMORY Port
A separately sold USB
flash drive or wireless USB
adaptor can be connected
here (p. 7, p. 15).
Use a USB flash drive or
wireless USB adapter sold
by Roland.
