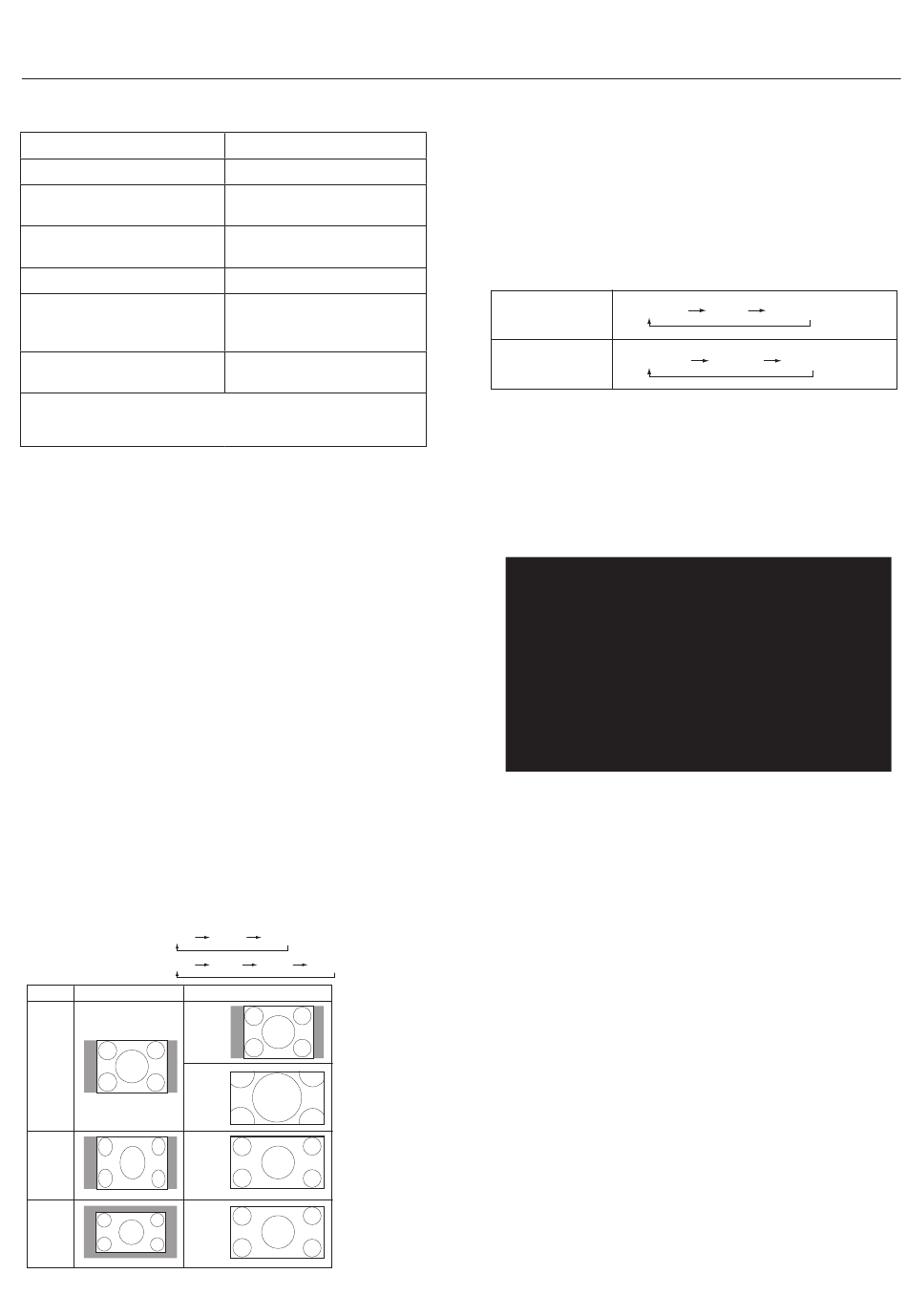

Basic Operation

Power Indicator

Mode
Power on
Power oFF (ECo StanDBY)*
Power consumption under 1W
Power oFF (StanDBY)
Power consumption under 5W
Power Save
Power Standby when
"SCHEDuLE SEttingS"
enabled
Diagnosis (Detecting faiure)
*When in Eco Standby Mode rS-232C controls do not function.
*
if "oFF" is selected in PoWEr inDiCator(See page 26), the LED will
2
not light when the LCD monitor is active mode"
Power Management
The LCD monitor follows the VESA approved DPM Power
Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period of time.
The power management feature on your new display has
been set to the "ON" mode. This allows your display to enter
a Power Saving Mode when no signal is detected. This could
potentially increase the lifetime of the display while power
consumption is decreased.
STANDBY mode is used when the display is connected to an
RS-232C cable or when using the INPUT DETECT function.
ECO STANDBY uses less power, but the RS-232C and
INPUT DETECT functions are not available.

Picture Size

The size of the picture can be changed depending on the
aspect ratio (4:3, 16:9, etc.) of the input signal.
DVI, VGA, RGBH/V, OPTION FULL
HDMI, DVD/HD, VIDEO, TV FULL
Signal Type NORMAL SIZE
NORMAL
4:3
ZOOM
(DYNAMIC)
FULL
Squeeze
WIDE
Letterbox
- continued
Status indicator Light
green*
2
red
amber
amber Blinking
green and amber
blink alternately
red Blinking
(See trouble Shooting page 41)
ZOOM NORMAL
WIDE ZOOM NORMAL
RECOMMENDED SIZE

Picture Mode

Choose the Picture Mode that is most suitable for the type of
content that is shown.
Standard: for images
sRGB: For text based applications.
Highbright: for moving images
Cinema: for movies
DVI, VGA,
RGB/HV, OPTION
HDMI, DVD/HD,
VIDEO, TV

Information OSD

The Information OSD provides information such as: Monitor
ID, Input Source, Picture Size, etc. Press the DISPLAY button
on the remote to bring up the Information OSD.
See page 34 for detailed explanation.
Monitor ID:1
Target ID:5
English-24
STANDARD sRGB HIGHBRIGHT
STANDARD CINEMA HIGHBRIGHT
DVI
AUDIO: IN1
SIZE:FULL
1024 X 768
48KHz/60Hz
