TOOLS NEEDED FOR INSTALLATION
• Saber Saw or Jig Saw
• Drill
• 1 1/4" Wood Drill Bit
• Pliers
(Magnetic head)
• Phillips Screwdriver
• Wire Stripper or Utility Knife
• Metal Snips
• Measuring Tape or Ruler
• Level
• Pencil
• Caulking Gun
• Duct Tape
PARTS SUPPLIED FOR INSTALLATION
• 1 Literature Package
PARTS NEEDED FOR INSTALLATION
• 2 Conduit Connectors
• Power Supply Cable
• Screws to Reinforce Atttachment
• Scews for Field Wiring Box
• 1 Wall or Roof Cap
• All Metal Ductwork
WARNING
!
When building a custom hood,
always follow all applicable
codes and standards.
This hood can be installed directly into a cabinet without a liner using 12 of the 9c screws
(FIGURE 1). The liner is built into the hood already.
1. Cut the opening in the bottom of the cabinet according to the chart below (FIGURE 2, 3)
Outside Hood
Dimension
36" x 19" INPL3619SS 34 3/4" 19 3/4"
36" x 22" INPL3622SS 34 3/4" 22 3/4"
42" x 19" INPL4219SS 40 3/4" 19 3/4"
48" x 19" INPL4819SS 46 3/4" 19 3/4"
48" x 22" INPL4822SS 46 3/4" 22 3/4"
1. Hood body with lights and controls
2. Left Side Rail
3. Right Side Rail
4. (2) front / back trim
5. (2) left/right trim
6. grease filters (3 - 36/42" / 4 - 48")
7. filter knobs (6 - 36,42" / 8 - 48")
8. grease rail
9a. (4) side rail screws
9b. (16) trim screws
9c. (12) install screws
9d. (6 - 36,42", 8 - 48") filter knob screws
6
FIGURE 1
MAKING THE CABINET CUT OUT
Model #
X

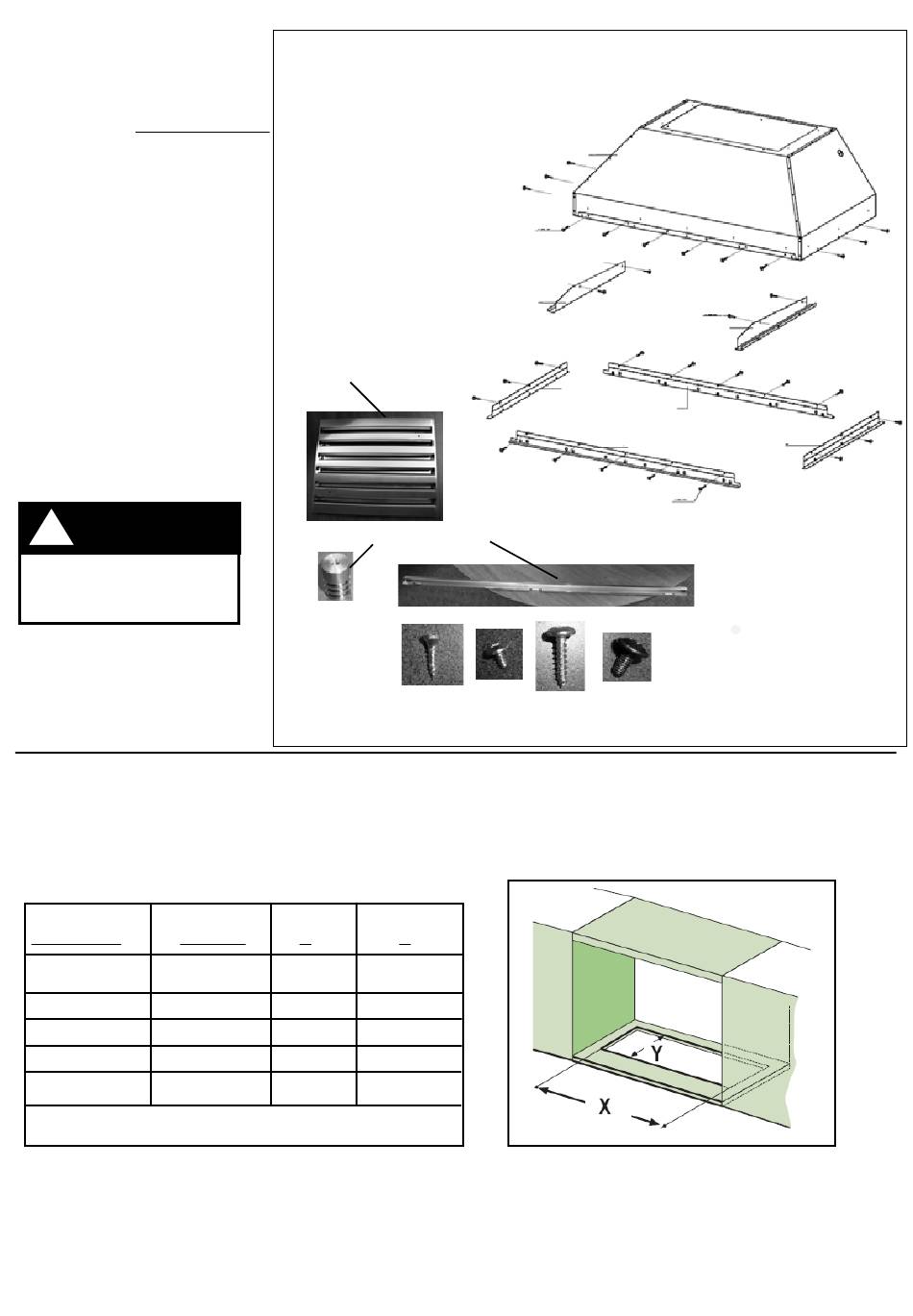

RANGEHOOD COMPONENTS
9c
2
7
8
9b
9a
9c
Y
FIGURE 3
1
9a
3
5
4
4
9b
9d
FIGURE 2
5
