BATTERY CHECK/SETTING ON A NEW MACHINE

WARNING!
The electric components of the machine can be seriously damaged if the batteries are either
improperly installed or connected. The batteries must be installed by qualified personnel only.
Set the function electronic board and the built-in battery charger according to the type of
batteries used (WET or GEL/AGM batteries).Check the batteries for damage before
installation. Disconnect the battery connector and the battery charger plug. Handle the
batteries with great care. Install the battery terminal protection caps supplied with the machine.
NOTE
The machine requires two 12 V batteries, connected
according to the diagram (Figure3).
The machine can be supplied in one of the following modes:
A) Batteries (WET or GEL/ AGM) already installed and charged
1. Check that the batteries are connected to the machine with the connector (54).
2. Insert the ignition key (35) and turn it to "I". If the green warning light (38) turns on, the batteries are fully
charged. If the yellow (37) or red warning light (36) turns on, the batteries must be charged (see the procedure in
Maintenance chapter).
B) Without batteries
1. Buy appropriate batteries (see the Technical Data paragraph).
2. For battery choice and installation, apply to qualified battery Retailers.
3. Set the machine and the battery charger according to the type of batteries (WET or GEL/ AGM), as shown in the
next paragraph.
!
!
!
11
ENGLISH
-
+
12V
12V
-
+

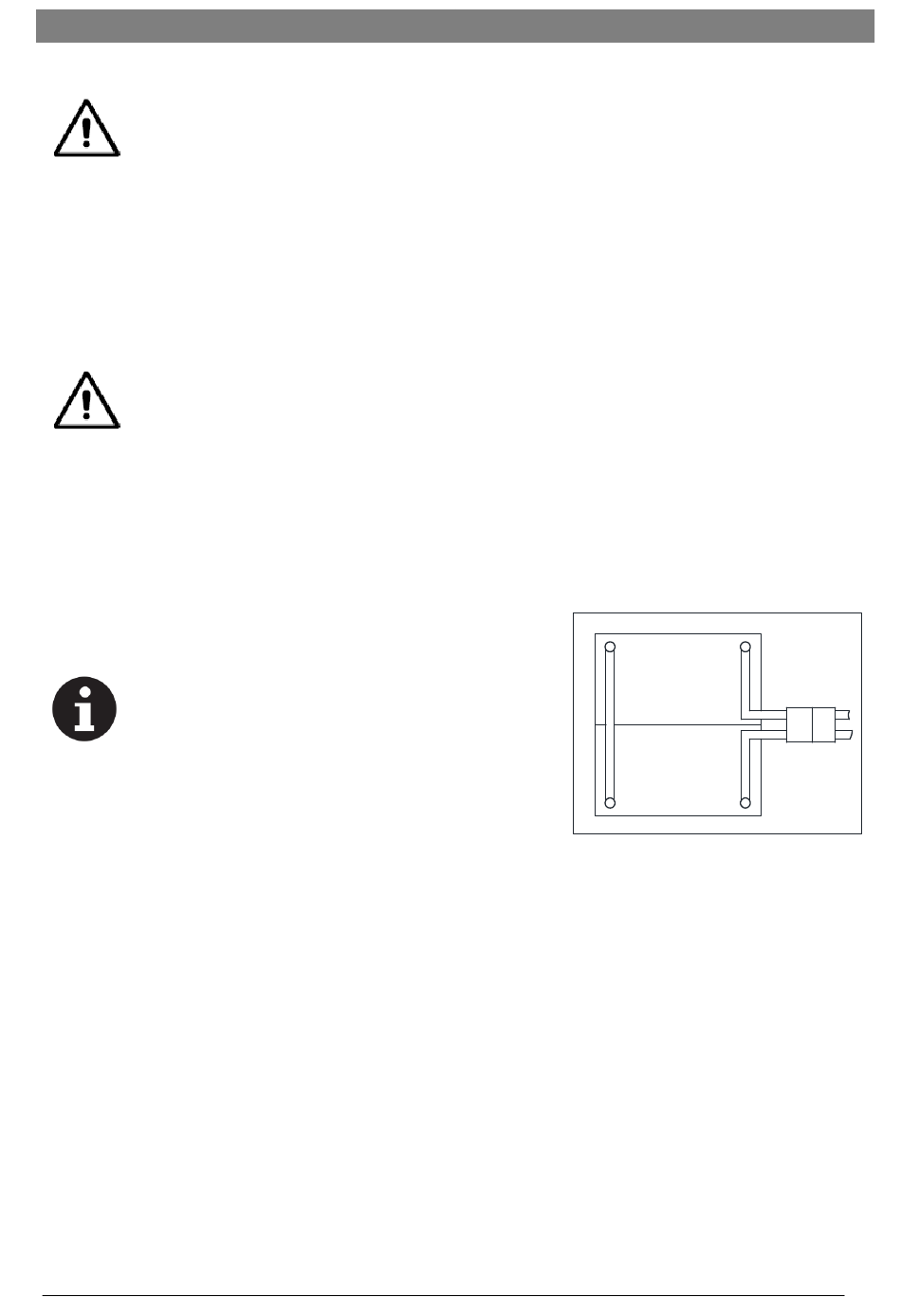

Figure 3
