ADB MULTIPRO-MK2 Manuel D'instructions page 8

MULTIPRO - MK2

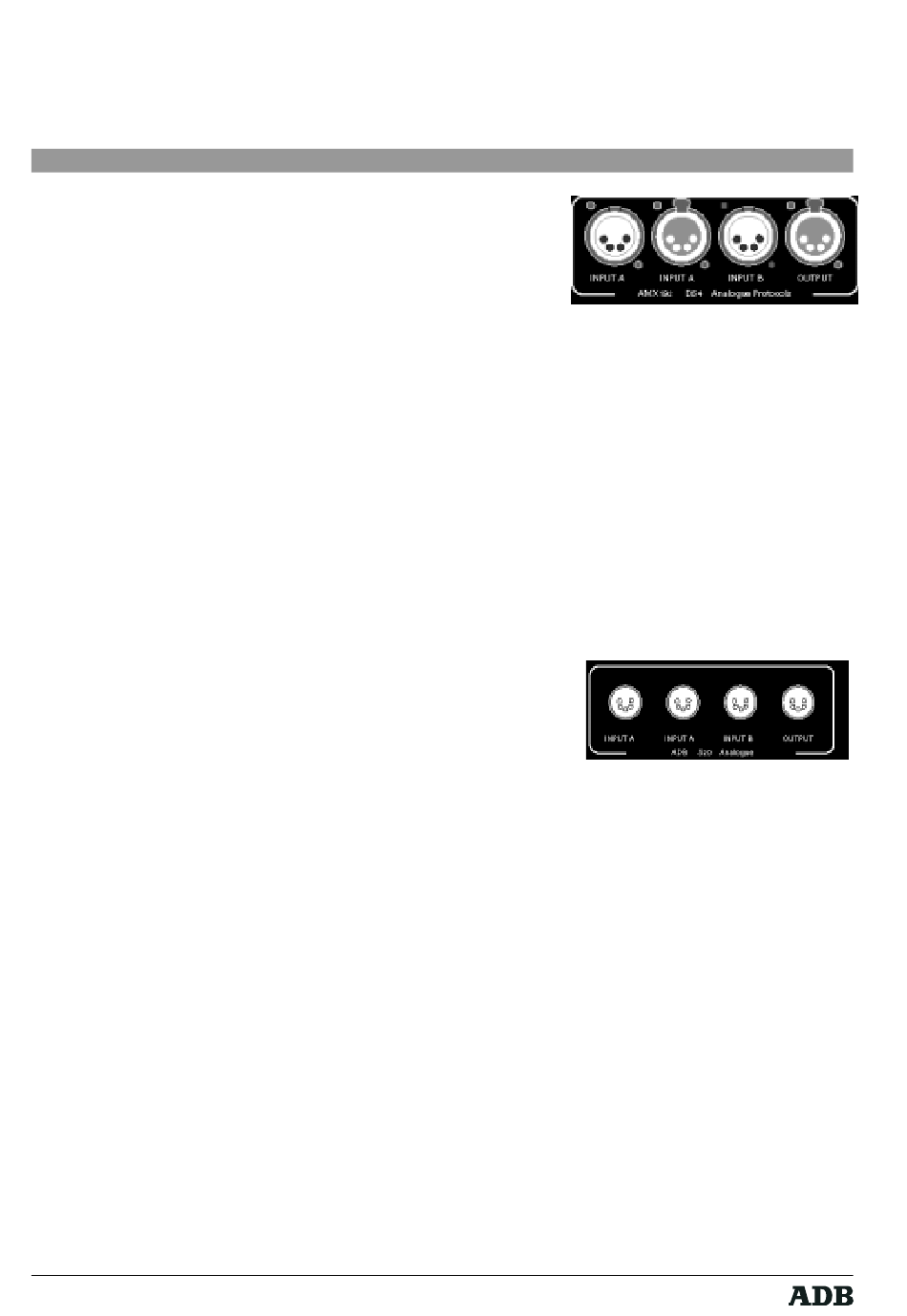

AMX192 & D54 Input A
Pin 1 Internal OVDC (Connect to cable screen)
Pin 2 Clock + (AMX192)
Pin 3 Analogue Data (AMX192 & D54)
Pin 4 Clock - (AMX192)
AMX192 & D54 Input B
Pin 1 Internal OVDC (Connect to cable screen)
Pin 2 Clock + (AMX192)
Pin 3 Analogue Data (AMX1 92 & D54)
Pin 4 Clock - (AMX192)
AMX192 & D54 Output
Pin 1 Internal OVDC (Connect to cable screen)
Pin 2 Clock + (AMX192)
Pin 3 Analogue Data (AMX1 92 & D54)
Pin 4 Clock - (AMX192)
S20 Input A
Pin 1 Clock
Pin 2 Internal OVDC (Connect to cable screen)
Pin 3 Analogue Data
Pin 4 NC
Pin 5 NC
S20 Input B
Pin 1 Clock
Pin 2 Internal OVDC (Connect to cable screen)
Pin 3 Analogue Data
Pin 4 NC
Pin 5 NC
S20 Output
Pin 1 Clock
Pin 2 Internal OVDC (Connect to cable screen)
Pin 3 Analogue Data
Pin 4 NC
Pin 5 NC
Power Supply
The internal power supply requires a 230V AC input with an earth connection.
The mains fuse should only be replaced with a 200mA Slow Blow.
Page 8
Rev. : 002
Lighting Technologies
