MULTIPRO - MK2
Introduction
Overview
The Multipro is a sophisticated rack mount unit designed to fix the most common
and most difficult problems encountered in lighting control.
Input :
The product supports dual inputs which may be selected to receive any of the
following protocols:
• DMX512 (Both pre and post 1990)
• AMX192
• D54
• Avab
• S20
Each input also provides a data receive indicator and an address switch which allows
each input to be offset from channel one.
The DMX512 and AVAB inputs are optically isolated from the output and each other.
This is a particular benefit in removing earth loop problems in large installations and
outdoor events.
Output :
The output is formed by merging the two inputs. If the address switches are set
such that the two incoming data streams overlap, the output is highest takes
precedence.
This means that the Multipro may be used to either allow two lighting desks control
of the same dimmers or to combine two desks to a higher channel count.
For example to allow two 60 channel desks to operate as a single 120 channel desk.
The output protocol can also be selected from any of those listed above.

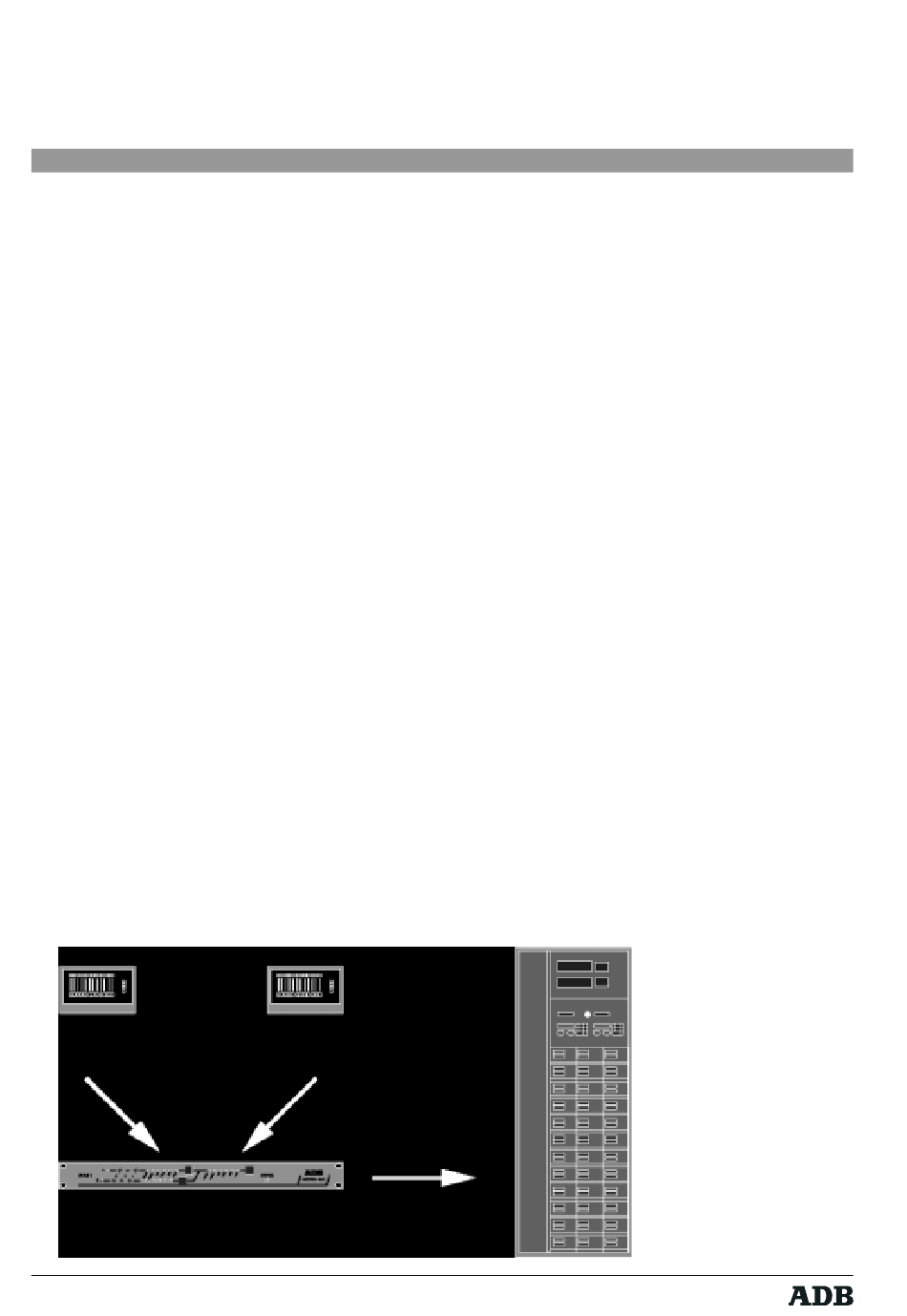

Application Example

DMX output
S20 output
Channels 1 to 60
Channels 1 to 60
Input A
Offset = 001
Input B
DMX 512 input
Offset = 061
dimming system
Channels 1 to 120
Page
4
Rev. : 002
