MULTIPRO - MK2

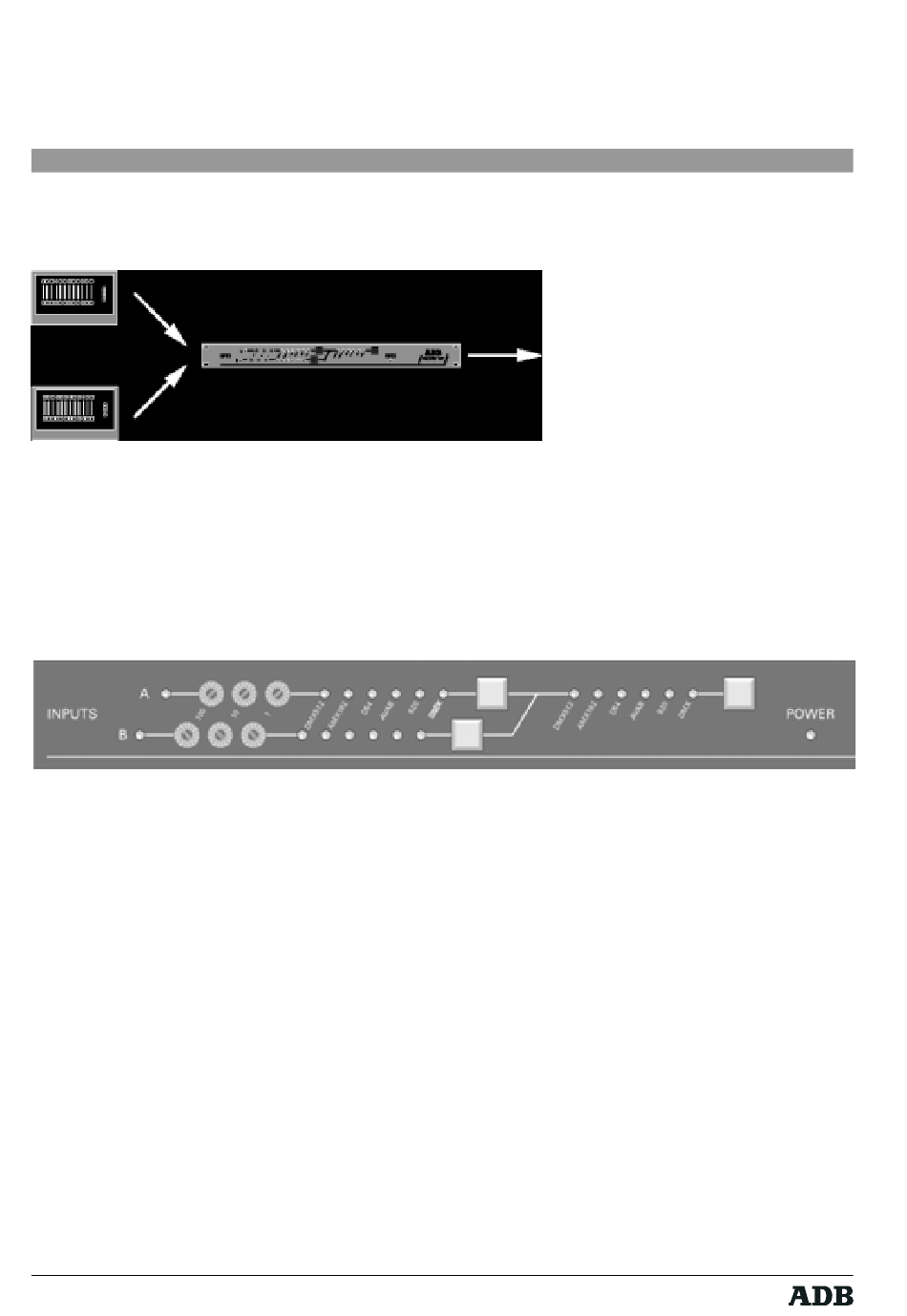

Example of Concatenated Inputs
Input A
Offset = 001
Output containes
DMX 512 output
Input A on channels
30 channels
1-30 and Input B on
Input B
channels 31-60
Offset = 031
DMX 512 output
30 channels
Data Received Indicator
The red LED's to the left of the front panel show the status of received data.
A constant red light shows that correct data for the selected protocol is being
received.
Output Protocol Selection
The output protocol is shown by the band of LED's on the right side of the front
panel.
The six possible options are cycled through by repeatedly pressing the push button
to the right of the LED's.
