3-1.TOOLS FOR ASSEMBLY (YOUR SAW
WAS ASSEMBLED AT THE FACTORY)
You will need these tools to assemble your chain saw:
1. Combination wrench-screwdriver (contained in your
user's kit or in lid of carry case).
2. Heavy duty work gloves (user supplied).

3-2.ASSEMBLY REQUIREMENTS

Your new chain saw will require adjustment of chain, filling
the fuel tank with correct fuel mixture and filling the oil tank
with lubricating oil before the unit is ready for operation.
WARNING
DO NOT start saw engine until unit is properly prepared.
Read the entire user manual before attempting to operate
your unit. Pay particular attention to all safety precautions.
Your user manual is both a reference guide and handbook
provided to furnish you with general information to assem-
ble, operate and maintain your saw.
3-3.GUIDE BAR / SAW CHAIN / CLUTCH
COVER REMOVAL AND INSTALLATION
WARNING
Always wear protective gloves when handling chain.

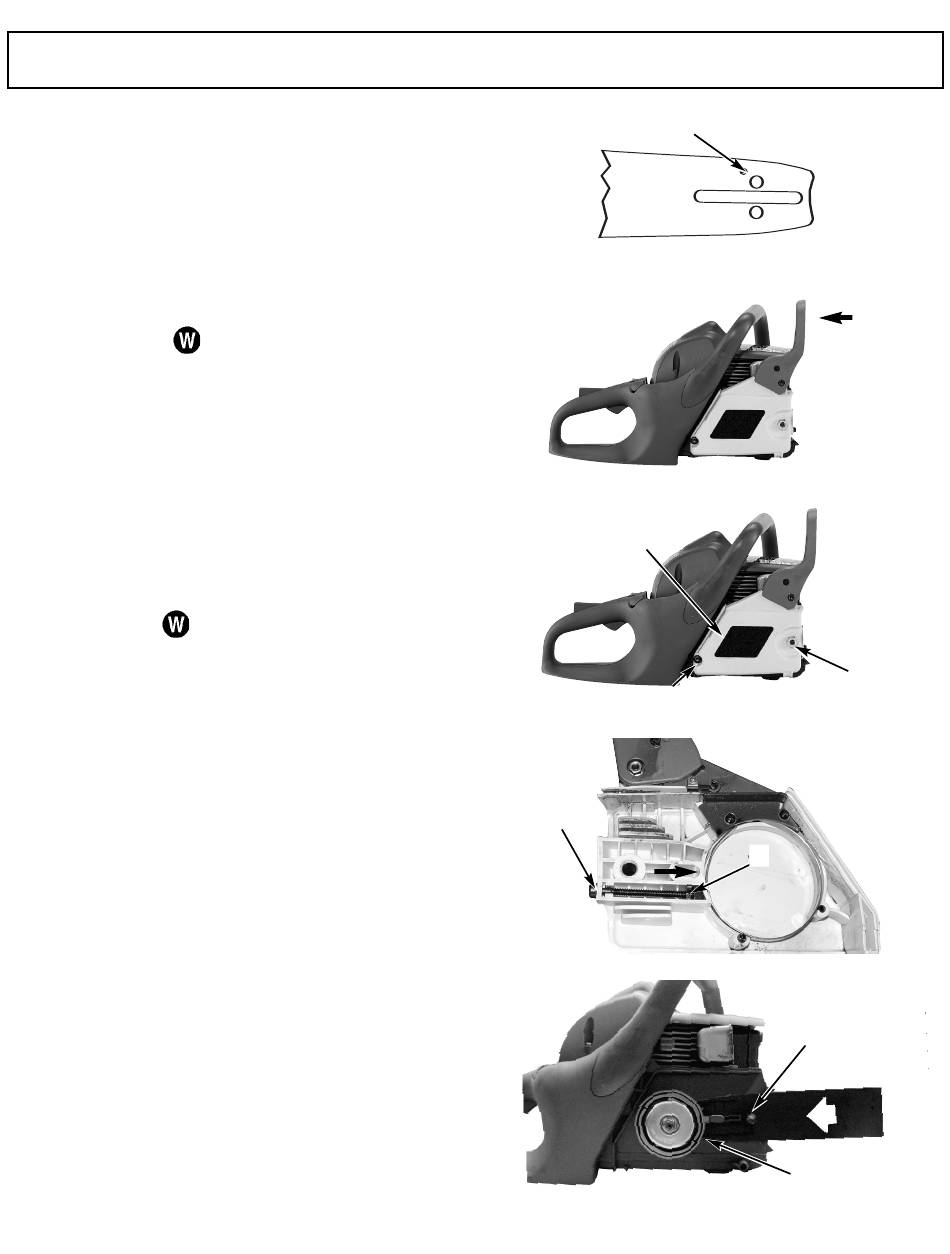

TO INSTALL GUIDE BAR:
CAUTION
To ensure the bar and chain receive oil, ONLY USE THE
ORIGINAL STYLE BAR with the oil passage hole (A) as
illustrated above (Figure 3-3A).
1. Make sure the CHAIN BRAKE
the DISENGAGED position (Figure 3-3B)
2. Remove the bar retaining nut (B1) and the screw (B2)
at rear of clutch cover (C). Remove clutch cover (C) by
pulling straight out, some force may be required.
(Figure 3-3C)
3. Raise tip of bar so that it disengages from adjusting
tang.
4. Carefully disengage chain from bar and remove.
5. Remove bar from saw by lifting it off of bar bolt.
6. Using a screwdriver or the wrench supplied in the
user's kit or in the upper half of the carrying case. Turn
the adjustment screw (D) COUNTERCLOCKWISE until
the TANG (E) (projecting prong) is to the end of its trav-
el (Figure 3-3D).
7. Place the slotted end of the guide bar over the bar bolt
(F). Slide guide bar behind clutch drum (G) until the
guide bar stops (Figure 3-3E).

3 - ASSEMBLY INSTRUCTIONS

® lever is pulled back into
C
D
7
A
3-3A
3-3B
B2
3-3C
E
3-3D
F
G
3-3E
B1
