3. Ceiling Fan Assembly
3.12
Loosen the two setscrews in the motor coupling.
Place the 4.5" downrod into the motor coupling, aligning
the clevis pin holes in the downrod with the holes in the
motor coupling (Figure 12).
The clevis pin must go through the holes in the motor
coupling and the holes in the downrod.
Be sure to push the straight leg of the hairpin clip through
the hole near the end of the clevis pin until the curved
portion of the hairpin clip snaps around the clevis pin.
The hairpin clip must be properly installed to prevent the
clevis pin from working loose.
Pull on the downrod to make sure the clevis pin is properly
installed.
WARNING
!
It is critical that the clevis pin in the motor coupling is
properly installed. Failure to verify that the pin is properly
installed could result in the fan falling.
3.13
While pulling up on the 4.5" downrod, retighten the two
setscrews (previously loosened) in the motor coupling to
NOTE: The setscrews must be properly installed as
secure the downrod into place (Figure 13).
described above, or fan wobble could result.
(continued)
4.5"
DOWNROD
CLEVIS
PIN
MOTOR
COUPLING

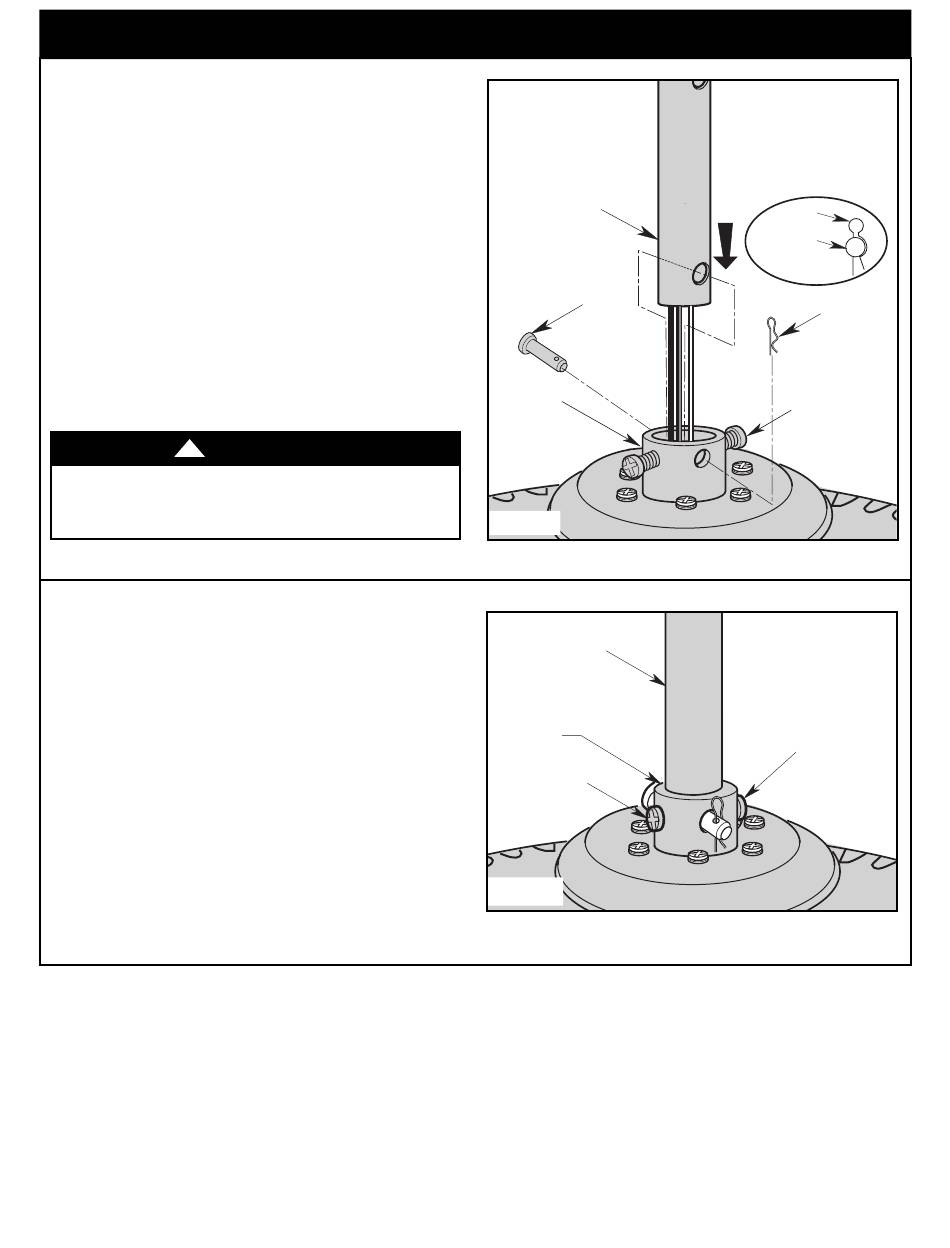

Figure 12
4.5" DOWNROD
MOTOR
COUPLING
RETIGHTEN
SETSCREWS
Figure 13
