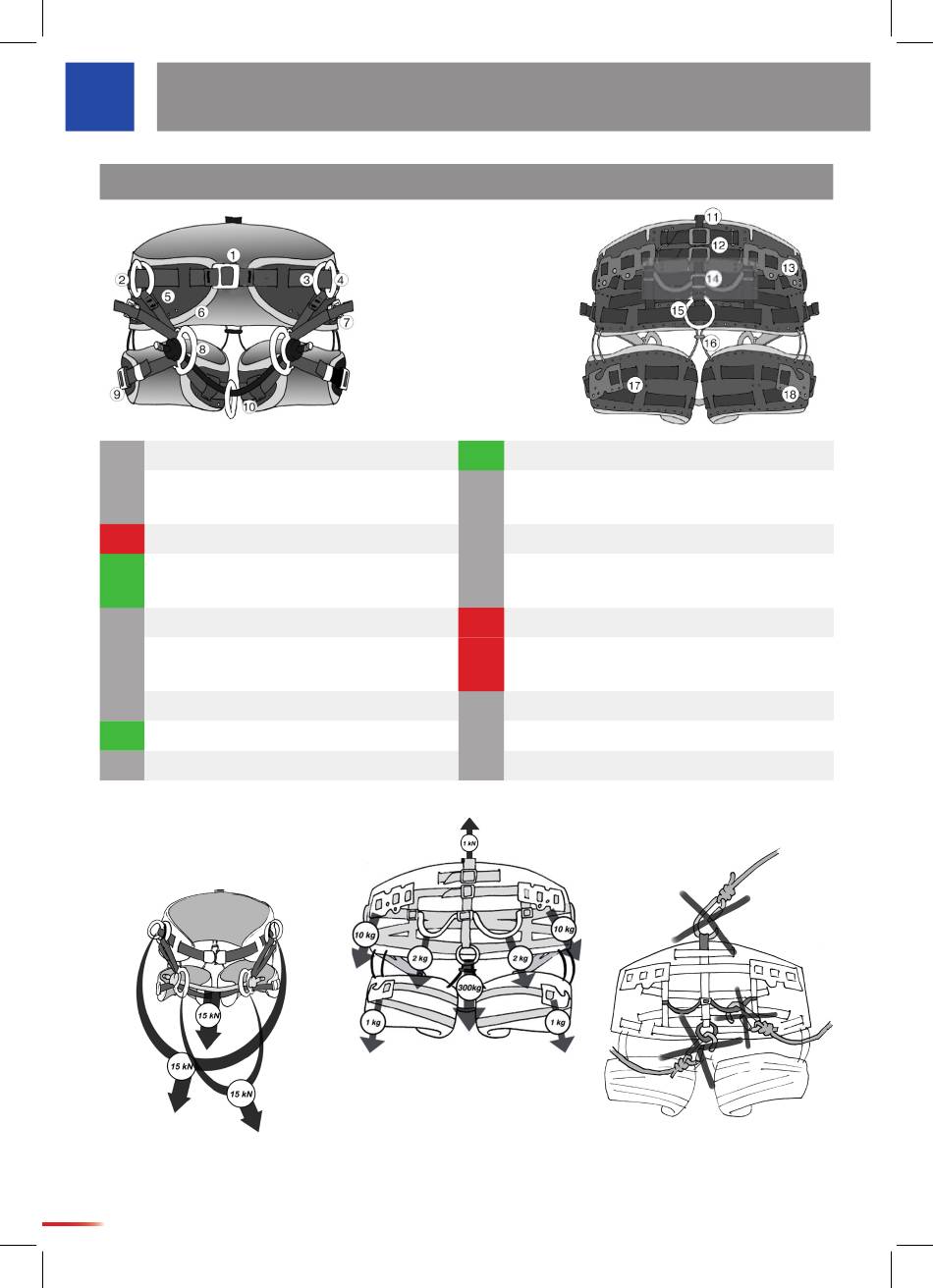

2.3. ATTACHMENT POINTS treeMOTION S.light

1 Waist belt adjuster buckle
2 Side D ring assembly (L+R)
3 Lying Ring (L+R)
4 Standing Ring (L+R)
5 Adjustable leg link (L+R)
6 Back padding
7 Adjuster buckles (L+R)
8 Front D rings (L+R)
9 Leg loop adjuster buckles (L+R)
PPE attachment points
test loads applied according to
EN 358 or EN 813 respectively
EN 813
EN 358
EN 813
Note: All climbing attachment points are coloured green.
8
GREEN
= PPE
attachment points
RED = Non-PPE
attachments points
10 Rope bridge attachment point
11 Attachment point for lightweight shoul-
der straps
12 Compression straps for First Aid kit
13 Accessory karabiner brackets for gear
storage
14 Height adjustable gear loops
15 Central rear attachment ring for tools (e.g.
chainsaw) - no PPE attachment point
16 Leg loop cradle system
17 Leg Loops (L+R)
18 Accessory karabiner bracket
Gear loops Max. loads
Central ring is the attach-
ment point for tools (e.g.
chainsaw. (DF: 15)
Not for PPE attachment
