5

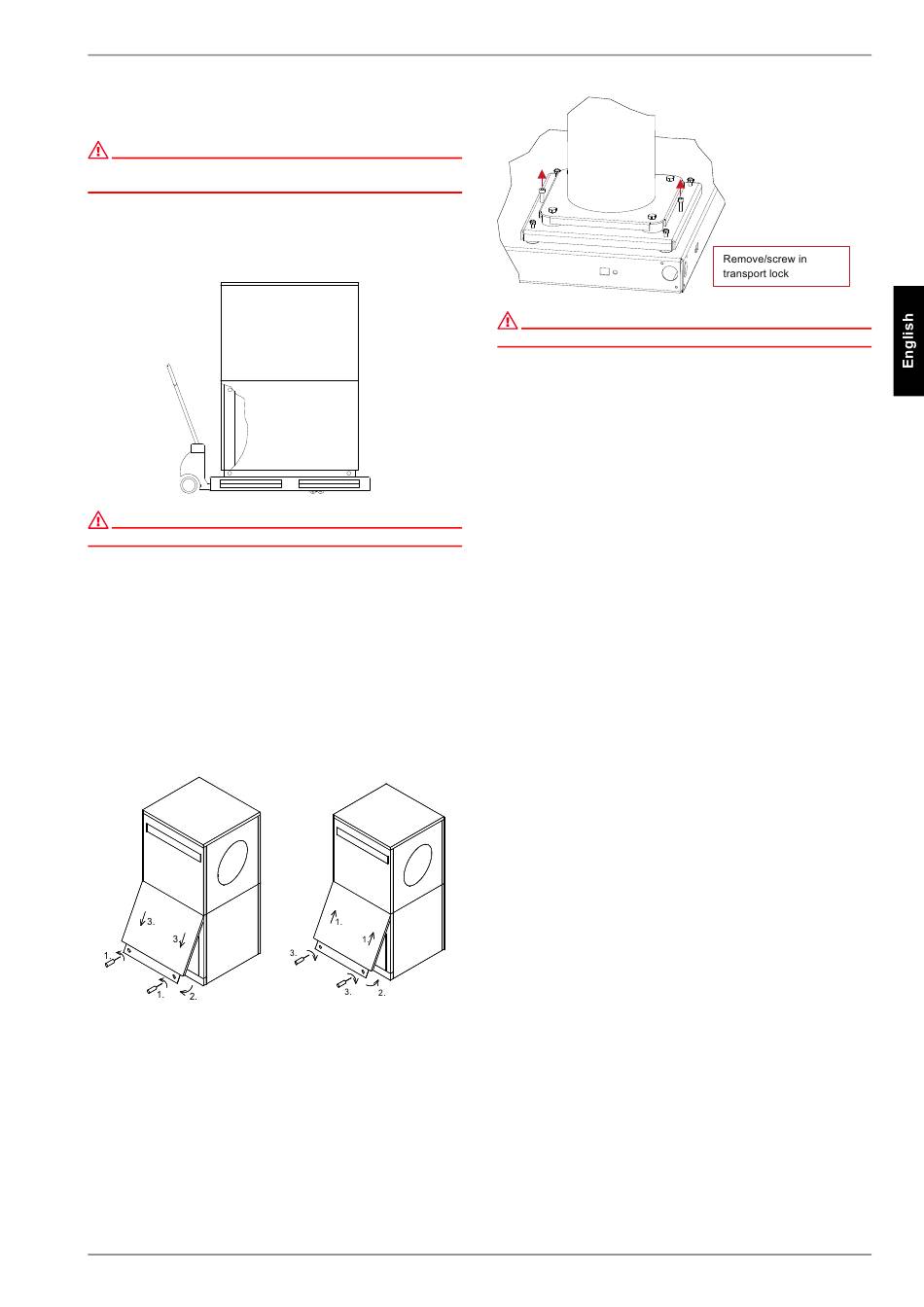

Transport
ATTENTION!
When transporting the heat pump, ensure that it is not tilted more than
45° (in any direction).
Use a pallet for transporting the heat pump to the final installation
location. The basic device can be transported with a lift truck,
hand truck or by means of 3/4" pipes fed through the holes in the
base plate or frame.
ATTENTION!
The heat pump and transport pallet are only joined by the packing film.
Before using the transport holes in the frame, it is necessary to
remove the right and left mid façade panels (it is not necessary to
remove the lower panels for the tubular feedthroughs). If the
lower transport holes in the frame are to be used, their plastic
caps must first be removed.
This is done by loosening each of the two screws at the base and
then withdrawing the panels to unhook them at the top.
Rehang the panels by gently pushing them in an upwards direc-
tion.
Be careful not to damage any components when inserting the
pipes through the frame.
Opening the cover
After the transport, the transport securing device is to be re-
moved on either side at the bottom of the unit.
www.dimplex.de
The transport securing device is to be removed prior to commissioning.
5.1 Accessories pack
Contents:
1 x large sealing ring for duct connection
(on the upper cover of the heat pump)
1 x small sealing ring for duct connection
(on the upper cover of the heat pump)
1 x insulating mat duct connection
(on the upper cover of the heat pump)
1 x external sensor incl. dowels (2 x) + screws (2 x)
(in the switch box)
8 x blind plugs ø 30 - black (located under the ventilator)
4 x long nuts M8 (located under the ventilator)
4 x screws 6-KT M8x16 (located under the ventilator)
1 x installation and operating instructions
Closing the cover
452160.66.49 · FD 9302
ATTENTION!
LI 15TE
EN-5
