RD5100H
O + locator
2
1
2
4
5
21
17
15 16
17
18
19
20
22
23
24
25
30
26
27
7
3
8
6
11
13
9
10
11
12
31
32
29
33
28
4

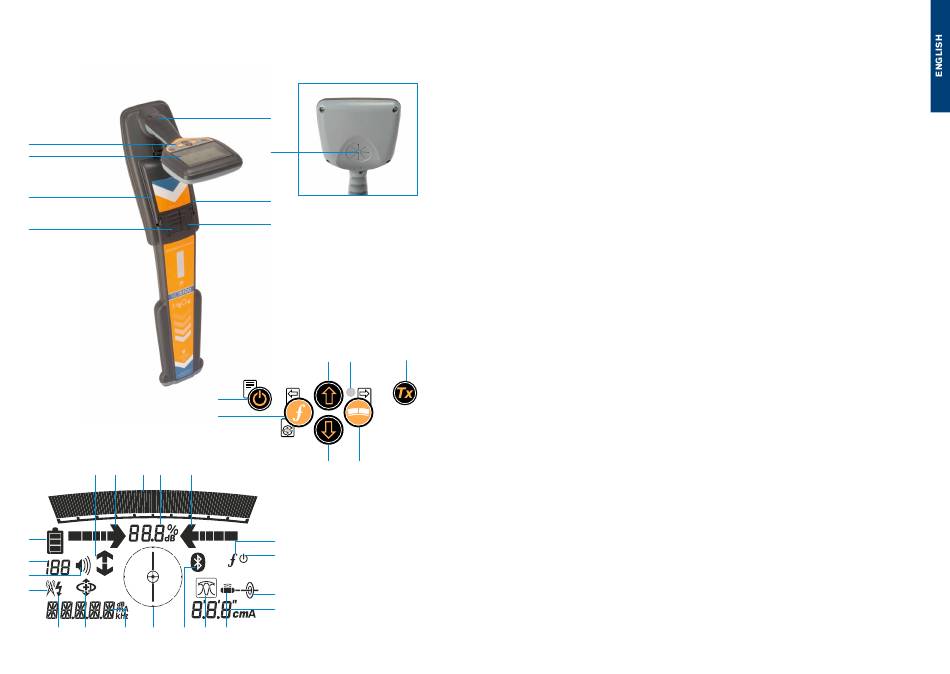

Locator features
1.
Keypad.
2.
LCD with auto backlight.
3.
Speaker.
4.
Battery compartment.
(Optional Lithium-Ion battery pack).
5.
Accessory connector.
6.
Headphone connector.
7.
Bluetooth
8.
Mini USB-B port
(inside battery compartment).
Locator keypad
9.
Power key.
10. Frequency key.
11. Up and down arrows.
12. Target Position Indicator key.
13. Backlight sensor.
14
14. Transmitter key.
Locator screen icons
15. Signal strength bargraph with
peak marker.
16. Signal strength readout.
17. Null / Proportional Guidance arrows.
18. Battery level.
19. Sensitivity readout.
20. Volume level.
21. Current Direction arrows.
22. Radio Mode icon.
23. Power Mode icon.
24. CD Mode icon.
25. Frequency / current / menu readout.
26. Bluetooth status icon:
Flashing icon means pairing is in
progress. Solid icon indicates a
connection is active.
module antenna.
®
27. Antenna mode icon:
Indicates antenna mode selection:
Peak / Guidance.
28. Sonde icon: Indicates that a sonde
signal source is selected.
29. Line icon: Indicates that a line signal
source is selected.
30. Compass: Shows the orientation
of the located cable or sonde relative
to the locator.
31. Transmitter communication status
– confirms successful iLOC
communication.
32. Transmitter standby indicator.
33. Depth readout.
5
™
