1.

INTRODUCTION

The KIT WIFI 1 module that you have purchased allows you to remotely control and configure through a smartphone connected to internet via
a web app the products that work with pellets from Bronpi Calefaccion S.L. within the air and radiofrequency series (stoves, inserts, extra-slim
stoves, extra-slim channeled stoves etc.), whenever there is internet connection. Therefore, for the hydro appliances of the brand (boilers,
thermo-stoves, hydro insert) this application is not operative.
The main functions of the application are:
- Turning the stove on and off.
- Display of the operating state of the stove in real time.
- Adjustment of working power.
- Adjusting the air temperature (air units).
- Programming of the chronothermostat
- Current temperature detected by the stove.
- Alarm states.
- Management of several stoves through their corresponding modules KIT WIFI 1
- Choose language.
2.

ACCESSORIES SUPPLIED

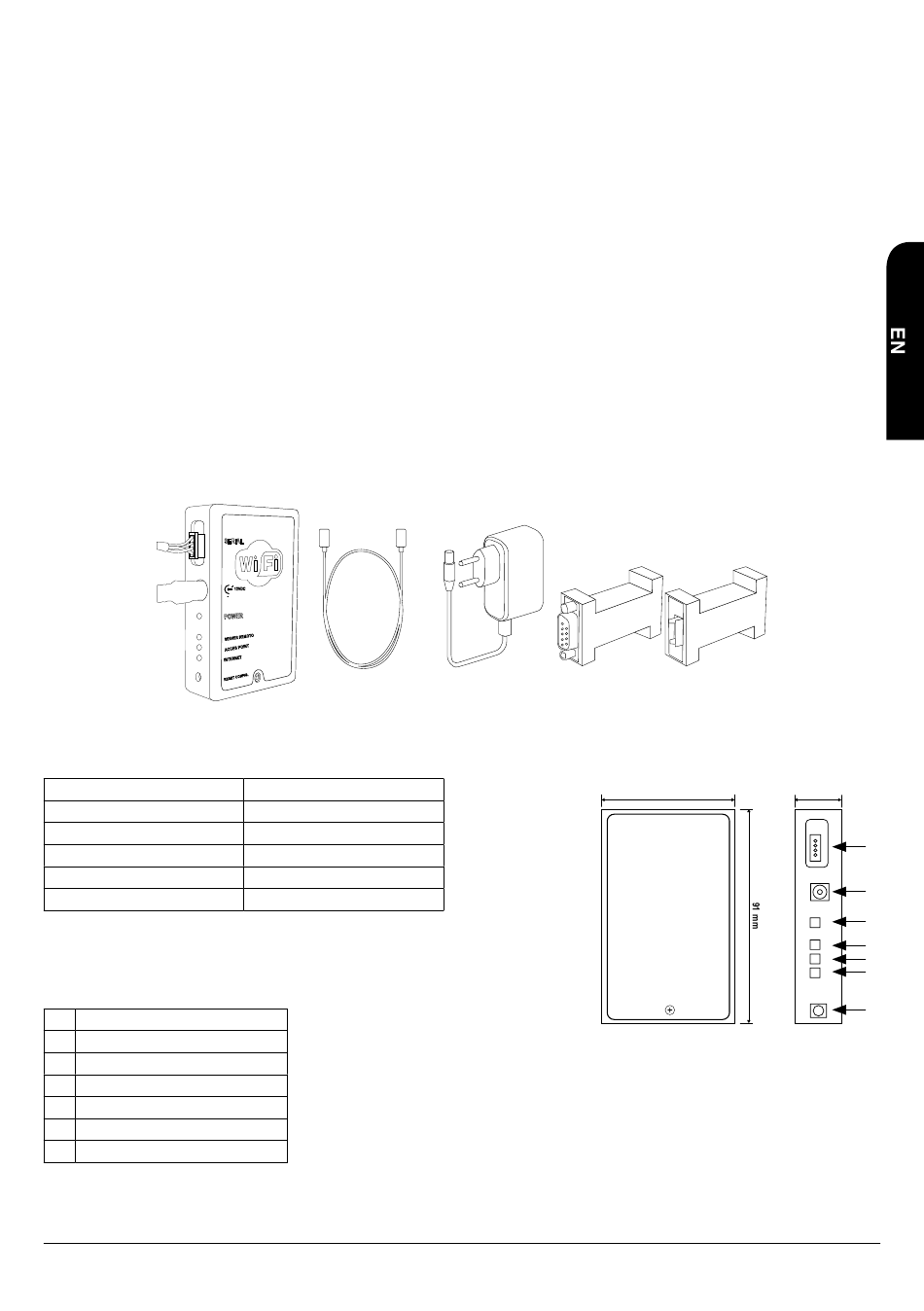

The KIT WIFI module 1 consists of:
- KIT WIFI-1 module: device that connects the electronic plate of the stove with the local wifi network of your router
- Serial cable connection.
- R232 connection adapter.
- Two adhesive strips to fix the module
- Instruction manual for installation and use
WIFI Module
3.

TECHNICALS SPECIFICATIONS

Communication Port
Power Supply
Consumption
Mounting Placement
Working Temperature
Maximum Relative Humidity
4.

MEANING OF THE LED LIGHTS

The following image shows the LED LIGHTS that make up the module:
The meaning of the LED LIGHTS is:
A Communication Port
B Power Supply Connector
C Led Light status (On / Off)
D Led Light status remote server
E Led Light status Access point
F Internet status led light
G Reset module
INSTALLATION, OPERATING AND SERVICING INSTRUCTIONS
Interconnection cable
Serial TTL
12 V CC
0.4 W
Anywhere
Between 0 ºC and 50 ºC
95%
Charger RS232 Adapter
Dimensions:
SERIAL
12VCD
POWER
SERVER REMOTO
ACCES POINT
INTERNET
RESET CONFIG
15
24 mm
58 mm
REMOTE CONTROL WIFI1 MODULE
A
B
C
D
E
F
G
