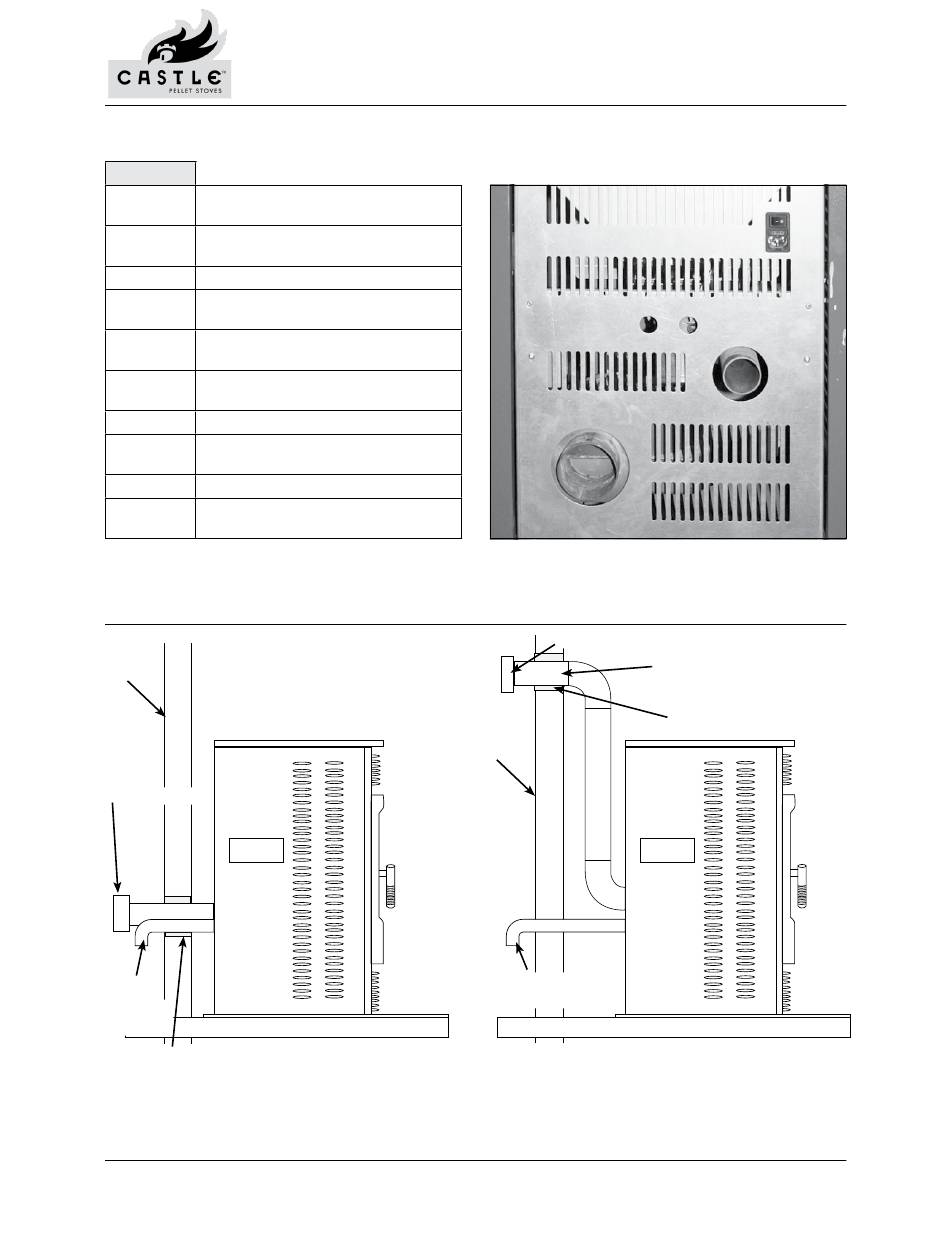

vent termInatIon clearances

clearance
Clearance below or beside any door or
4 feet
window that opens.
Clearance above any door or window that
1 foot
opens.
3 feet Clearance from any adjacent building.
Clearance from any adjacent public
7 feet
walkways.
Clearance above any grass, plants, or other
2 feet
combustible materials.
Clearance from any forced air intake of any
3 feet
appliance.
2 feet Clearance below eaves or overhang.
Clearance horizontally from combustible
1 foot
wall.
3 feet Clearance above the roof.
Clearance above the highest point on the roof
2 feet
within 10 feet.

ventIng InstallatIon examples

wall
termination
fresh air
Inlet
floor
heat resistant
material
Figure 8: Straight Installation--outside, through wall installation
14
Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5 CST
Intake & exhaust posItIons
Figure 7: Intake and exhaust positions
termination
venting pipe
wall
fresh air
Inlet
floor
Figure 9: Straight Installation—inside vertical rise, horizontal
termination
Operator's Manual
HPS10 Pellet Stove
heat resistant
material
