clearances to combustIbles
NOTE: These are minimum clearances to combustible walls established by the asTM testing lab.

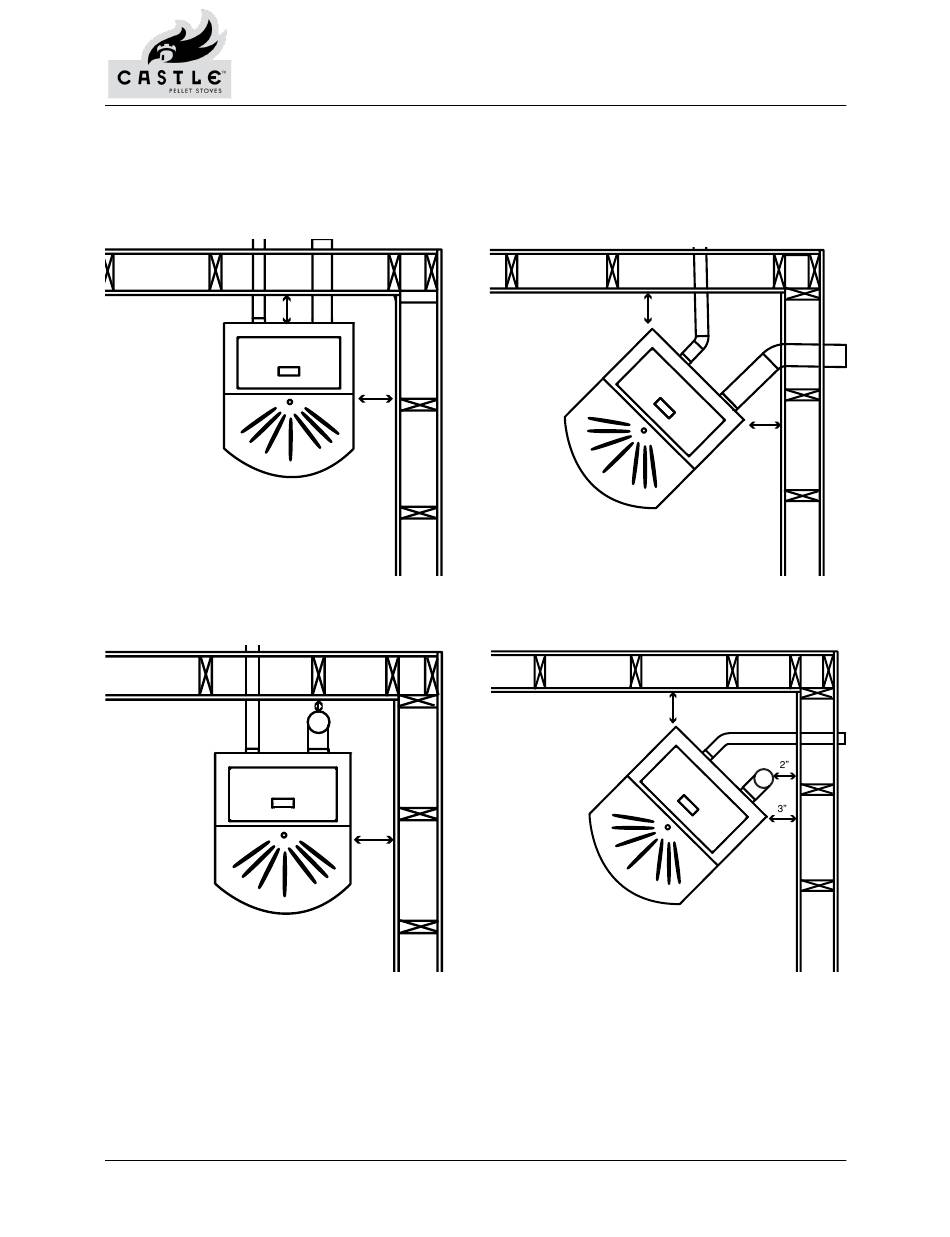

Figure 3: Straight installation through wall
Figure 5: Straight installation interior vertical vents
NOTE: when interior vent is installed vertically, the clearance to the back wall is determined by the vent size
used. install vent at clearance specified by the vent manufacturer. Take into consideration any upward turning
elbows or tees.
12
2"
6"
2"
6"
Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5 CST
3"
Figure 4: Corner installation through the wall vents
3"
Figure 6: Corner installation interior vertical vents
Operator's Manual
HPS10 Pellet Stove
