Operating Settings Configuration

Home Screen

The Net-X II has 2 home screens which display the current status of all ports. The home screen is
displayed when the menu is not being accessed.
To access the menu from the home screen, press the knob. To return to the home screen from the menu,
select 13. Exit and press the knob, or press & hold the control knob for 3 seconds (this can be done from
any position in the Menu map)

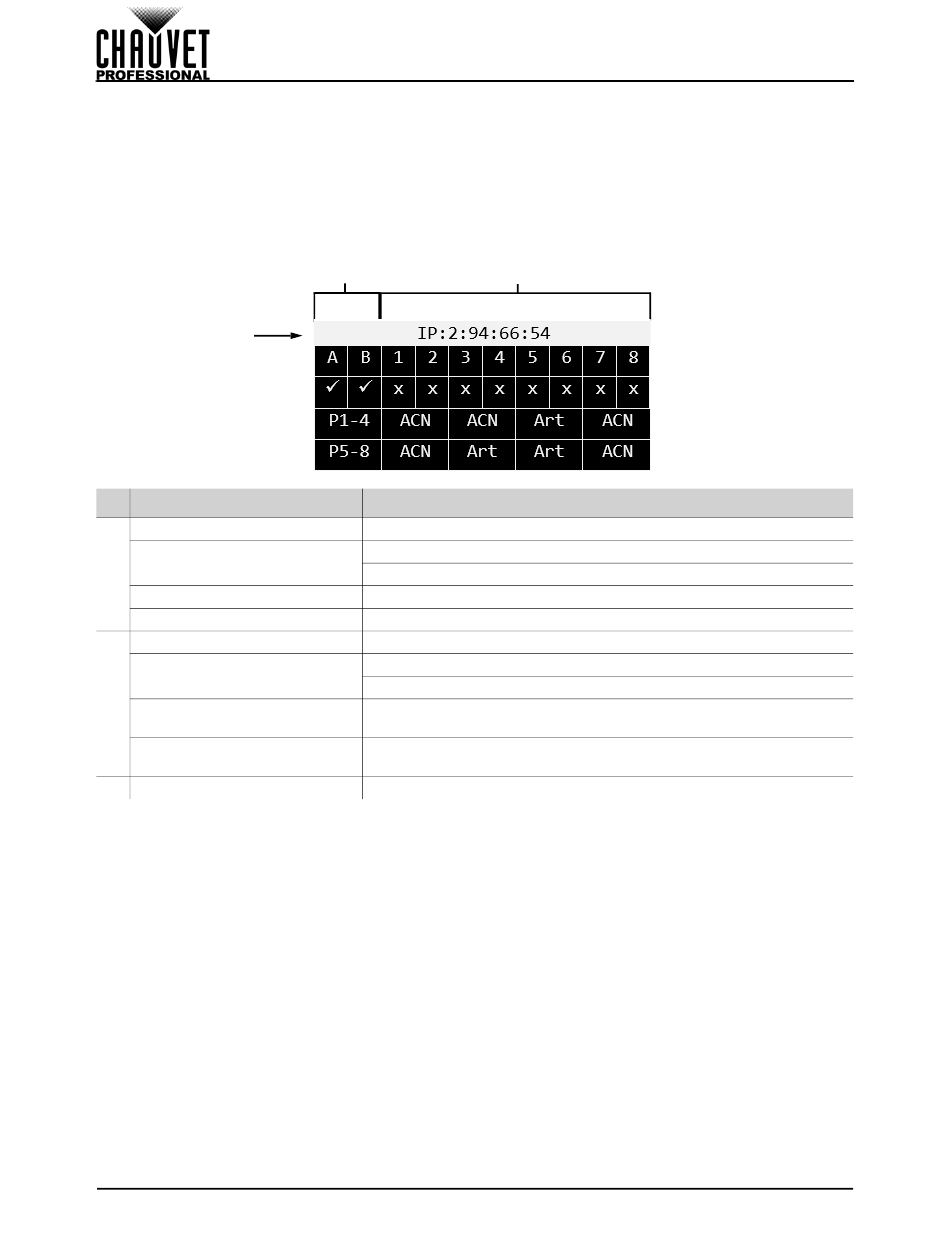

Primary Home Screen

3
# S
YMBOL
A–B
- or x
(EtherNET ports status)
1
P1–4
P5–8
1–8
 or x
(ports 1–8 signal sensor)
2
Art, ACN, or DMX
(Art-Net™, sACN, or DMX)
Art, ACN, or DMX
(Art-Net™, sACN, or DMX)
3 IP:
12
1 2
D
ESCRIPTION
Ethernet in/through ports
x is connected
- is disconnected
ports 1–4 universe label
ports 5–8 universe label
5-pin female port number label (1–8)
 is detecting a signal
x is no signal detected
defines output or input port protocol for outputs 1–4
defines output or input port protocol for outputs 5–8
displays the device IP address
Operation
