INSTRUCTIONS FOR USE
SAFETY INSTRUCTIONS
1. Please keep this instruction sheet safely for future reference.
2. These instructions for use refer only to the seat as a component. The playground device equipped with it must
also meet all the requirements regarding the equipment of public playgrounds.
3. Inappropriate use or faulty application of the product is explicitly forbidden and absolves the manufacturer of all
liability.
4. The product is not suitable for children under the age of three. The use of the item is allowed only under continu-
ous supervision by an adult. This product is suitable for individuals weighing up to 100 kg (max. 600 kg).
5. This product meets all security aspects of the European standards EN 1176-1:2008 & EN 1176-2:2008. This
product is fi t for use in commercial playgrounds, both indoor and outdoor.
6. The application of the item as part of a playframe or any other construction will have to be such that it excludes
all risks of entrapment.
7. The minimum distance from the bottom of the swing seat (when not in use) to the ground surface should be
40 cm.
8. It is not advised to hang several swing seats to one swing construction.
9. The minimum distance between the edge of the seat of the swing and the adjacent construction when not in use
should be no less than 20% of the length of the fl exible connector plus 20 cm.
10. The height of the free fall equals the half of the length of the fl exible connector plus the height of the seat of the
swing when not in use.
11. When mounting or assembling the product, attention should be given that the impact area has the minimum re-
quired distance between the product and eventual obstacles: walls, fencing,... The free falling space should be like
specifi ed by the grey area as shown in FIG I (see last page).
12. In these safety areas no hard, angular or pointed objects should be present. The safety surface underneath the
product must be fl at, and be covered in a suitable way (eg. rubber tiles, bark, wood chips) and meet the require-
ments of EN1176-1:2008. The indicator of the surface level should be the base level mark found on the support-
ing structure of the whole device (e.g. on the pole, pillar etc.). The product must not be placed on asphalt, con-
crete or any other hard surface. There cannot be an overlapping of surrounding free spaces or safety areas.
13. Swing frames or their top bar should only be attached to other equipment where specifi c measures are taken to seg-
regare them from other activities. For example: an additional 150 cm free space, barriers, ...
14. See page 10 and 11 for the assembly:
• Use swing hooks type 817.002 and a minimum beam thickness of 120 mm to attach these swing hooks to.
• The distance between the attachment points at the top must be 1900 mm. Place the safety pins
160 mm away from the main attachment points. The safety chain must be attached to the main swing hook.
15. During installation you should make sure that: the crossbar is placed horizontally, all the screws and fastenings
are tightened, the place of installation is secured and marked. Before the device can be used, the stability of all
the elements should be checked, protection tapes removed and the level and condition of the shock-absorbing
surface checked.
16. Should the device be found to be incomplete or damaged, the construction must be immediately protected and
its use prevented by using a signalizing white and red tape and placing information that the device is damaged.
Until the damage is repaired, the device should be excluded from use by the playground users.
17. The minimum installation space should be within 2 m from the device to be installed.
18. No spare parts are provided with the device. In case of a damage, spare parts can be purchased from the manu-
facturer.
INSPECTION AND MAINTENANCE
The frequency of inspection and maintenance will vary with the type of equipment or materials used or other factors
(e.g. heavy use, levels of vandalism, coastal location, air pollution, age of equipment, ...). The frequency of the
inspection checks should be increased according to the occurrence of special factors. Moving metal parts must be
oiled regularly and threaded joints in shackles should be protected with screw thread glues.
Routine visual inspection (weekly to monthly)
- Always check that the bolts and nuts are securely fastened.
- Check the shock absorbing surface for objects that don't belong there.
- Check for missing parts.
- The surface should be well-maintained, especially the level of loose fi llers (e.g. during routine controls), so that
the surface under the device remains in perfect condition at all times.
Operational inspection (1 to 3 months)
- Check the stability of the construction.
- Check every part for excessive wear and replace when necessary.
Annual inspection (1 to 2 times per year)
- Check for rust and corrosion.
- Check every part for excessive wear and replace when necessary.
2
nest swing 'Oval Pro'
EN
1
14 mm
3
4
19
24

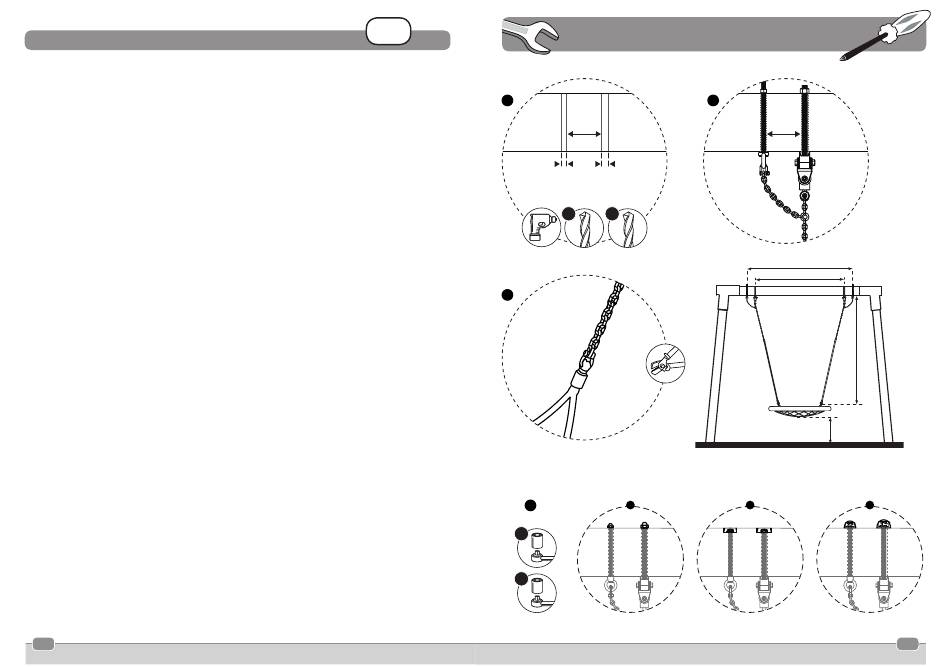

ASSEMBLY - MONTAGE - MONTAJE - MONTAGGIO - MONTAŻ
ASSEMBLY - MONTAGE - MONTAJE
MONTAGGIO - MONTAŻ
2
160 mm
18 mm
14
18
a
Instructions for use - M192.01 - nest swing 'Oval Pro'
160 mm
1900 mm
1580 mm
min.
400 mm
b
c
11
