Sagem FAX ATA 101S Guide D'installation page 13

²

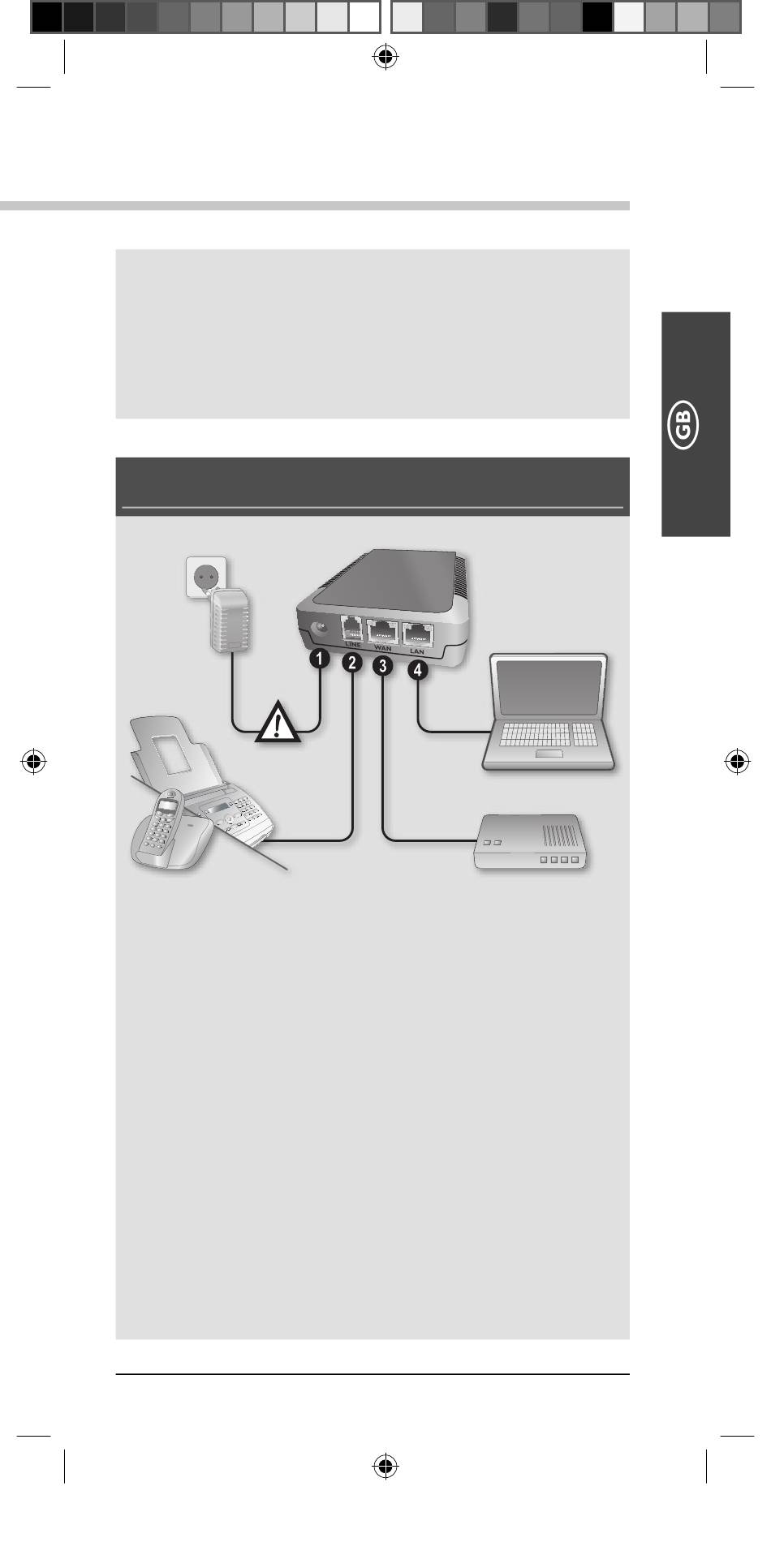

Connections
Æ
‚ Power supply
ƒ LINE—Connection socket for telephone, fax ma-
„ WAN—Connection socket for switch, router or
... LAN—Connection socket for PC (Only for device
²
Installation Guide
101S-easy-install-west-europe-253021959-A.indb 13 01S-easy-install-west-europe-253021959-A.indb 13
Installation Guide
With the installation guide on the following pages,
you can start using your device quickly and easily.
Many confi guration options are available to you with
the web interface of your device. The help-text on
the respective page offers you a detailed description
of the functions.
Only use
(KSAD1200150W1EU). Using an unauthorised pow-
er supply may damage the device.
chine
modem
confi guration!)
The connection via the WAN socket supports dy-
namic allocation of an IP address with DHCP. You
can connect your device directly to the network con-
nection of a computer via the LAN socket, in order to
confi gure the device via the web interface. With this
connection, the device uses a fi xed IP address (factory
setting: 192.168.134.1).
the supplied power supply
13
