3.2. Clamping Systems (according to model)
3.2.1. Classic
Elevation adjustment:
By turning the nut it moves up and down the guide rod.
Tensioning:
The sieve cover has to be installed and both nuts must be screwed down simultaneously.
3.2.2 HAVER TwinNut
Elevation adjustment:
Pull apart the two parts of the nut and slip it on the guide rod up to the sieve cover. Reclose it.
Tensioning:
Tighten the two HAVER TwinNuts simultaneously.
© Copyright 2011 by HAVER & BOECKER

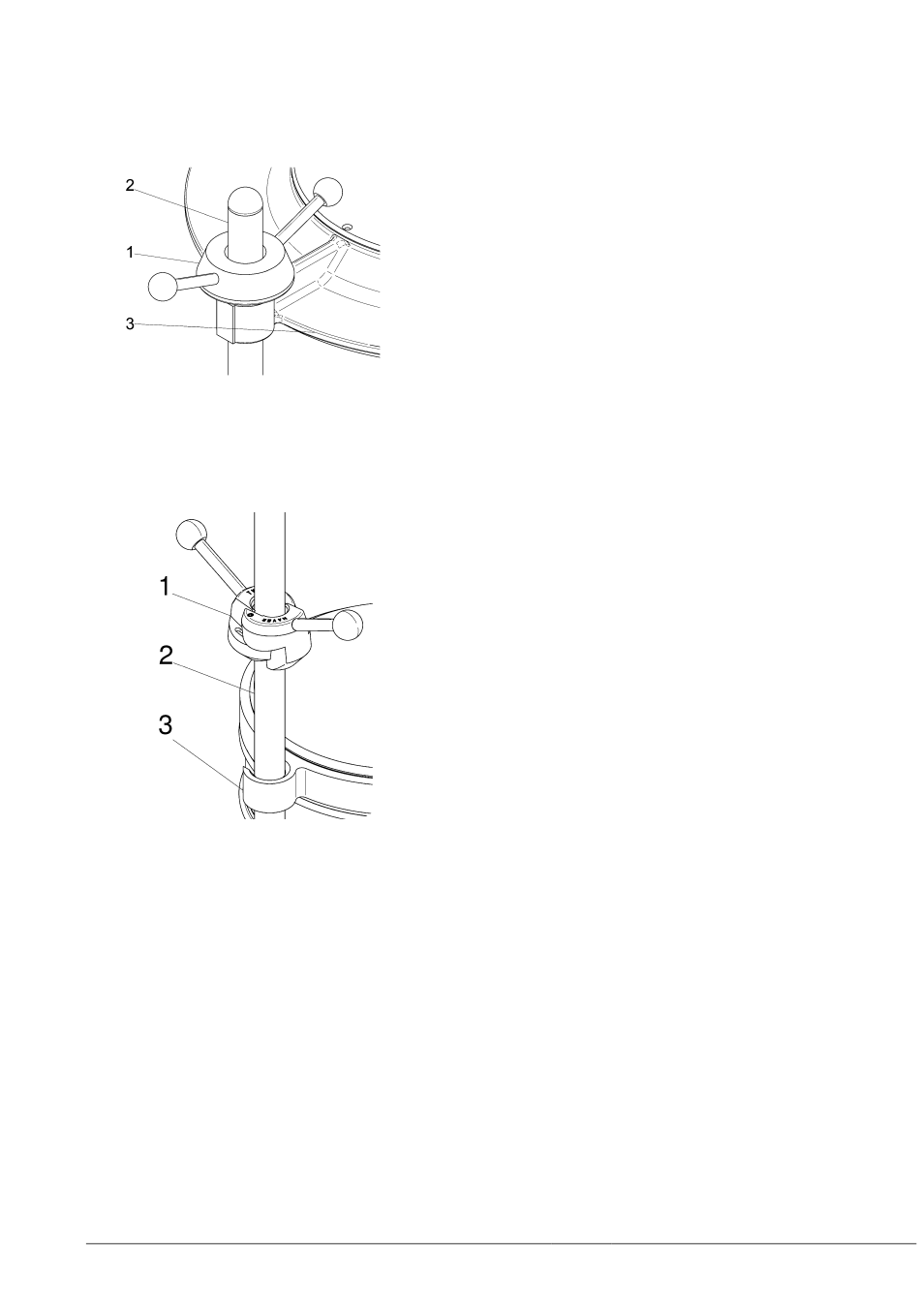

1.
nut with handlebars
2.
guide rod
3.
sieve cover
1.
Nut HAVER TwinNut
2.
Guide rod
3.
Sieve cover
