OVE 2018-07-16
INSTALLATION MANUAL - SHOWER ENCLOSURE
MANUEL D'INSTALLATION - CABINE DE DOUCHE
MANUAL DE INSTALACIÓN - PUERTA DE DUCHA
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 9 am. – 5 pm., HDE, Lunes a Viernes.

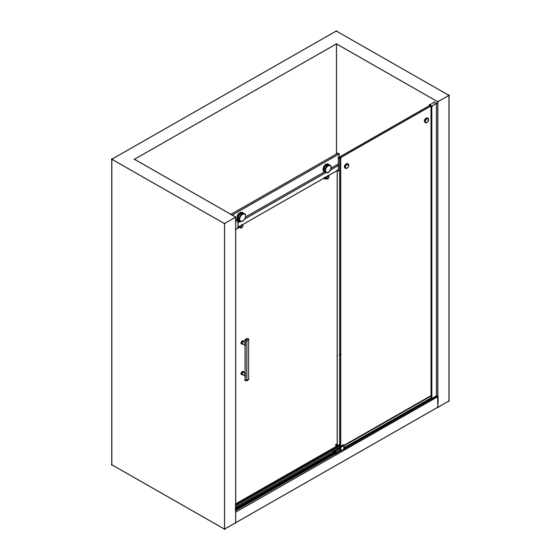

KELSEY 48
PAGE 1

Publicité

Table des Matières
loading

Sommaire des Matières pour OVE KELSEY 48

  • Page 1 KELSEY 48 INSTALLATION MANUAL - SHOWER ENCLOSURE MANUEL D’INSTALLATION - CABINE DE DOUCHE MANUAL DE INSTALACIÓN - PUERTA DE DUCHA Questions, problems, need help? Call our customer service department at 1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday Questions, problèmes ou besoin d’aide?
  • Page 2 DO NOT START WITH THIS INSTALLATION MANUAL 1) FIRST, INSTALL YOUR SHOWER BASE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SHOWER BASE PACKAGE). 2) SECOND, INSTALL YOUR SHOWER SIDE PANEL, IF APPLICABLE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SIDE PANEL PACKAGE). 3) THIRD, INSTALL YOUR SHOWER ENCLOSURE (USING THIS MANUAL).
  • Page 3: Table Des Matières

    TABLE OF CONTENT TABLE DES MATIÈRES TABLA DE CONTENIDOS WALL-TO-WALL DIMENSIONS ............13 TABLE OF CONTENT ................3 TABLE DES MATIÈRES ................3 MESURES MUR-À-MUR ................13 MEDIDAS DE PARED-A-PARED .............13 TABLA DE CONTENIDOS ................3 SAFETY INFORMATION ................4 WALL TRACK INSTALLATION ..............14 INSTALLATION DE LA GLISSIÈRE ............14 INFORMATION SUR LA SÉCURITÉ...
  • Page 4: Safety Information

    SAFETY INFORMATION INFORMATION SUR LA SÉCURITÉ INFORMACIÓN DE SEGURIDAD CAUTION Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while handling this product. To minimize these risks, please note: • Always wear safety glasses and gloves while handling.
  • Page 5: Safety Notice

    SAFETY NOTICE AVIS DE SÉCURITÉ AVISOS DE SEGURIDAD NOTICE • Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. • The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water damage. •...
  • Page 6: Package Content

    PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 6...
  • Page 7 PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 7...
  • Page 8: Part List

    PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO Wall track Satin Nickel / Satiné / Satinado: 99STR1020-WM Glissière Matt Black / Noir Mat / Negro Mate: 99STR3635-WM Riel de la pared Fixed panel Satin Nickel / Satiné...
  • Page 9: Supplied Hardware List

    SUPPLIED HARDWARE LIST QUINCAILLERIE FOURNIE CONTENIDO DE HARDWARE Wall Anchor Screw Screw Screw Ancrage mural Capuchon Tarugo Tornillo Tornillo Tornillo Capuchón ø8x30mm ST5x30mm ST4x20mm ST4x12mm Fitting Screw Allen key Raccord Capuchon Capuchon Clé Allen Accesorio Tornillo Capuchón Capuchón Llave Allen ST5x35mm 2mm &...
  • Page 10: Reversibility

    REVERSIBILITY RÉVERSIBILITÉ REVERSIBILIDAD This instruction is drawn up for a door opening from right to left (see illustration A). For an installation for a door opening from left to right (see illustration B), use the same instructions, but switch around the panels: mirror effect. Utilisez ces instructions pour une ouverture de la porte de droite à...
  • Page 11: Shower Dimensions

    SHOWER DIMENSIONS DIMENSIONS DE LA DOUCHE DIMENSIONES DE LA DUCHA Measurements Mesures Medidas 32”[813] Base depth Profondeur de la base 48”[1219] Profundidad del plato Base width Largeur de la base Anchura de la base Shower height Hauteur de la douche Altura de la ducha Shower width Largeur de la douche...
  • Page 12 BASE INSTALLATION: OVERVIEW INSTALLATION DE LA BASE: UN APERÇU INSTALACIÓN DEL PLATO: VISIÓN GENERAL A. Before you start the installation of your shower base, consult the illustration A below showing a side-view of the completed installation. B. Illustration B shows the recommended wall structure and measurements for the shower base installation. NOTE: Customer must follow and comply with the local and national building and plumbing code.
  • Page 13: Wall-To-Wall Dimensions

    WALL-TO-WALL DIMENSIONS MESURES MUR-À-MUR MEDIDAS DE PARED-A-PARED • Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit your space to install the shower panels. • Make sure to have a distance tile to tile (D) between 1162mm (45 3/4 in) min. and 1178mm (46 3/8 in) max. (see image).
  • Page 14: Wall Track Installation

    WALL TRACK INSTALLATION INSTALLATION DE LA GLISSIERE INSTALACIÓN DEL RIEL DE PARED A-B. Position the wall track (A) as illustrated. Level the track (A) and mark the track holes positions. C. Remove the track and drill pilot holes in the marked locations with a ø5/16” (8mm) drill bit. D. If there are no studs located behind the wall track (A), then insert the wall anchors (AA) using a rubber mallet until the wall anchors are flush with the wall.
  • Page 15: Fixed Panel And Support Bar Installation

    FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Insert the fixed panel bottom seal strip (L) on the base of the fixed panel (B). B. Insert the fixed panel (B) into the wall track (A). Do not fully tighten it as further adjustments may be required. Note: The wall track (A) allows you to adjust the position of the fixed panel (B). Adjusting the depth and/or giving the glass panel a slight angle allows for precise alignment with the door.
  • Page 16 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Slide the 2 stoppers (D) and the 2 support bar anchors (C) onto the support bar (E). B. Loosely mount the support bar (E) onto fixed panel (B) using the brackets (F) and level it.
  • Page 17 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Completely remove the guide (O) and the support bar (E). C. Completely remove the fixed panel (B). D. Mark the positions of holes of the sliding door guide (O). A-B.
  • Page 18 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Drill a pilot hole for the sliding door guide (O) using a ø1/8” (3mm) drill bit. B.
  • Page 19 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Place the fixed panel (B) into the wall track (A) and put back the sliding door guide (O). C. Slide again the roller stoppers (D) and the support bar anchors (C) onto the support bar (E). Then fix the support bar to the wall. D-E. Fix the fixed panel (B) onto the support bar (E) using the brackets (F). Secure the support bar (E) on their anchors using the provided hex screws. Install the aluminum profile (S) between the roller stopper and support bar anchor. Position the roller stopper (D) right after the aluminum profile (S) and fix the stopper in place using the hex screws. A-B. Placez le panneau fixe (B) dans la glissière (A) et replacez le guide de porte (O). C. Glissez à nouveau les buttées (D) et les ancrages (C) sur la barre de support (E). Montez la barre au mur. D-E. Installer le panneau fixe (B) sur la barre de support (E) en utilisant les raccords (F). Fixez la barre de support (E) sur ses ancrages grâce aux vis fournies.
  • Page 20: Shower Door Installation

    SHOWER DOOR INSTALLATION INSTALLATION DE LA PORTE DE DOUCHE INSTALACION DE LA PUERTA DE DUCHA A. Install the 2 door rollers (G) on the door panel (I). B. Insert the door bottom seal strip (M) onto the door panel (I). C.
  • Page 21: Leveling The Glass Panel

    LEVELING THE GLASS PANEL NIVELAGE DU PANNEAU DE VERRE NIVELANDO EL PANEL DE CRISTAL After the wheels have been installed, adjust the level of the glass panel using the eccentric mechanism of the rollers. Fit the bigger Allen key in the center of the inner roller, hold it in place, do not turn it, as it will loosen the wheel.
  • Page 22: Seal Strips Installation

    SEAL STRIPS INSTALLATION INSTALLATION DES BANDES D’ÉTANCHÉITÉ INSTALACIÓN DE LAS TIRAS DEL SELLO A-C. Install the 2 short seal strips (J) onto the glass panels. Install the 2 glass panel vertical seal strips (N). Install the door vertical seal strip (P) on the closing end.
  • Page 23: Handle Installation

    HANDLE INSTALLATION INSTALLATION DE LA POIGNÉE INSTALACIÓN DE LA MANIJA A-B. Using silicone, install the decorative track (R) in front of the door panel. Slide the decorative caps (Q) onto the track. C-D. Fix the fixed panel (B) by drilling guide holes through the wall tracks (A) and screwing it in place using fittings (FF), screws (DD) and caps (EE). E. Install the handle (K). A-B. Installez le rail décoratif (R) à l’avant de la porte en utilisant du silicone. Glisser les embouts décoratifs (Q) sur le rail. C-D. Fixez le panneau fixe (B) en perçant les trous de guidage à travers la glissière (A) et en le vissant en place à l’aide des raccords (FF), des vis (DD) et des capuchons (EE).
  • Page 24: Sealing

    SEALING SCELLAGE SELLADO Ensure that the door closes tightly and opens smoothly. Ensure that there is a firm connection between the fixed panel(s) and the support bar. Apply a clear silicone water sealant around the outside perimeter of any fixed shower components. Allow 24 hours for silicone to dry. Improper application of silicone sealant may cause your shower to leak. Assurez-vous que la porte se ferme totalement et s’ouvre en douceur, et qu’il existe une connexion ferme entre le(s) panneau(s) fixe(s) et la barre de support. Appliquez un joint de silicone transparent autour du périmètre extérieur de tout composant fixe de la douche. Laisser sécher 24 heures pour que le silicone sèche et adhère. Une application incorrecte du silicone peut provoquer une fuite de votre douche. Asegúrese de que la puerta esté completamente cerrada y se abrió sin problemas, y hay una conexión firme entre el conjunto(s) placa(s) y la barra de soporte. La aplicación de un sellador al agua de silicona transparente alrededor del perímetro exterior de cualquier ducha fija componente. Deje secar durante 24 horas para las curas de silicona y se adhiere. La aplicación inadecuada de sellador de silicona puede causar una fuga de su ducha. 24H! PAGE 24...
  • Page 25: Care And Maintenance

    CARE AND MAINTENANCE TRAITEMENT ET ENTRETIEN CUIDADO Y MANTENIMIENTO For the daily maintenance, use a wet cloth and a soft liquid cleaner. Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which can graze or tarnish surfaces.
  • Page 26: Limited Product Warranty

    Modification de produit : OVE se réserve le droit de changer, de modifier ou d’améliorer les produits sans être tenue d’incorporer ces modifications aux produits vendus ou installés précédemment. Autorité et modification : Le vendeur au détail n’est pas le représentant d’OVE et n’est pas autorisé à modifier ou à changer les modalités de la garantie limitée. De plus, le détaillant ne peut lier OVE ni faire de représentation ou de promesses à...
