The Klein Tools VDV Scout
troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides tone generation
for cable tracing. The VDV Scout
hub blink testing, and traces up to 19 locations (up to 5 locations with included remotes, additional
remotes available separately).
Dimensions: 6.5" x 3.0" x 1.6" (16.5 x 7.6 x 4.1 cm)
•
Weight: 11 oz. (312 g) with battery and remote
•
Operating Temperature: 32° to 122°F (0° to 50°C)
•
Storage Temperature: -4° to 140°F (-20° to 60°C)
•
Humidity: 10% to 90%, non-condensing
•
Maximum Voltage (between any two connector
•
pins without damage):
- RJ Jack: 66V DC or 55V AC
- F-Connector: 66V DC or 55V AC
To ensure safe operation and service of the tester, follow these instructions. Failure to observe these
warnings can result in severe injury or death.
The PoE jack, located on the right side of the Scout
•
Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout
•
inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic
housing of the plug. Plugging 6-position plugs into the 8-position jack on the tester has the potential to
damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.
Warning or Caution
Always wear approved eye protection
Conformité Européenne - Conforms with European Economic Area directives
This symbol indicates that equipment and its accessories shall be subject to a separate
collection and correct disposal
RJ45 Port: Data cable, Ethernet cable, Cat5e, Cat6, Cat6a, Cat7, Cat7a.
F-Connector Port: Video cable, coaxial cable, RG6/RG6Q cable, RG59 cable.
RJ11/12 Port: Voice cable, POTS (plain old televoice service) cable, 4-wire cable, 6-wire cable,
2 twisted pair cable, 3 twisted pair cable, Cat3.
VDV SCOUT
PoE port*
RJ45 port*
*The RJ jacks share internal connections so only one RJ cable can be connected at a time for accurate cable
test results. However, an RJ cable and a coax cable may be connected at the same time. In ID mode, all
connectors on the VDV Scout
2
ENGLISH
GENERAL SPECIFICATIONS
Pro 3 is a portable voice-data-video cable tester. It tests and
TM
Pro 3 also measures cable length, tests for shield, performs
TM

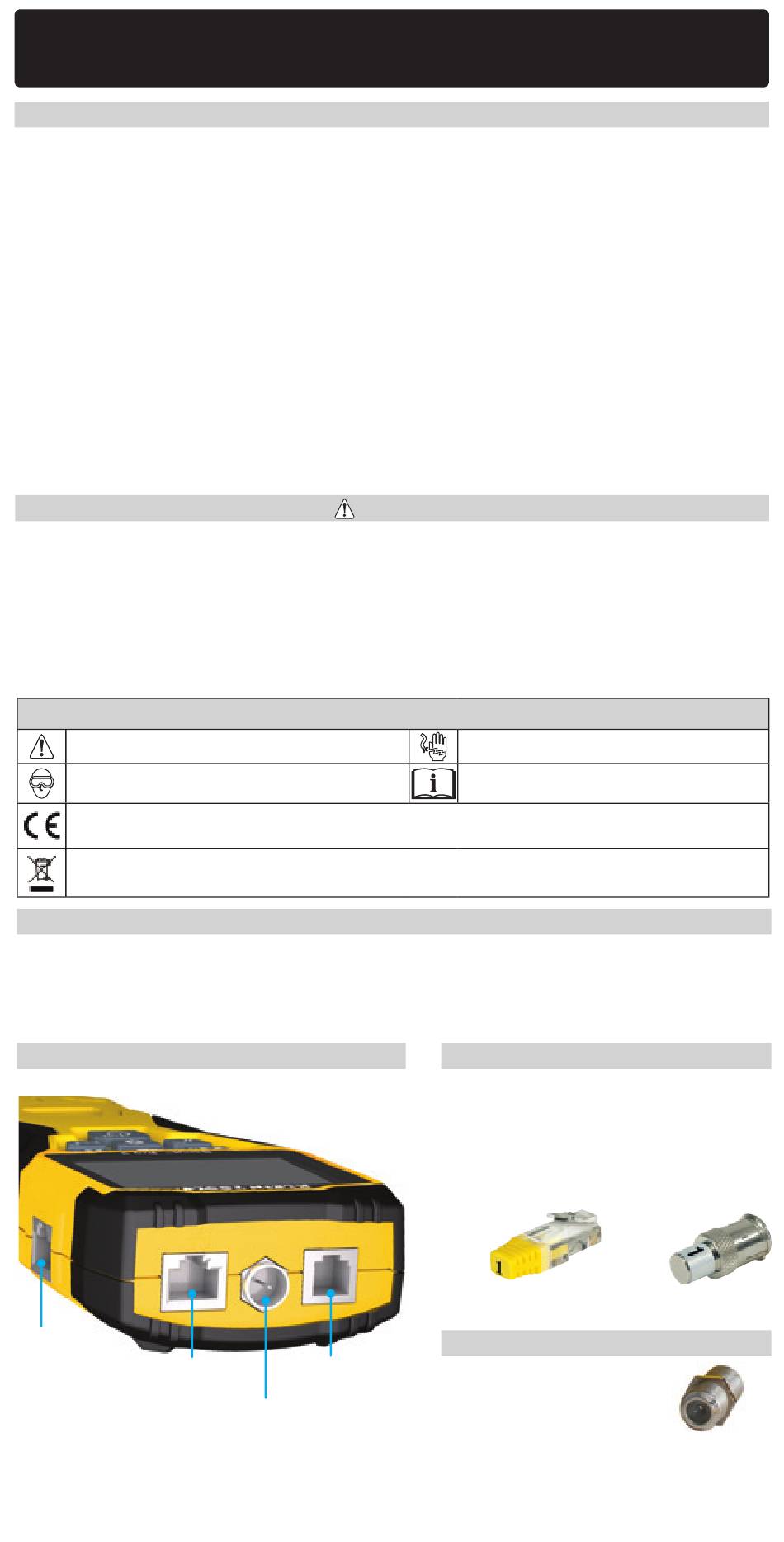

SYMBOLS ON TESTER
PORTS AND REMOTES OVERVIEW
PRO 3 TESTER
TM
RJ11/12 port*
F-connector port
Pro 3 may be connected at the same time.
TM
Battery Life (9V alkaline):
•
- Standby: 4 years
- Active: 50 hours (without backlight)
Cable Types: Shielded or unshielded; Cat7a, Cat7,
•
Cat6a, Cat6, Cat5e, Cat3, Coaxial
Length Measurement Method: Capacitance
•
Length Measurement Range:
•
1.5 ft to 1,999 ft. (0.5 m to 610 m) with 15pF/ft
Length Accuracy: (5% ft.) or (5% m)
•
Length Constant Range:
•
10pF/ft. to 40pF/ft. (33pF/m to 132pF/m)
WARNINGS
Pro 3 is the only jack designed for PoE energized cables.
TM
Do NOT use on energized circuits
Read instructions
Use for cable location identification mapping.
Set #1–5 included with VDV500-851, set #1–18
included with VDV501-852 and sold separately.
LanMap™
Location ID Remote**
VDV526-055
RJ45
connector
**Cannot be used to perform wire map or
cable length tests.
Barrel Connector
VDV814-609
Female-to-female F-connector
Use with F-connector port
Pro 3. Visually
TM
LOCATION ID REMOTES
CoaxMap™
Location ID Remote**
VDV512-056
F-connector
CONNECTORS
