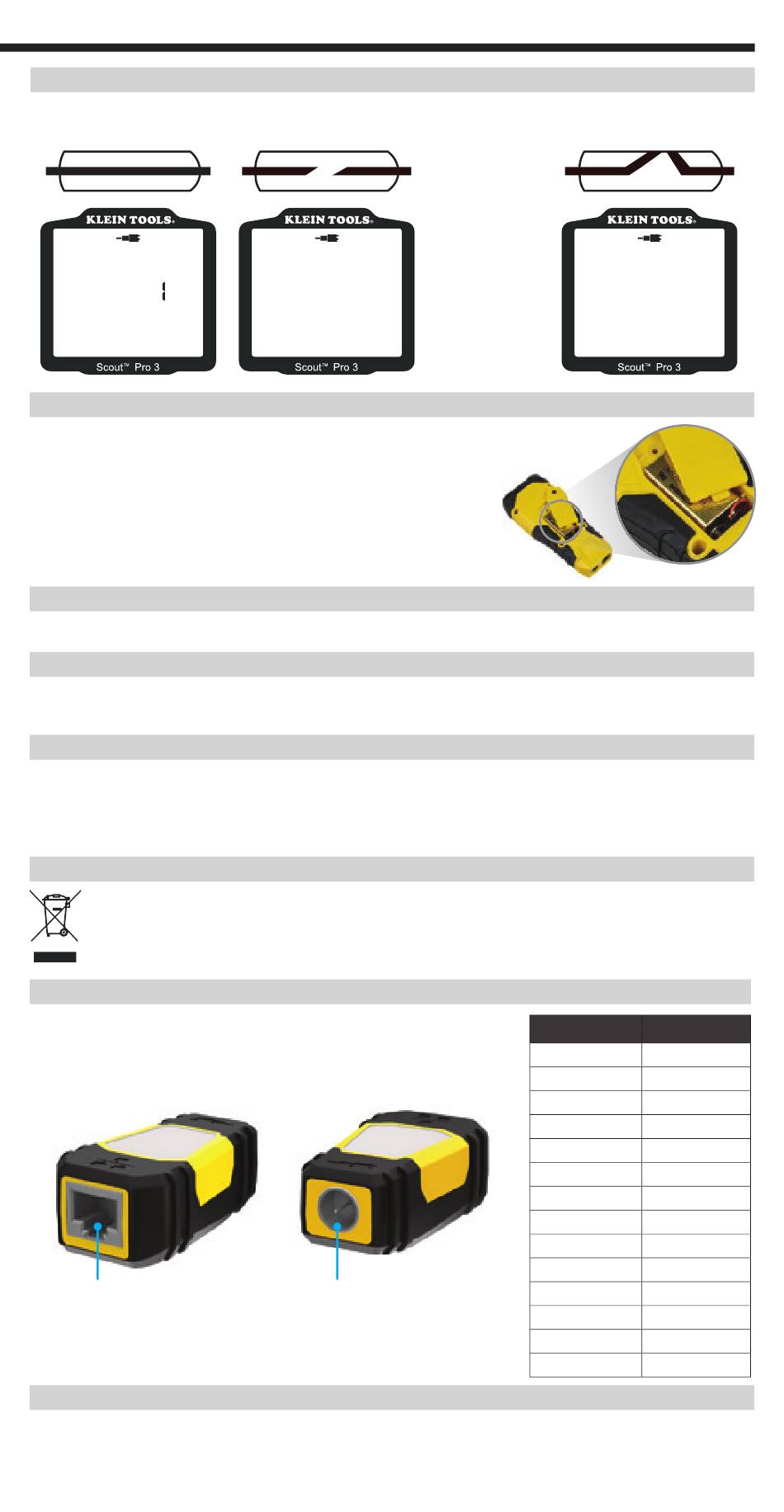

Klein Tools VDV Scout Pro 3 Manuel D'utilisation page 11

COAX CABLE PROPERLY WIRED:
Pass
ID
1. Loosen screw ion battery cover with No. 2 Phillips screwdriver.
2. Remove the battery door.
3. Disconnect the battery cable and recycle the exhausted battery.
4. Install a fresh 9-volt alkaline battery.
5. Battery should be installed with the connection towards
the bottom of the tester, as shown.
6. Replace battery door and secure with a screw,
taking care not to over-tighten.
Turn instrument off and disconnect any cables. Clean the instrument by using a damp cloth.
Do not use abrasive cleaners or solvents.
Remove the batteries when instrument is not in use for a prolonged period of time. Do not expose
to high temperatures or humidity. After a period of storage in extreme conditions exceeding the
limits mentioned in the Specifications section, allow the instrument to return to normal operating
conditions before using it.
Do not place equipment and its accessories in the trash. Items must be properly disposed
of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org
for additional information.
TEST + MAP™ ID REMOTES (VDV501-2## SERIES)
Use for cable location identification mapping and continuity testing.
Remotes display on tester as Remote IDs #1-12.
RJ45 port
WIRE MAP AND DISPLAY EXAMPLES
COAX CABLE WITH AN OPEN:
Open
BATTERY REPLACEMENT
WARRANTY
www.kleintools.com/warranty
CLEANING
STORAGE
DISPOSAL / RECYCLE
UPGRADE/REPLACEMENT REMOTES
F-connector port
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street Lincolnshire, IL 60069
www.kleintools.com
NOTE: An
open fault
will also
occur when
no remote is
connected to
the satellite
end of a video/
coax cable.
2–6
1-800-553-4676
COAX CABLE WITH A SHORT:
Short
REMOTE ID # PART #
1 VDV501-211
2 VDV501-212
3 VDV501-213
4 VDV501-214
5 VDV501-215
6 VDV501-216
7 VDV501-217
8 VDV501-218
9 VDV501-219
10 VDV501-220
11 VDV501-221
12 VDV501-222
2–6 VDV770-850
7–12 VDV770-851
