English
The supply connection socket must be accessible after
installation.
Due to the heat radiation of the device, the surface on
which the device is installed can darken in colour.
NOTE
Installation on wooden walls is permissible.

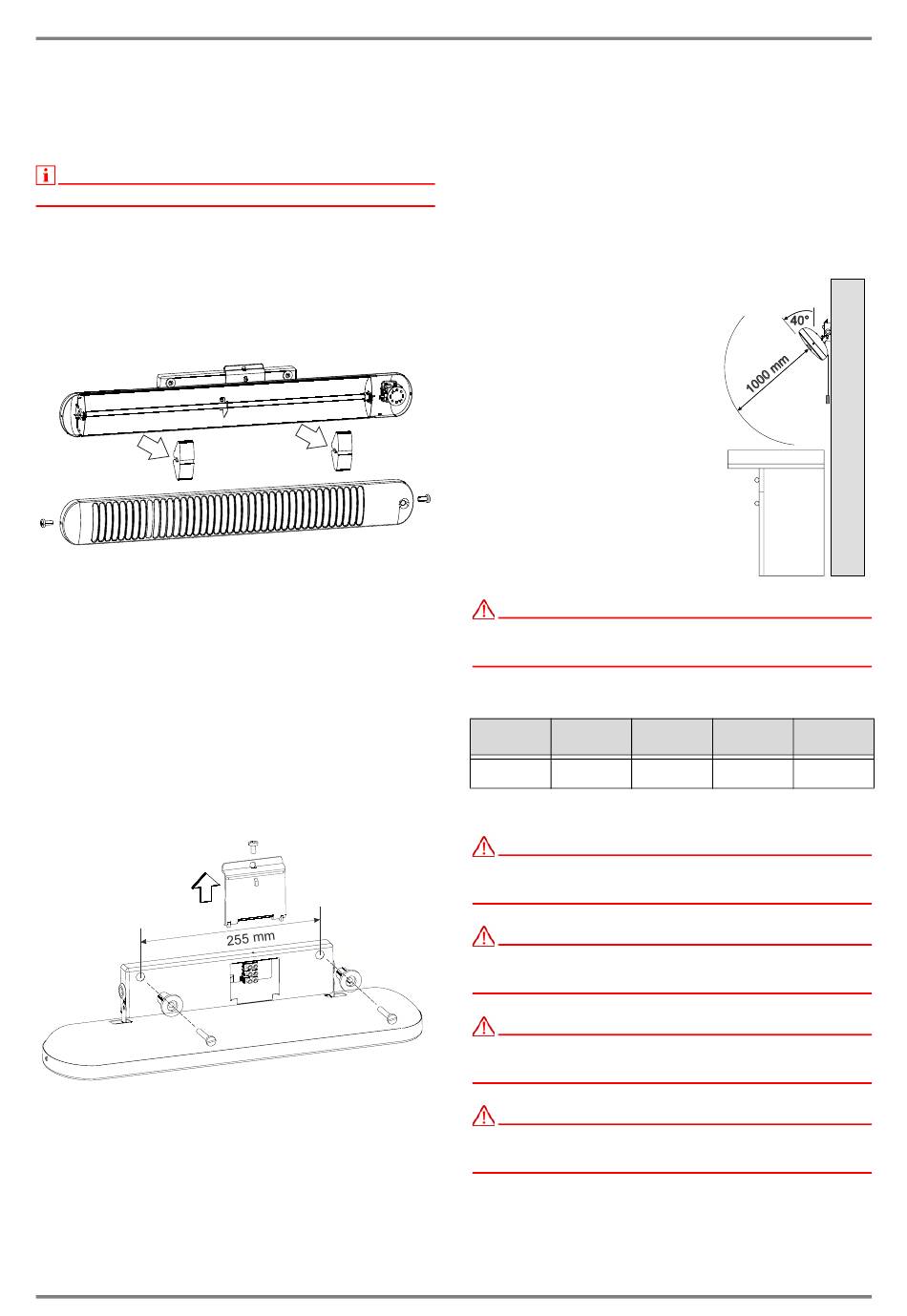

Remove transport fastening

Loosen the front grill screws (A) and remove the
front grill.

Remove the transport fastenings (B) from the heat-
ing elements.
 Re-attach the front grill.
B
A
3. Wall mounting
To achieve the stipulated minimum installation height
of 1.8 metres, the mounting holes for the wall holder
must be drilled at a height of 1.9 metres.
 Loosen the screw on the connection compartment
cover and remove the cover.

Fold the radiator forward.

Mark and drill the mounting holes on a vertical wall
and insert dowels.

Insert spacers with screws into the openings of the
wall holder and screw the device into place.
EN-6
4. Electrical connection
The voltage specified on the type plate must match the
mains voltage.
The supply cable must not be laid in the radiation area
of the heating device and must not be in contact with
the device's casing.
Insert the plug in the socket. The plug must always be
accessible in case of emergencies.
5. Operation
The desired heating level can
be set by pulling the cord switch
once or repeatedly.
The set heating level can be
read in the display window.
In position 0, the heating device
is switched off.
The radiator heats the objects or
B
persons upon which/whom it is
A
directed without also directly
heating the indoor air.
The radiator can be tilted down-
wards by a maximum of 40°.
ATTENTION!
Adjustments may only be made when the de-
vice is fully cooled. Danger of burns!
Power output in switch position
Type
BY 802 S
W = output power in watts.
ATTENTION!
Exposure to the device's radiation must not
exceed 15 minutes
ATTENTION!
Small children must be prevented from look-
ing directly at the radiator!
ATTENTION!
Small children with high body temperatures
must not be exposed to the device's radiation.
ATTENTION!
Children must be kept at least 100cm away
from the radiator.
1807/B
Display 0 Display 1 Display 1
Off 300 W 300 W
www.dimplex.de/en
BY 802 S
Display 2
600 W
