The remote control system

Here you get an overview of the remote control system of your XciteRC Rocket 65XS and its various features
and settings. Before the first flight, you should absolutely have read and understood all these functions and
EN
settings.
• Do make sure that the transmitter is turned off - POWER-LED off.

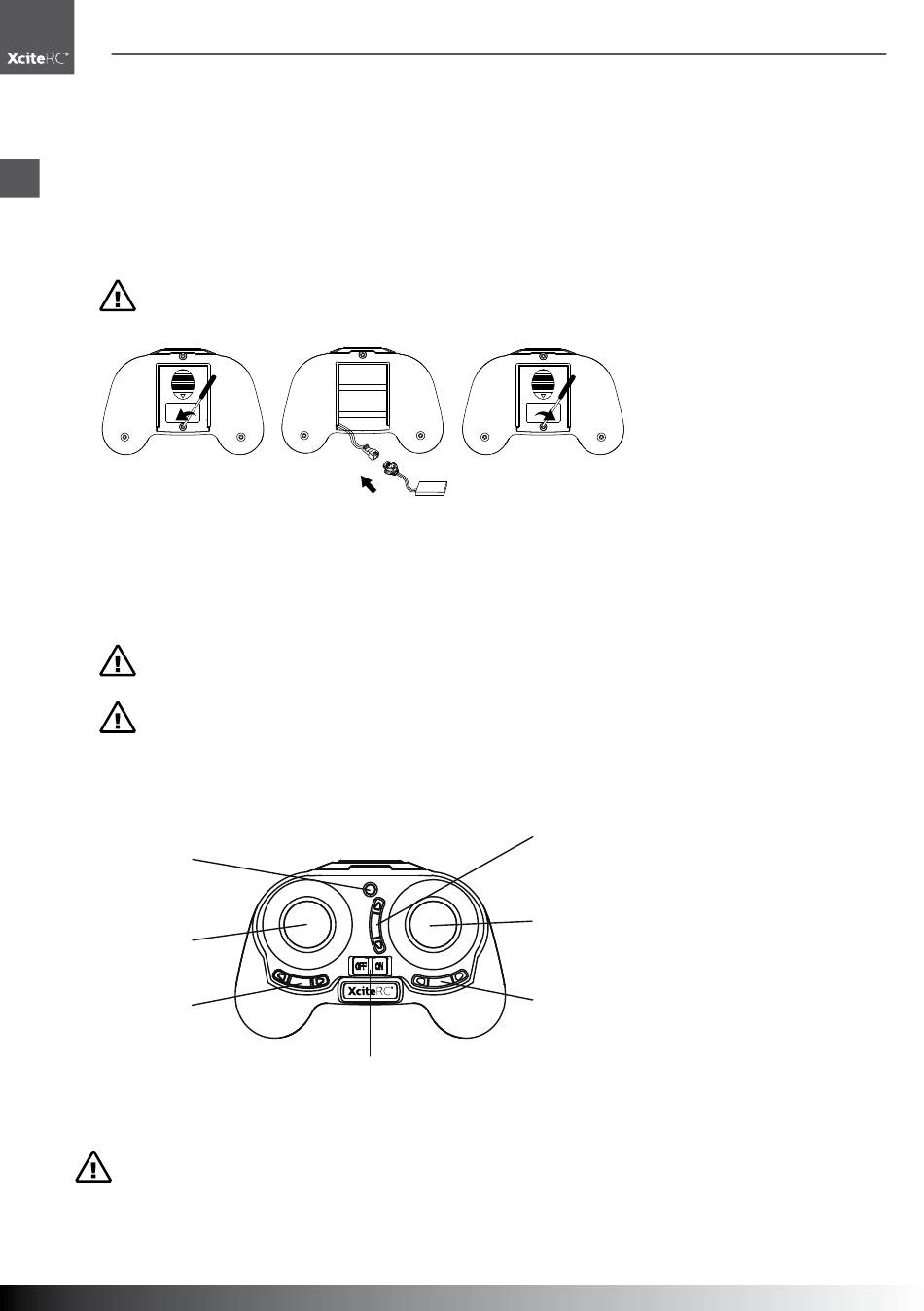

• Now open the battery compartment cover on the backside of the transmitter. Remove the srew and slide
the cover down (1).
• Insert one of the two supplied LiPo batteries to the transmitter jack (2).
• WARNING: The battery is polarized. Check the side channels. Do not use force - fire or explosion
hazard!
• Close the battery compartment cover, then turn on transmitter – push ON / OFF switch to the right.
• When the POWER LED is flashing, move the left throttle lever to the top position, then back to the bottom.
The POWER LED will light constantly. This safety circuit prevents the rotor may start after turning on the
Quadrocopter.
• The POWER LED must lit. Attention: if the POWER LED flashes or does not light at all, the model may
not started – crash hazard! Change transmitter batteries immediately.
• WARNING: check the POWER LED also during operation. If the POWER LED starts to blink, stop
operation, switch the model off and replace the transmitter batteries – crash hazard!
• ATTENTION: The maximum range of the remote control system is about 25 meters, do not fly
farther away under any circumstances! If the XciteRC Rocket 65XS gets out of range, the fail-safe function
is activated and turns off the motor.

Transmitter

POWER-LED
Throttle lever/yaw
Trim yaw

Battery charging

WARNING: Be sure to read all safety instructions regarding the use of rechargeable batteries. Charging
may take place only with the supplied charger on a fireproof surface and under constant adult supervision -
fire or explosion hazard!
16
The remote control system · Battery charging
ON/OFF switch
Trim
forward/reverse
Direction lever
forward/reverse
left/right
Trim
left/right
