Assembly of the landing skid

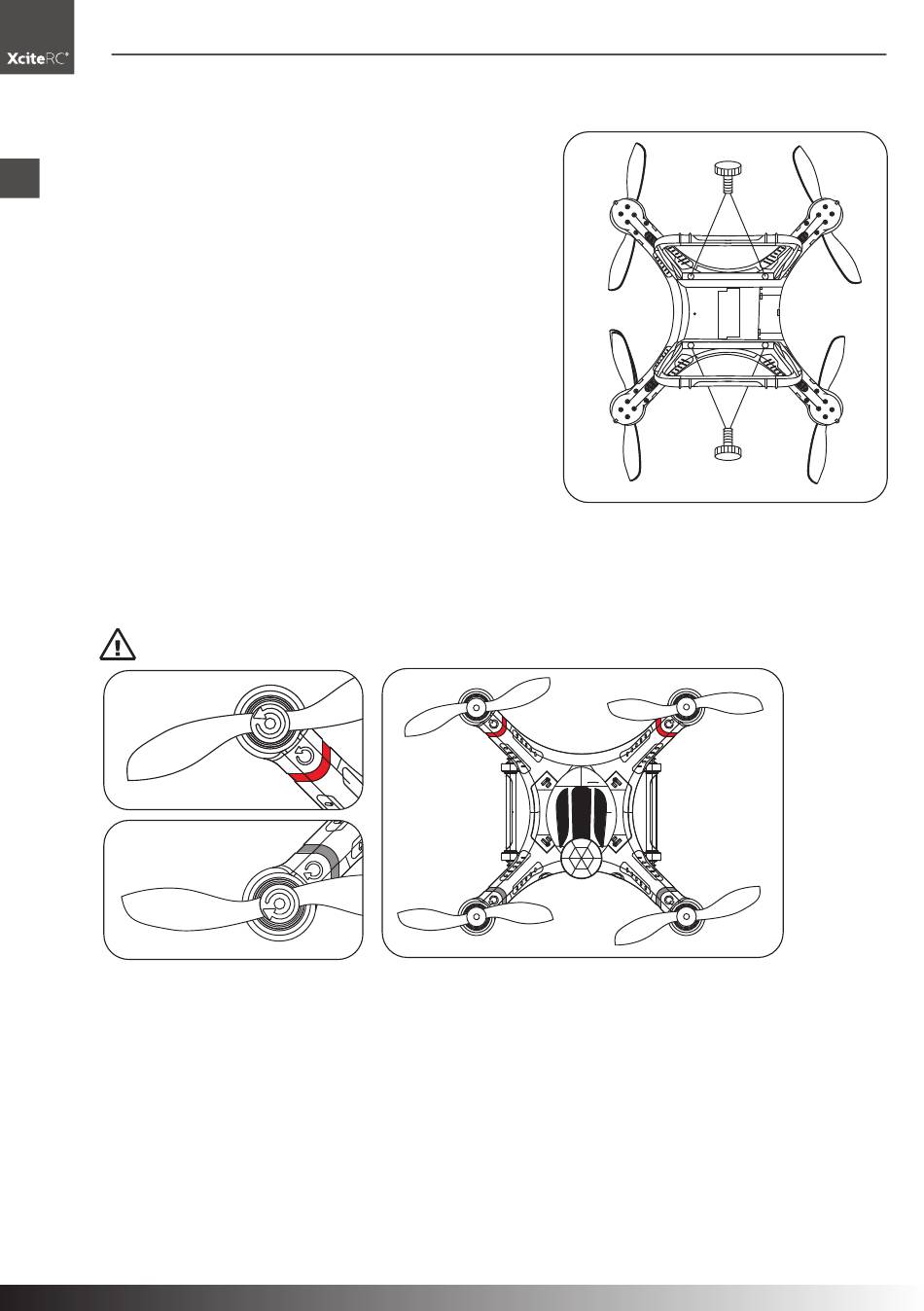

1. Place the landing skid on the designated positions and
lock with the accompanying screws. Mind the antenna, it
EN
has to be placed in the notch of the landing skid – do not
pinch!
2. Fix the antenna with double-sided adhesive tape in the
landing skid (see figure).

Assembly of the propeller

1. The arrow of the propeller has to point upwards. Mind that the running direction on the Quadrocopter
pipes, and the running direction of the propeller have to be identical (see figure)
2. Fasten the propeller with the appropriate nut, silver for clockwise motors, black for counter-clockwise
motors.
WARNING: Tighten the nut firmly – danger of falling!

The remote control system

Here you get an overview of the remote control system of your XciteRC Rocket 400 GPS and its various fea-
tures and settings. Before the first flight, you should absolutely have read and understood all these functions
and settings.
• Do make sure that the transmitter is turned off - POWER-LED off.
• Now open the battery compartment cover on the backside of the transmitter, therefore slide the cover
down (1). Insert four AA batteries into the battery compartment of the transmitter (2). Pay attention to the
correct polarity!
