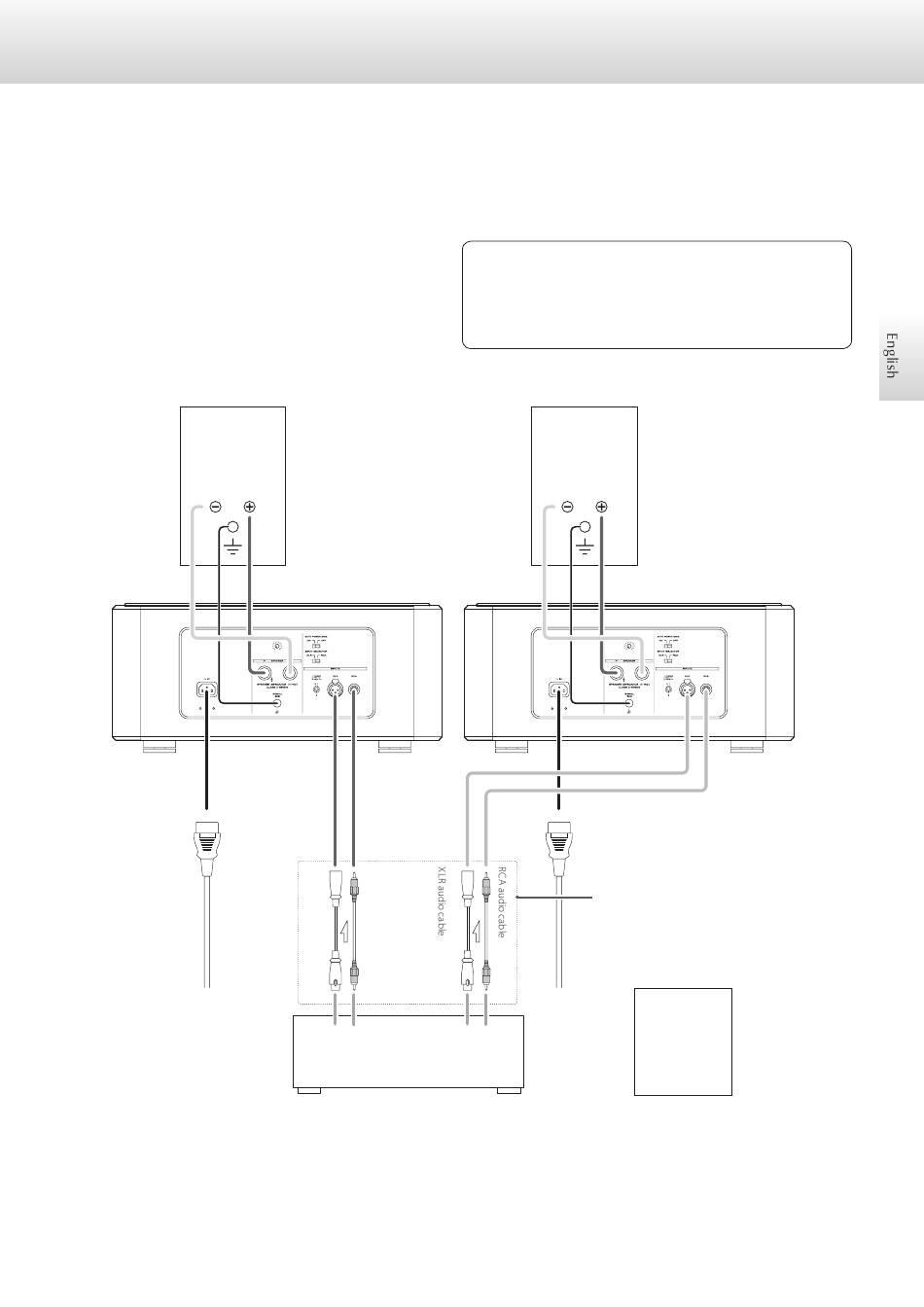

Connections

V Precautions when making connections
Complete all other connections before connecting power plugs to power outlets.
Always turn the power off before disconnecting anything.
Read the owner's manuals of all devices that will be connected, and follow their instructions.
Speaker (right)
Wall socket
V Precautions when connecting speaker cables
Connect the cables securely so that they do not become loose
and the core wires or terminals at their ends do not become
exposed and contact other metal parts or the unit.
R
PREOUT
Preamplifier
Speaker (left)
Connect a set of cables of
one type or the other.
Wall socket
XLR pin
assignment
L
1. COMMON
2. HOT (+)
3. COLD (−)
9 9
