IMPORTaNT PaRTS OF YOUR IFILL OXYGEN CYLINDER

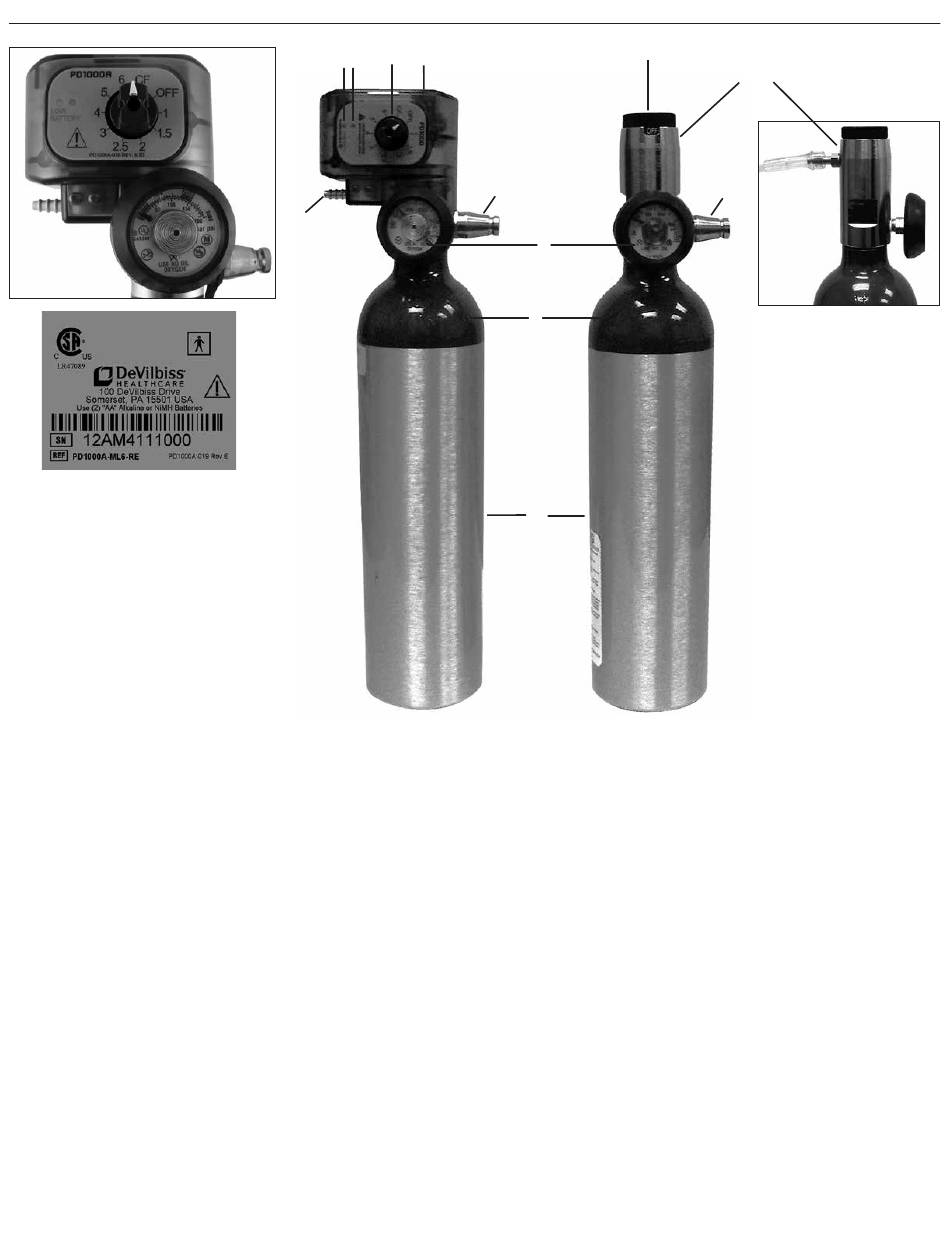

Typical PD1000A (series) Front and Rear Product Labeling
(PD1000A-XX label shown)
PD1000a Series
1. Cannula Fitting– Use this fitting to attach the cannula to your iFill cylinder.
Rotary Selector– Use this to select your prescription setting.
2.
3. Oxygen Fill Connection– Use this connection to attach the cylinder to the DeVilbiss iFill Personal Oxygen Station. note–Your iFill oxygen cylinder can only be filled with the DeVilbiss iFill
Personal Oxygen Station.
4. Oxygen Contents Gauge– Indicates the remaining pressure in the oxygen cylinder. When this gauge falls into the red section, you should switch to a new cylinder.
5. Hydrostatic Test Date– Contact your homecare provider or the cylinder manufacturer for details.
6. High-Pressure Oxygen Cylinder– Portable oxygen delivery tank with labeling. Refer to next page for label verbiage.
7. PulseDose indicator– Either green or red light illuminates each time the unit pulses oxygen.
Normal Battery Indicator– A flashing green light indicates that there is sufficient battery power.
8. Low Battery Indicator– A flashing red light indicates that there are 4 - 8 hours of battery life remaining. The low battery indication time may be reduced when using NiMH batteries.
Change Battery Indicator– A constant red light indicates that the batteries should be changed immediately. Unit can be used only in continuous flow mode until new batteries are installed.
9. Battery Door– Use only standard "AA" Alkaline or NiMH batteries. Refer to the instructions supplied with NiMH batteries for use and recharge instructions.
535-CF Series
1. Cannula Fitting– Use this fitting to attach the cannula to your iFill cylinder.
Rotary Selector– Use this to select your prescription setting.
2.
3. Oxygen Fill Connection– Use this connection to attach the cylinder to the DeVilbiss iFill Personal Oxygen Station. note–Your iFill oxygen cylinder can only be filled with the DeVilbiss iFill
Personal Oxygen Station.
4. Oxygen Contents Gauge– Indicates the remaining pressure in the oxygen cylinder. When this gauge falls into the red section, you should switch to a new cylinder.
Hydrostatic Test Date– Contact your homecare provider or the cylinder manufacturer for details.
5.
6. High-Pressure Oxygen Cylinder– Portable oxygen delivery tank with labeling. Refer to next page for label verbiage.
EN - 4
2
9 (on top)
8 7
1
PD1000A series
2
3
4
5
6
535-CF series
1
(on rear)
3
A-535-CYL
