ELEC
INDICATION SYSTEM

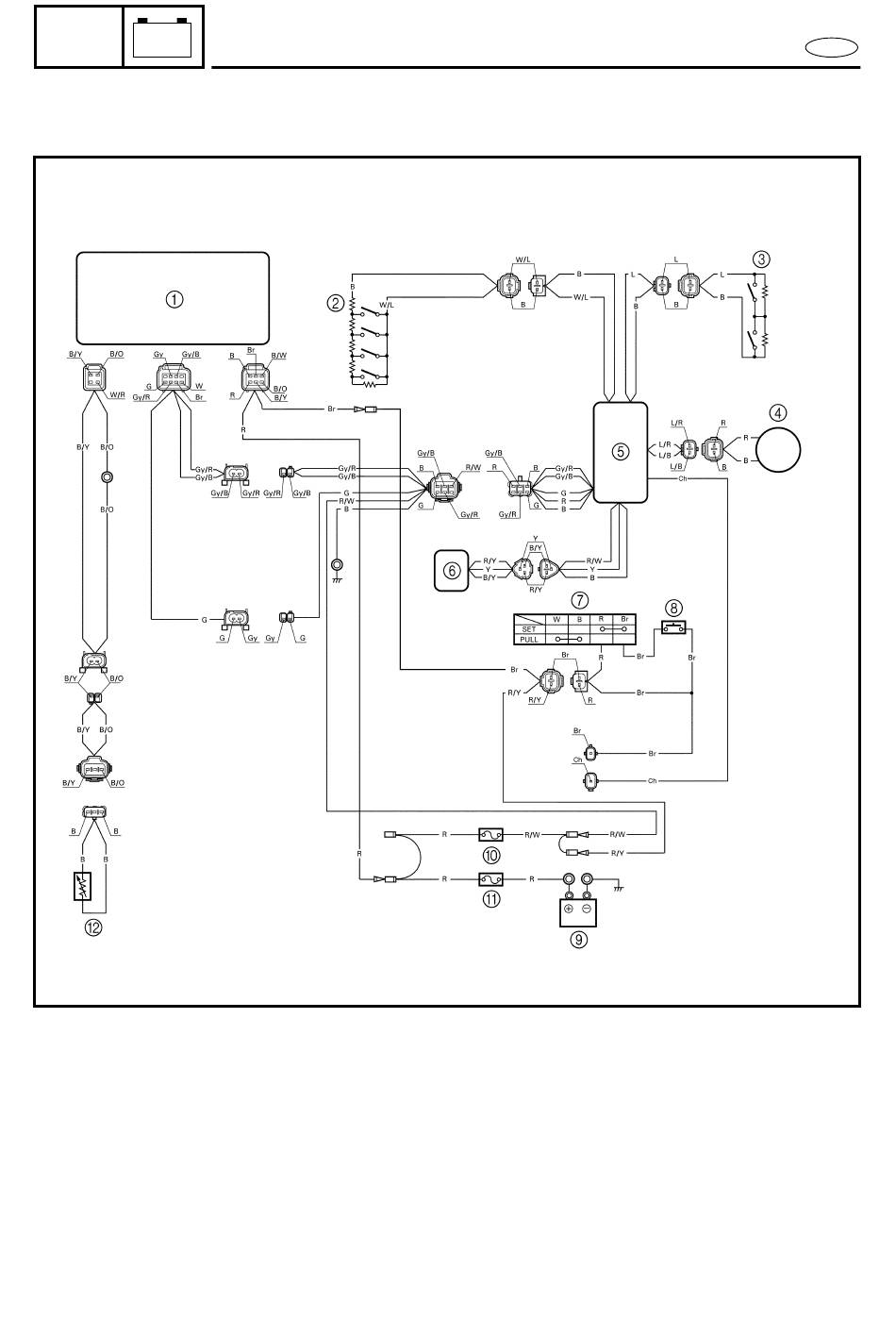

WIRING DIAGRAM
1 CDI unit
2 Fuel level sensor
3 Oil level sensor
4 Buzzer
5 Multi-function meter
6 Speed sensor
7 Engine stop lanyard
switch
8 Starter switch
9 Battery
0 Fuse (10A)
INDICATION SYSTEM
A Fuse (20A)
B Water temperature
sensor
B : Black
Br : Brown
Ch : Chocolate
G : Green
Gy : Gray
L : Blue
R : Red
W : White
Y : Yellow
B/O : Black/orange
B/Y : Black/yellow
7-32
E
Gy/B : Gray/black
Gy/R : Gray/red
L/B : Blue/black
L/R : Blue/red
R/W : Red/white
R/Y : Red/yellow
W/L : White/blue
