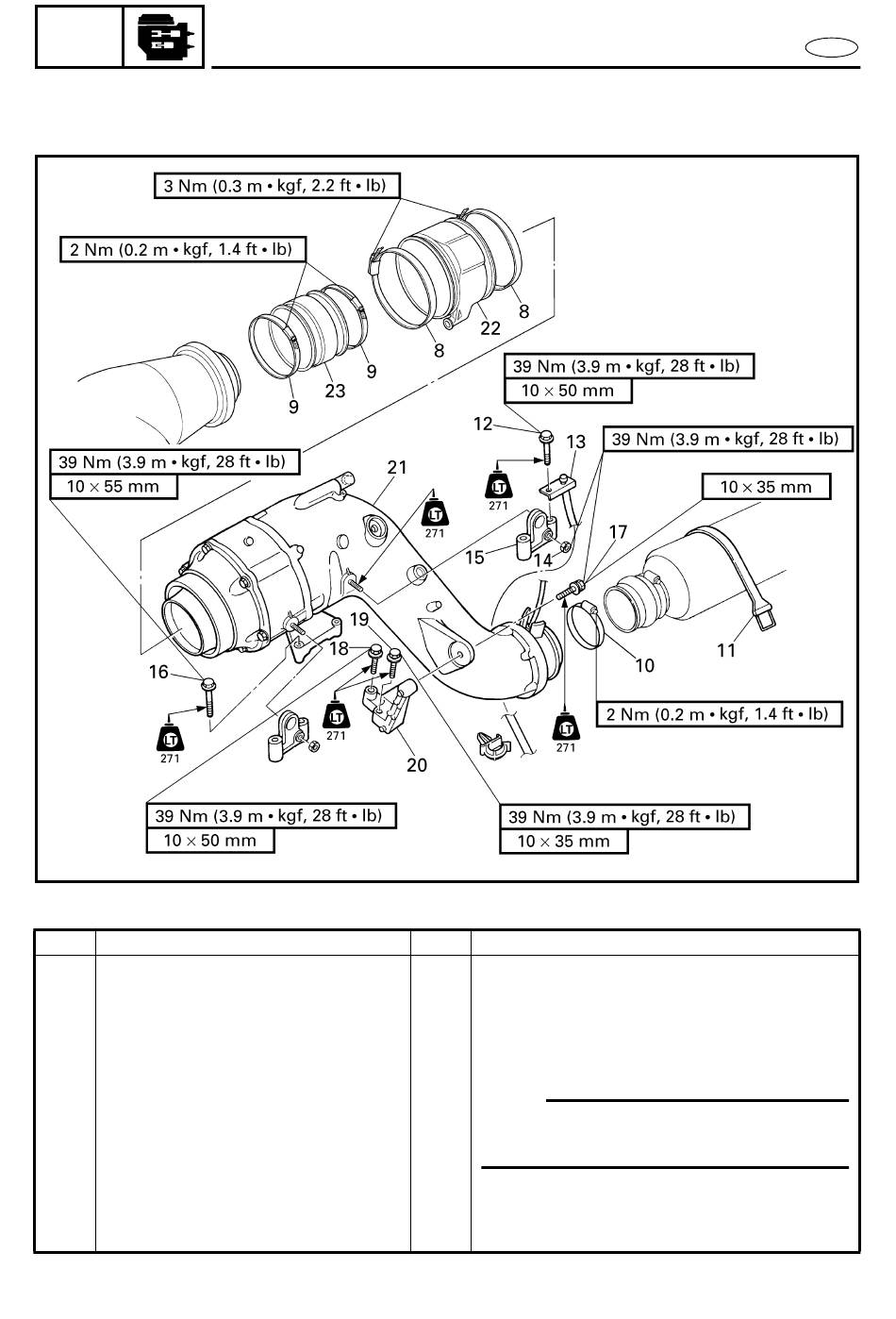

EXPLODED DIAGRAM
Step Procedure/Part name
13 Bolt
14 Bolt
15 Bolt
16 Bolt
17 Muffler stay 2
18 Muffler assembly
19 Outer exhaust joint
20 Inner exhaust joint
MUFFLER ASSEMBLY
Q'ty
2
1
1
1
1
1 NOTE:
Remove the cylinder head if it is difficult
to remove the muffler assembly.
1
1
Reverse the removal steps for installation.
5-3
