JET
PUMP
TRANSOM PLATE AND HOSES

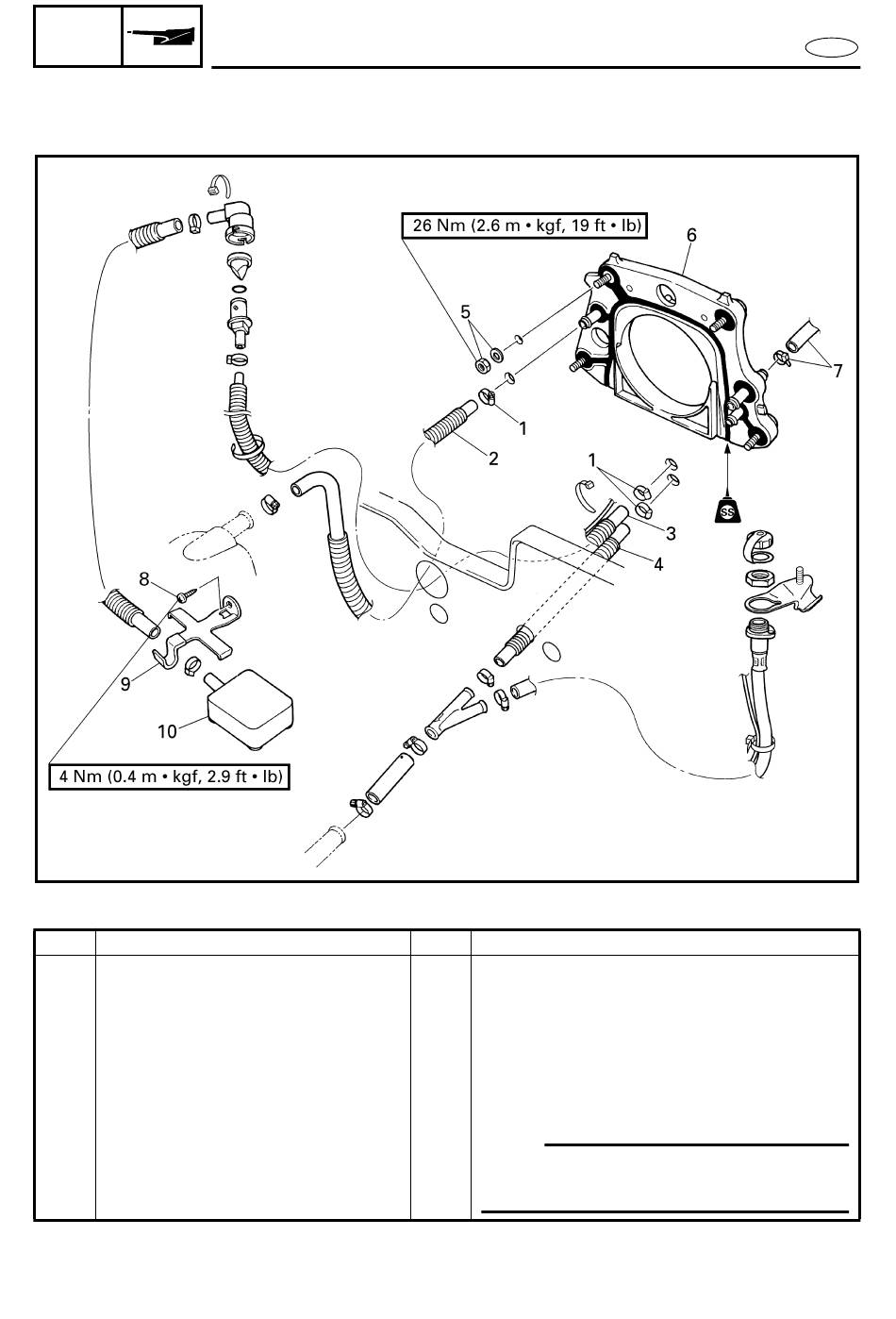

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name
TRANSOM PLATE AND HOSES
REMOVAL
Exhaust system
Jet pump unit
1 Hose clamp
2 Hose
3 Bilge hose 1
TRANSOM PLATE AND HOSES
Q'ty
Follow the left "Step" for removal.
Refer to "EXHAUST SYSTEM" in
chapter 8.
Refer to "JET PUMP UNIT".
3
1 Cooling water outlet
NOTE:
1
Route the bilge hose 1 under the drive
shaft tube.
6-13
Service points
