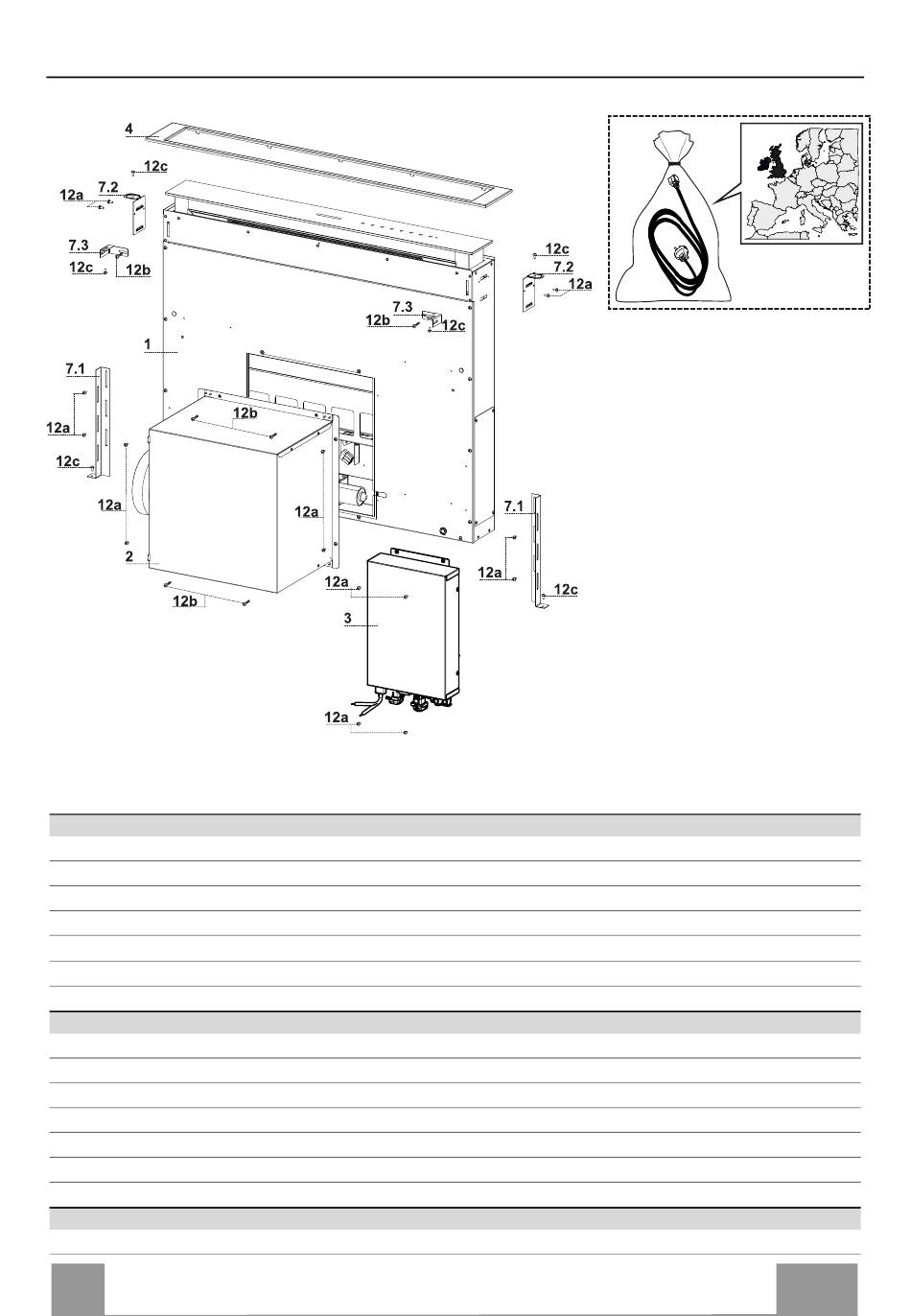

CHARACTERISTICS
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Light, Filters
2 1 Motor unit
3 1 Electric unit
4 1 Front Frame
1 Directional Air Outlet grille
8
1 Reducer Flange ø 150-120 mm
9
1 Damper
10
Ref. Q.ty Installation Components
7.1 2 Splashback Fixing Bracket
7.2 2 Hob Fixing Bracket
7.3 2 Side Bracket
12a 16 Screws 3.5 x 9.5
12b 6 Screws M4 x 8
12c 6 Screws 4 x 15
12e 2 Screws 2.9 x 9.5
Q.ty Documentation
1 Instruction Manual
