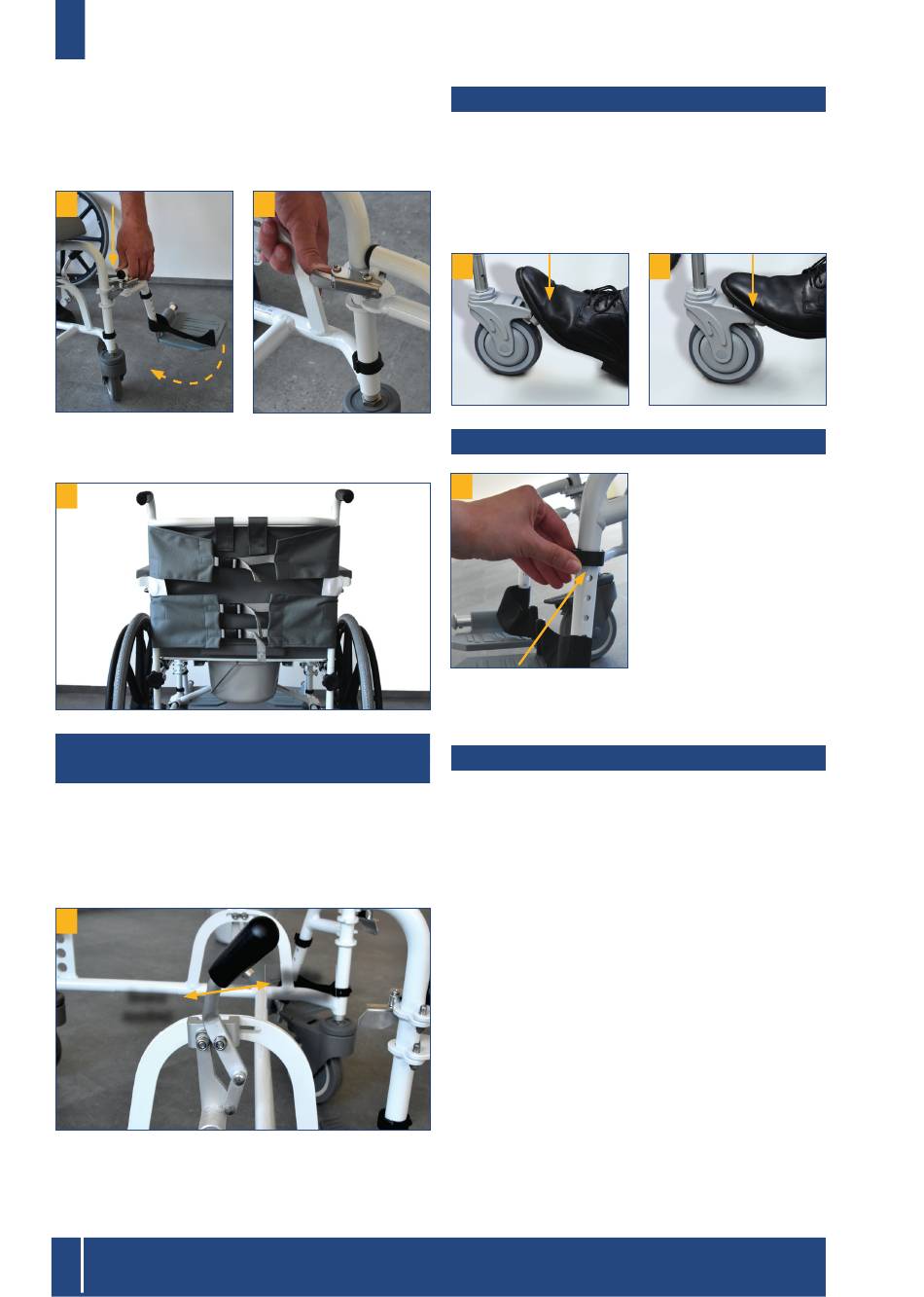

Hang the footrests provided as shown and swivel them
inwards until they audibly click into place (pic. 6).
To release the footrests, press the lever inwards and
swivel the footrests to the side (pic. 7).
6
Put the backrest cover over the armrests and close it as
shown (pic. 8).
8

Assembly and disassembly of the 24"

wheels

„Assemble the brakes as shown on both sides, allowing a
distance of approx. 1 cm to the mounted 24" wheels. The
24" wheels are equipped with a quick-release axle and
thus easy to install. The tool needed for this is enclosed."
(pic. 9).
9
Brake
applied
12
Drive Medical GmbH & Co. KG | As per: 09.07.2020 | Errors and alterations excepted
7
Brake
released

Double-function parking brake

To apply the brake, press the lever downwards (pic. 10).
At the same time, the directional position of the wheel is
blocked.
To release the brake, press the head of the lever down-
wards (pic. 11).
10
Bremse
zu

Height adjustment of the footrests

12
IMPORTANT:
Never use footrests to assist with standing up!

Cleaning | Maintenance

• Clean regularly with a moist cloth!
• Do not use any aggressive cleaning agents!
• Do not use abrasive cleaners!
• Do not use any high-dose chlorine and vinegar-based
cleaners!
• To disinfect, a spray disinfectant can be used such as
Descosept AF or Bacillol AF.
• Check the screws regularly and tighten, if necessary.
• The product should not be exposed to temperatures
above 60°C for long periods of time (for example, use
in a sauna, etc.).
• In the event of defects, contact your specialist dealer
from whom you purchased this product.
• Check the condition of the tires regularly. They are
„fail-safe", meaning that you do not have to check air
pressure or fi ll them with air. Always check the tires for
tears or other damage. In the event of defects, contact
your specialist dealer from whom you purchased this
product.
Instructions for use DUO MOTION XL / 24 XL
11
Bremse
off en
Pull up the footrest slight-
ly. Pull out the clip and put
it in again at the required
position (pic. 12).
Pull out the footrest
slightly further if neces-
sary. Set the other foot-
rest to the same height as
described.
