INSTALLATION (VENT OUTSIDE)

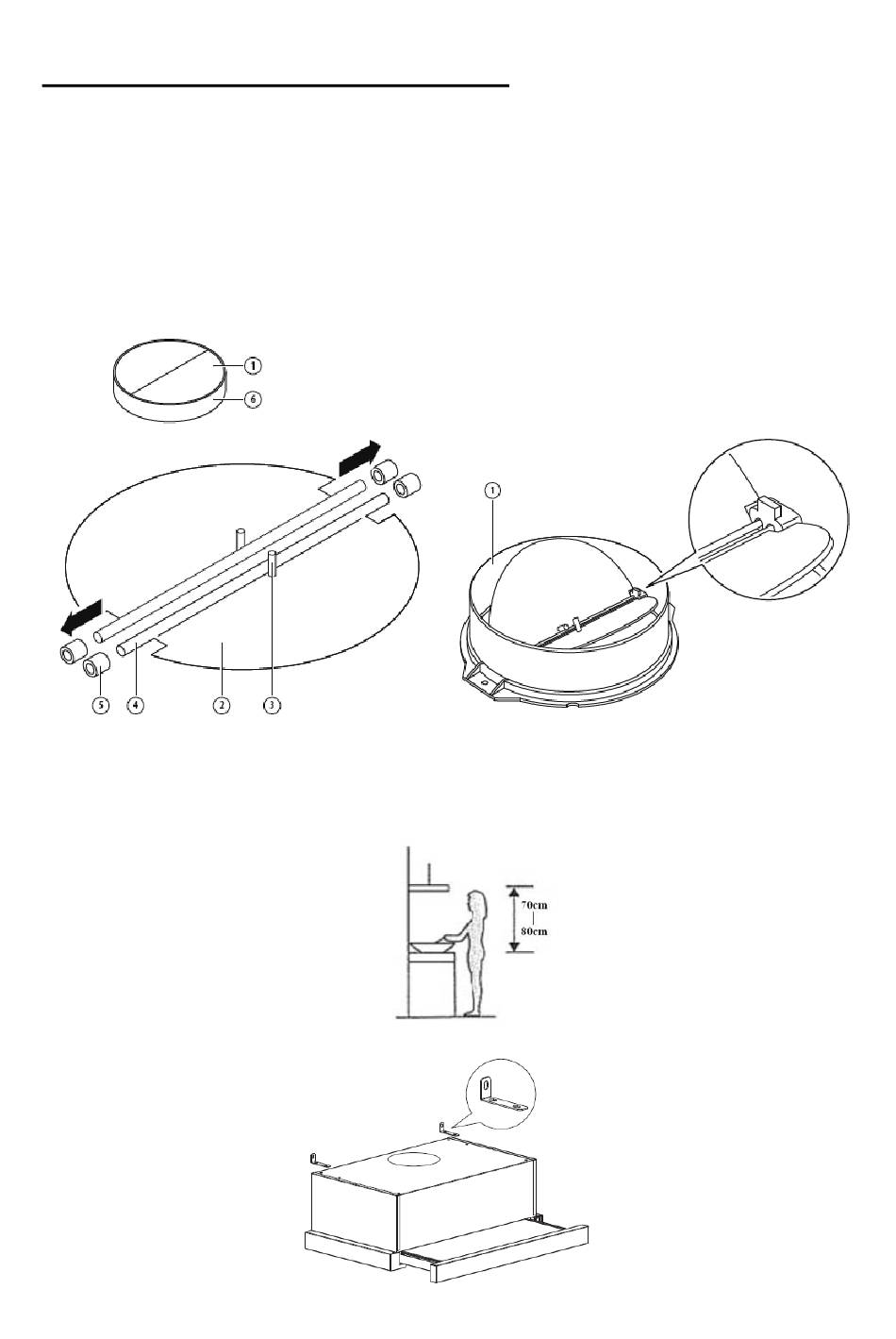

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body. The images only show an example of how to mount the V-flap,the
outlet may be various according to different models and configuration.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part
INSTALLATION (Wall Mounting)
1. Decide the location of the holes for fixing the cooker hood.
2. Install the L-shaped bracket on the top of the hood by two screws (4mm x 10mm)
5
