Figure Two:
Figure Three:
can be used to guide the locator towards the target line. The signal strength value
will be displayed, indicating the strength of the signal from the target line. In this
position the tone from the speaker of the locator will be pulsed.
With the aid of the compass, the locator can be positioned in line with the target
line enabling both depth and current readings to be displayed.
As the locator is moved towards the left, the tail on the proportional right arrow
will reduce, the target position indicator will move from the left, towards the
centre, the pulsing tone from the speaker will reduce and the numerical signal
strength value will increase.
Use the proportional arrows, target position indicator and signal strength value to
guide the locator directly over the target line.
Figure Four:

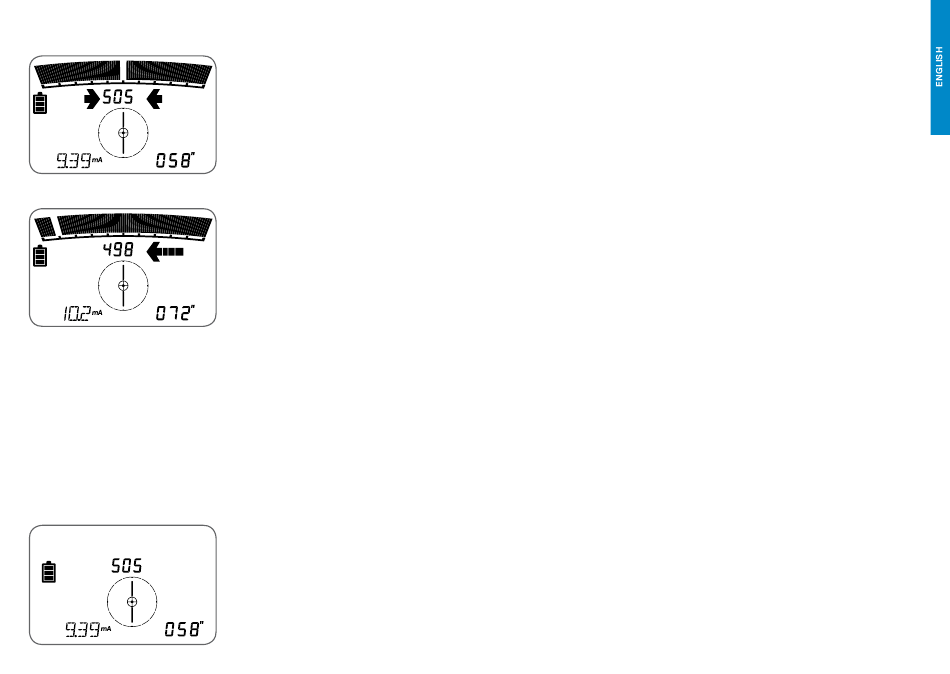

Figure two shows the locator in
Guidance Mode and directly over the
target line. In this position the left and
right arrow heads will be displayed
simultaneously, target position indicator
in the centre, the signal strength value
at its maximum, speaker tone silent and
both depth and current readings at their
minimum.
Figure three shows the locator in
Guidance Mode and positioned to
the right of the target line. In this
position the Proportional Right arrow
is displayed, indicating the direction
in which the locator should be moved
towards the target line. The target
position indicator indicates the target
positioned to the left of the locator and
With the locator powered up, a
momentary press of the On/Off key
will change the mode of operation to
Signal Strength Mode. In this mode,
the compass, signal strength, depth
and current will be available. The
proportional left/right arrows and
target position indicator will not be
available. See figure four.
14
Centros Manager
™
Centros Manager ™ is a Radiodetection PC application which is available as a
free download. From time to time Radiodetection will release new software for
the RD5000 locator which may improve performance, stability and may include
new features. The latest software is contained within Centros Manager and
to download the latest software you must register for extended warranty (see
page 5 for details). Once registered you will receive an email when new versions
of software are available and you may also carry out an eCAL to validate the
calibration and functionally test the RD5000 locator.
Installing Centros Manager
Note: Before downloading the Centros Manager application, you may find
it useful to view the Centros Manager operation Manual by going to:
www.radiodetection.com/centrosmanager. Please note that when you
download Centros Manager the operation manual will be available to view
in the Help menu.
Note: When you install Centros Manager onto a PC, the following message
may be displayed: "You need to log in as Administrator". If this message is
displayed, the installation of the program will not complete. You will need to
log on as an Administrator or ask a user with Administration Rights to install
the program on your behalf. Having successfully installed Centros Manager,
the Administrator will need to carry out the instructions in Section 7.1 of the
Centros Manager Operation Manual if they wish users without Administrator
Rights to use Centros Manager.
1. Go to www.radiodetection.com/centrosmanager.
2. Click on the link to download Centros Manager and a File Download Window
will appear. You will have a choice of either Run or Save.
Run: Centros Manager will automatically install.
Save: You will be given the option to save Centros Manager to a destination of
your choice. Once you select the destination, the Centros Manager executable
program will download to that destination. Once completed, you will have the
option to Run or Open Folder. At this stage Centros Manager has not been
installed so you can either select Run and Centros Manager will automatically
install or you can choose to Open Folder. When you open the folder the Centros
Manager executable file will be available. To install double click on this file.
3. When Centros Manager is installed run from the Windows Start menu under
Programs or alternatively, use the Centros Manager shortcut on your desk top
if you have opted to have this during installation of Centros Manager.
Note: Once Centros Manager is open, click on Help to gain access to the
Centros Manager Operation Manual.
