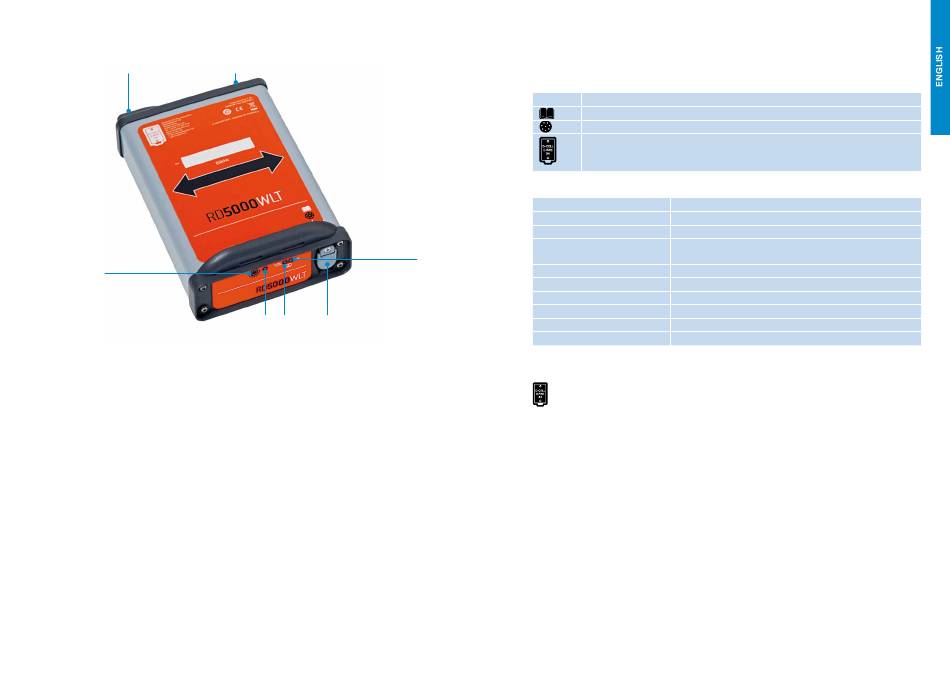

RD5000WLT transmitter
7
1
Transmitter front panel
1. On/Off key.
2. On/Off LED.
3. Alkaline battery warning LED: Flashes when batteries are in use and are low.
4. Lithium Ion rechargeable battery warning LED: Flashes when batteries are in
use and are low.
5. Accessory socket for direct connection lead, signal clamp and charging
internal Lithium Ion rechargeable battery pack.
Transmitter rear panel
6. Fuse holder.
Note: The transmitter is supplied with a non-fitted fuse for shipping and
before use this will have to be inserted into the fuse holder.
7. Alkaline battery compartment: Requires 4 D-Cells (LR-20).
The RD5000 transmitter incorporates a rechargeable Lithium Ion battery pack and
this is the intended primary power source for the transmitter. When the Lithium Ion
low battery level LED illuminates the user should either recharge the battery pack
using the Radiodetection supplied charger or alternatively fit 4 alkaline batteries. If
alkaline batteries are fitted to the transmitter, these will be detected automatically
and the transmitter will take its power from the alkaline batteries. When the alkaline
batteries are low the alkaline low battery level LED will illuminate.
6
2 3 5
8
Your safety or the safety of others may be at risk if the RD5000WLT is not used in
accordance with the manufacturers' instructions.
Key to symbols used on the RD5000WLT Transmitter:
Symbol Description
Refer to manual for specific safety instructions or advice.
Accessory connection socket.
Type and orientation of auxiliary battery.
Standard D Cell (LR20), max 1.6V voltage per cell.
For best performance use alkaline batteries.
RD5000WLT Transmitter Technical Specification
Frequency
Nominal power output
Batteries
Warranty
4
Compliance
Weight
Environment
Operating temperature range
Storage temperature range
Output voltage
† Extended warranty available upon registration, within 3 months of purchase, at:
www.radiodetection.com/extendedwarranty
Batteries
Internal Battery
The RD5000WLT has an internal Li-Ion
rechargeable battery and is supplied with
bespoke charging equipment.
Use of alternative charging equipment
will compromise the safe operation of the
equipment.
The internal battery has no user serviceable
components and it must not be dismantled
or modified as this will compromise safety.
If a battery failure is suspected, the
equipment should be repaired using original
spare parts by an authorized repairer.
Waste Lithium Ion batteries should not
be placed in municipal waste, punctured,
incinerated, crushed etc. They should be
handled and recycled correctly.
83kHz (83,077Hz ±5Hz).
1W in Direct Connect mode.
Internal rechargeable battery pack, 4 x D-Cells (LR-20).
12 months.
36 months.
†
FCC, Canada 310 RoHS, WEEE, CE.
1.6kg (3.5lbs) (including rechargeable batteries).
IP54.
-20°C to +50°C (-4°F to 122°F).
-40°C to +70°C (-40°F to 158°F).
Max 30V RMS (direct connect mode).
Auxiliary Batteries
The RD5000WLT has an option to bypass
the Li-Ion battery by the installation of
4 standard alkaline D-Cells (LR-20) as
illustrated on the product label. If installed
the D-Cells (LR-20)take priority over the
Li-Ion battery.
Do not mix D-Cell (LR-20) battery types.
Any D-Cell (LR20) with a max terminal
voltage of 1.6V can be inserted, however, for
best performance use alkaline cells.
Note: These cells will not be charged by
the supplied charging equipment.
Note: Installing the first two D-Cells
correctly, followed by two more inverted,
allows D-Cells to be stored in the
RD5000WLT while it operates from the
internal Lithium Ion battery. Turn the second
two D-Cells around to the correct polarity to
power the RD5000WLT from the D-Cells.
