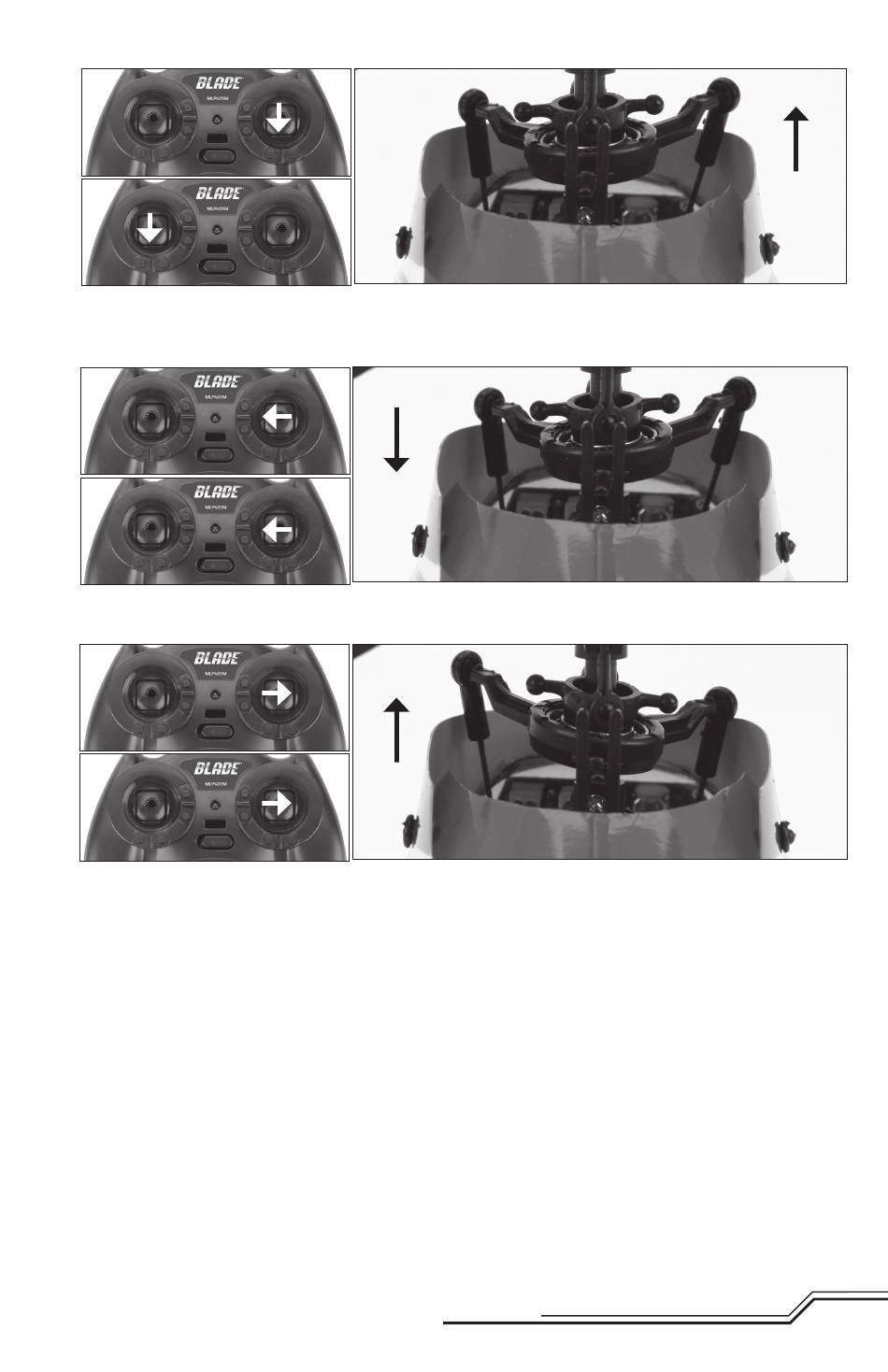

With the stick pulled back, the right-hand servo should push the swashplate upward.
M2
M1
Move the right-hand stick left and right to check aileron roll control. When the stick is pushed to the
left, the left-hand servo should pull the swashplate downward.
M2
M1
With the stick pushed right, the left-hand servo should push the swashplate upward.
M2
M1
If at any time during the test the controls respond in the opposite direction, it may be necessary to
reverse/change the direction of operation of the flight controls. Follow these steps to change the direc-
tion the various flight controls:
• Be certain that the battery is disconnected from the battery lead of the 5-in-1 control unit and the
transmitter is turned off.
• P ush down on the appropriate digital trim button on the transmitter for the control you would like
to change the direction of. For example:
Top elevator trim button—elevator channel normal
Bottom elevator trim button—elevator channel reversed
Left aileron trim button—aileron channel normal
Right aileron trim button—aileron channel reversed
• Continue to hold the appropriate trim button while turning the transmitter on.
• H old the digital trim button down for approximately five seconds, until a series of beeps/tones are
heard confirming the selection.
• Connect the battery to the 5-in-1 and complete the flight control test, confirming that all controls
are operating in the correct directions.
