Signal light

The red light on the front of the CT1 signals the following conditions:
A light briefly flashing every second indicates that there is power supply voltage present and that the service is
free and ready to be used.
5 fast flashes indicate that the coin has been accepted.
A slow flashing light indicates that the delay of service is being counted (chapter 4.4).
A constantly lit light indicates the service is in use.

1) DIP-Switches

for time of service (TIME)
2) DIP-Switches
for delay of service (DELAY)
3) LOAD ON/OFF button

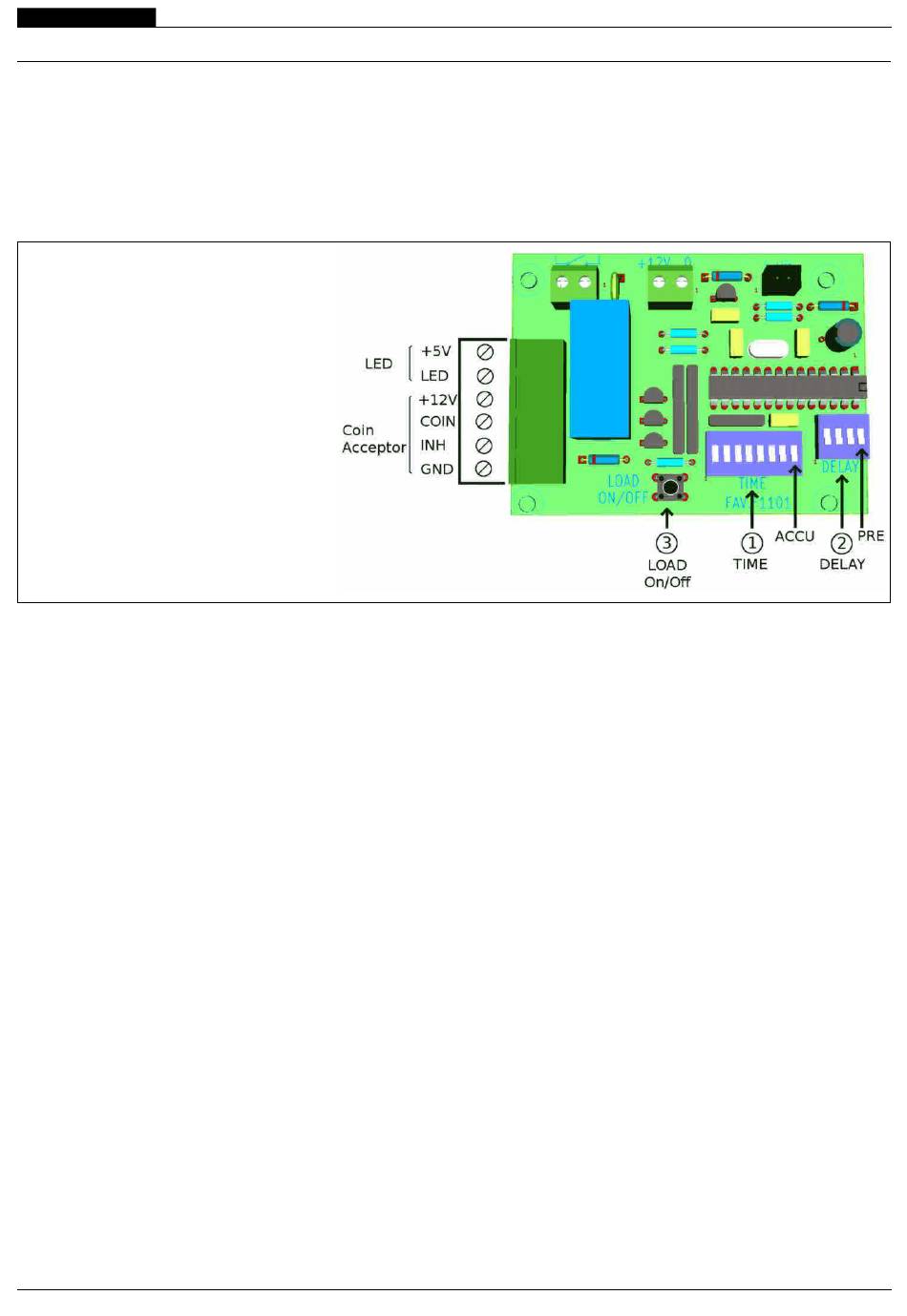

Fig 5: Electronic board.
178-10-M02 - CT1 manuale di uso e installazione
Pag. 8 / 32
