Welcome
Welcome to the Team Carrera!
These operating instructions contain important information regard-
ing the assembly and operation of your Evolution racetrack. Please
read them carefully and keep them in a safe place afterwards.
If you have any queries, please do not hasitate to contact our dis-
tributor or visit our websites:
carrera-toys.com · carreraclub.com
Please check the contents for completeness and possible transport
damage. The packaging contains important information and should
also be retained.
We hope you will derive a lot of pleasure from your new Carrera
Evolution track.
Safety instructions
• WARnIng! Not for children under 36 months. Danger of suf-
focation due to small parts which can be swallowed by children.
Attention: Functional clamping danger.
• WARnIng!
This toy contains magnets or magnetic components. Magnets stick-
ing together or becoming attached to a metallic object inside the hu-
man body can cause serious or fatal injury. Seek immediate medical
help if magnets are swallowed or inhaled.
• The transformer is not a toy! Do not short-circuit the transformer's
connections! Note to parents: Regularly inspect the transformer for
damage to the cable, plug or housing! Only operate the toy with rec-
ommended transformers! The transformer may no longer be used
if it is damaged! Only operate the racetrack with a transformer! If
play is interrupted for longer periods, it is recommended to separate
the transformer from the power supply. Do not open transformer or
speed controller housings!
Important note to parents:
Transformers and power supply units are not suitable to be used as
toys. The use of such products needs to be constantly supervised
by the parents.
• Regularly check the track and cars for damage to cables, plugs
and housings! Replace defective parts.
• The car racetrack is not suitable for outdoor operation or operation
in wet locations! Keep away from liquids.
• Do not place any metal parts onto the track to avoid short-circuits.
Do not place the track in the immediate vicinity of delicate objects,
as these could be damaged by cars hurled from the track.
• Pull the plug before cleaning the racetrack! Only use a damp cloth
for cleaning, no solvents or chemicals. When it is not in use, store
the track in a dry and dust-protected location, preferably in the origi-
nal cardboard box.
• Do not operate race track at face- or eye-level – risk of injury due
to cars being catapulted off the track.
note:
The vehicle may only be operated again in a completely assembled
condition. Assembly may only be carried out by an adult.
Contents of package
1 Audi R8 Safety Car Le Mans 2010
1 Chevrolet® Corvette® C6R
Luc Alphand Aventures "No.72", Le Mans 2010
7 Standard straights
1 Connecting section
8 Curves 1/60°
2 Mech. speed controllers
1 Transformer
Guardrails
Replacement contacts
Accessories
Instructions
Dimensions when assembled: 217 x 139 cm / 7.12 x 4.56 ft.
Track length: 5,3 m / 17.39 ft.
6

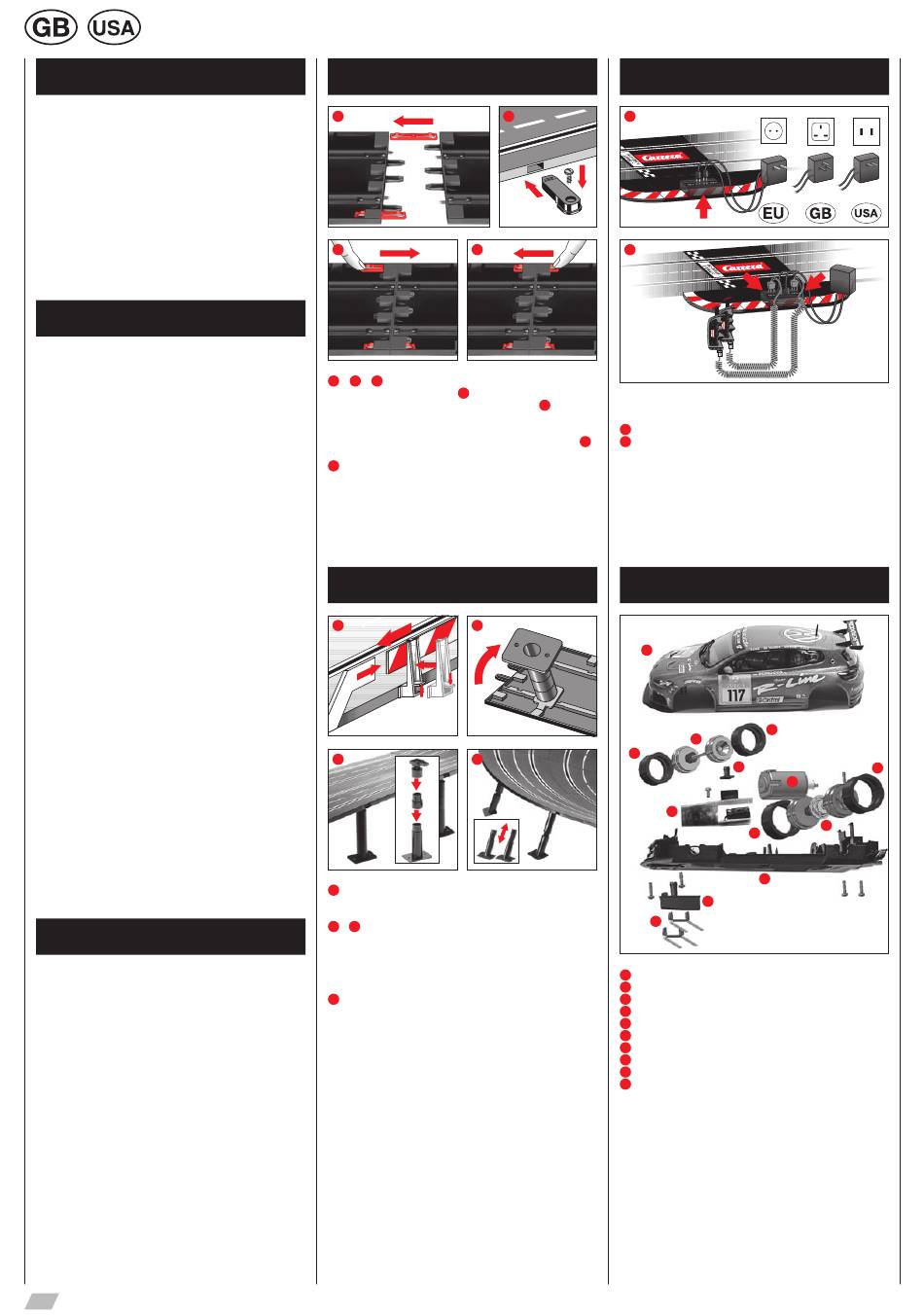

Assembly instructions
1
2
3
+
+
Before assembling please insert the connecting clips
1
2
3
in the track as shown in figure
. Stick tracks together on a flat
1
base. Move the connecting clips according to figure
of the arrow until they audibly snap in. The connecting clip may also
be inserted later. The connecting clips can be removed into both
directions by simply pressing down the clamped nose (see fig.
Fastening: To fasten the track sections on a board, it is neces-
4
sary to use the track section fasteners (Item no. 85209, not con-
tained in the package).
note:
Carpeting is not a suitable foundation on which to build the track be-
cause of static charging, formation of fluff and ready inflammability.
Guard Rails and Supports
1
2
3
4
guard rails: Guard rail mounts are fitted by tilting them upwards
1
onto the verge of the track.
+
Supporting raised sections: The shank of the ball pivot is
2
3
to be inserted into the square slots provided on the underside of the
track. The supports can be made higher by using the extensions.
The pedestal of the supports can be screwed to a base if required
(screws not included).
Supporting steep curves:
4
Slanting supports of the right height are provided to support steep
curves. Fix the nonadjustable supports at the beginning and end of
the curves. Insert the heads of the supports in the round slots of the
underside of the track.
Electrical connection
4
1
2
in direction
The connecting rail is the straight track with sockets for the trans-
2
former and hand-held control unit.
The transformer's plugs are plugged into the central socket.
1
).
The hand-held control unit's plugs are plugged into the external
3
2
sockets.
Care should be taken that the + and – symbols on the plugs agree
with those on the connecting rail.
Advice: The toy must not be connected to extraneous electrical
equipment, plugs, cables or other objects: short-circuits and power
surges can thus be avoided. The Carrera Evolution racing track only
functions faultlessly with the original Carrera Evolution transformer.
1
4
10
8
Body, spoiler
1
Engine
2
LED cover
3
4
Tyres
Rear axle
5
6
Chassis
Guide keel
7
Double sliding contact
8
Front axle
9
Car board with reversing switch
10
Vehicle construction depends on the model.
The designation of the individual parts may not be used as
order numbers.
Car components
4
9
3
2
5
4
6
7
4
