Refer to the operating instructions for the connected
camcorder when using this unit.
a Battery pack mount
Supplies power from a battery pack, or from an
AC supply via an AC adaptor.
For safety, use only the Sony battery packs and
AC adaptors listed below.
Battery pack: BP-FLX75/L80S
AC adaptor: AC-DN2B/DN10
Notes
• Before installation, charge the battery pack using a
battery charger.
• Charging the battery pack immediately after use when
the temperature of the battery pack is high may not
fully charge the battery pack.
b Battery release lever
Press to release the lock, allowing the battery
pack to be removed.
c Release lever
Press the release button to unlock and then lift the
lever when attaching the unit to a camcorder and
when removing the unit from a camcorder.
d DC OUT connector (4-pin)
Supplies 12 V DC power to peripheral devices,
such as a monitor or LED light. A REC Tally
signal output and REC Trigger signal input can
also be connected via the DC OUT connector.

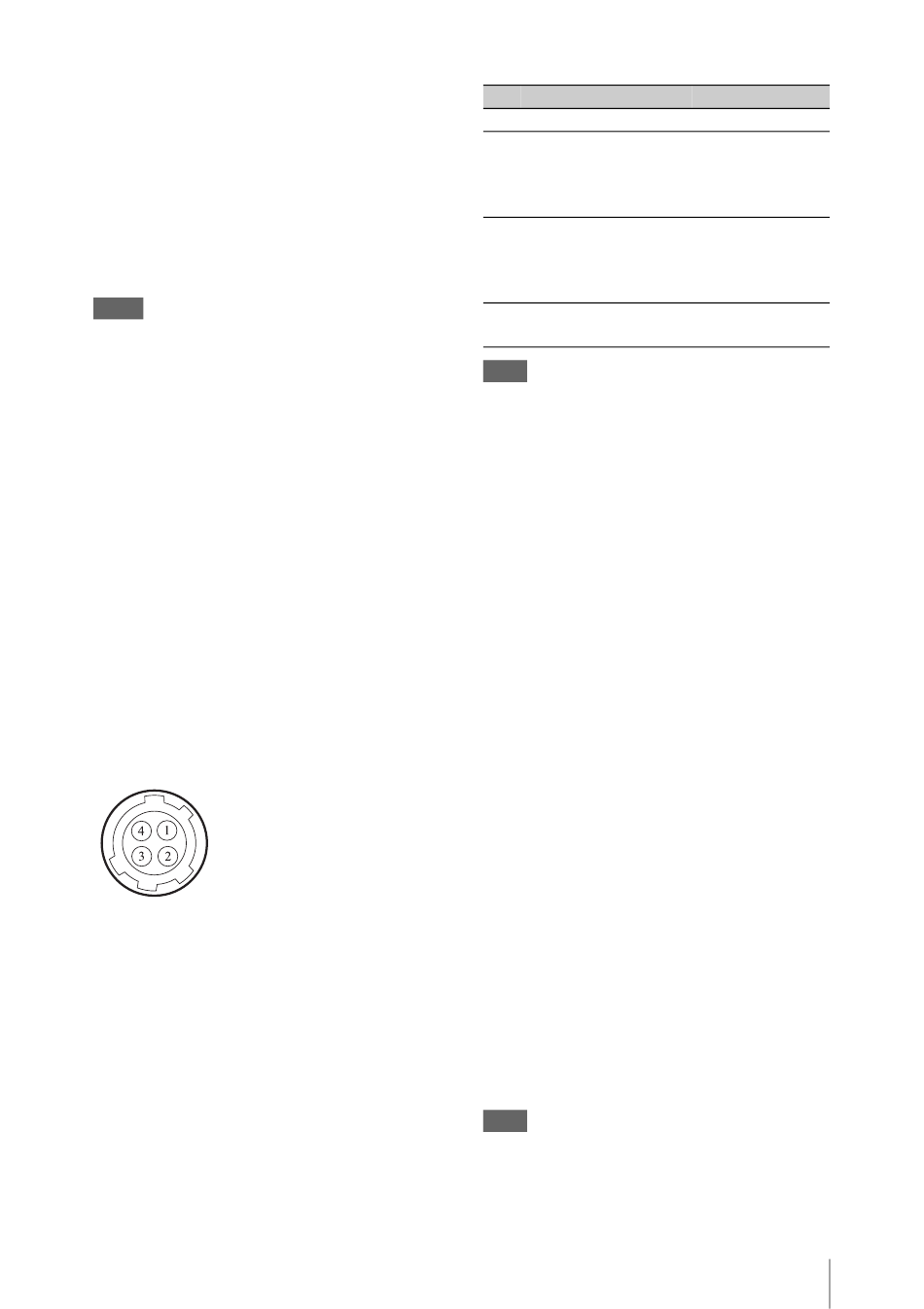

4-pin, female
- External View -
No. Signal
I/O
1
UNREG GND
–
2
REC TALLY
OUT Open-collector
3
REC TRIGGER
IN
4
UNREG +12 V
OUT +11 V to 17 V DC
OUT
Note
Connect only devices with current consumption rating of
1.8 A or lower to the DC OUT connector. If an
overcurrent condition is detected, output stops. Check
the connection with peripheral devices and then turn on
the power supply again.
e DC IN connector
Supplies DC power to the unit using the optional
DC power supply cable.
f Access lamps A/B
Indicates the state of card slots A and B.
Red: Accessing the inserted AXS memory card
Green: Standby state (mounted AXS memory
card is ready for playback/recording)
Off: Valid memory card is not inserted
g SLOT SELECT button
When memory cards are mounted in both card
slots A and B, press this button to select the
memory card to use.
h PLAYBACK SELECT button/
indicator
The indicator is lit when playback is enabled.
When not lit, press the PLAYBACK SELECT
button to enable playback.
Playback is controlled from the connected
camcorder.
i Camera mount connector
Connects to a camcorder to deliver both signal
and power.
Note
A data transfer error may occur if there is any dust or
other matter adhering to the camera mount connector. If
the connector is dirty, clean the connector using a cotton
swab.
Location and Function of Parts
Specification
GND for UNREG
output
(Max. 50 mA)
Low: REC
Open or +5 V DC:
Normal
GND: Active
(REC)
output
17
