General Installation Instructions; Joint Connection; Coping With Condensation; Appliance Connection - ubbink Rolux Vent system condensation Instructions Pour L'installation

General Installation Instructions

Joint connection

Coping with condensation

Appliance connection (female appliance top)
6
x

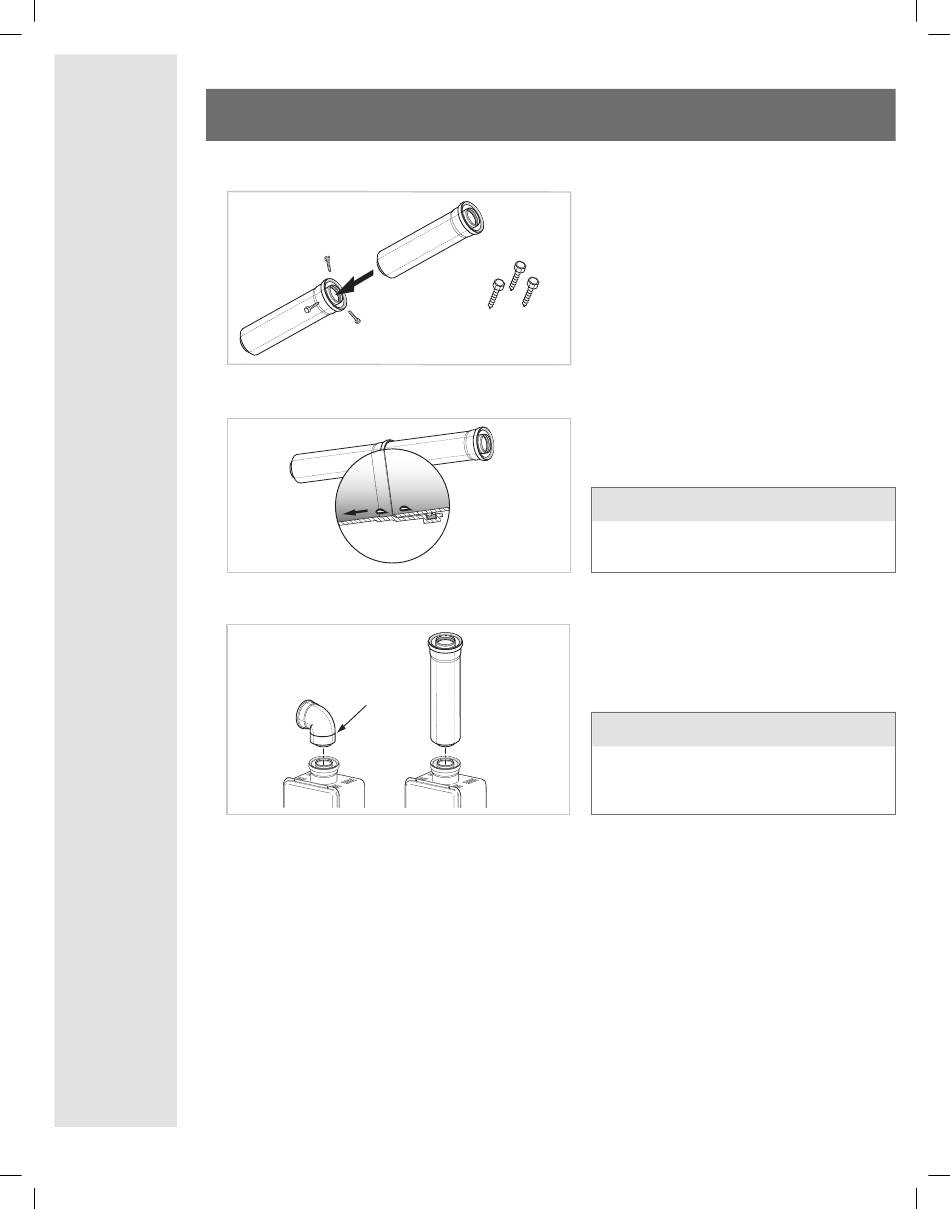

Vent connections must be firmly pressed
together so that the gaskets form an
airtight seal. To ensure optimum joint con-
nection, it is recommended to secure with
three #8x1/2" self tapping screws. Secure
the vent to the wall or ceiling with pipe
clamps or perforated hanger iron.
Vent connections extending beyond the
outside of a building or structure should
be enclosed to protect seals and gaskets.
Horizontal vent lengths must pitch a
minimum 3/4"/ft. (3° or 55 mm/m) to the
appliance.
NOTE
See exception under Condensate on
page 4.
Insert the male end of a vent component
into the female appliance top.
NOTE
The molded line on the male end of
the elbow (x) indicates the proper
insertion depth into the appliance top.
