WARNING
The UB1 UNIBASS is designed to be used in a standard household environment.
Power requirements for electrical equipment vary from area to area. Please ensure that your AC
Adaptor supplied meets the power requirements in your area. If in doubt, consult a qualified electrician
or AKAI professional dealer.
120 VAC @ 60 Hz for USA and Canada
220~230/240 VAC @ 50 Hz for Europe
PROTECTING YOURSELF AND THE UB1 UNIBASS
• Never touch the AC Adaptor with wet hands.
• Always disconnect the AC Adaptor from the power supply by pulling on the adaptor/plug, not the
cord.
• Allow only an AKAI professional dealer or qualified professional engineer to repair or reassemble
the UB1 UNIBASS. Apart from voiding the warranty, unauthorized engineers might touch live
internal parts and receive a serious electrical shock.
• Do not put, or allow anyone to put any object, especially metal objects, into the UB1 UNIBASS.
• Use only a household AC power supply. Never use a DC power supply.
• If water or any other liquid is spilled into or onto the UB1 UNIBASS, disconnect the power, and call
your dealer.
• Make sure that the unit is well-ventilated, and away from direct sunlight.
• To avoid damage to internal circuitry, as well as the external finish, keep the UB1 UNIBASS away
from sources of direct heat (stoves, radiators, etc.).
• Avoid using aerosol insecticides, etc. near the UB1 UNIBASS. They may damage the surface, and
may ignite.
• Do not use denaturated alcohol, thinner or similar chemicals to clean the UB1 UNIBASS. They will
damage the finish.
• Modification of this equipment is dangerous, and can result in the functions of the UB1 UNIBASS
being impaired. Never attempt to modify the equipment in any way.
• Make sure that the UB1 UNIBASS is always well-supported when in use on a firm level surface.
• In order to assure optimum performance of your UB1 UNIBASS, select the setup location carefully,
and make sure the equipment is used properly. Avoid setting up the UB1 UNIBASS in the following
locations:
1. In a humid or dusty environment
2. In a room with poor ventilation
3. On a surface which is not horizontal
4. Inside a vehicle such as a car, where it will be subject to vibration
5. In an extremely hot or cold environment
• Be sure to wait for a few seconds before turning the unit on again after the power has been turned
off to ensure proper operation.
• When you connect this unit to other equipment, make sure that all of the other equipment is turned
off in order to prevent malfunction or damage to speakers.
Copyright Notice
The AKAI UB1 is a computer-based instrument and uses software contained in ROM.
Software that is provided with the instrument, including information contained in this
manual, is copyrighted by applicable laws. You can use that software or information
concerning the instrument only for personal use. You are strictly prohibited to copy or
modify any part of the software or manual without written permission from AKAI
professional M.I. Corp. in Japan.

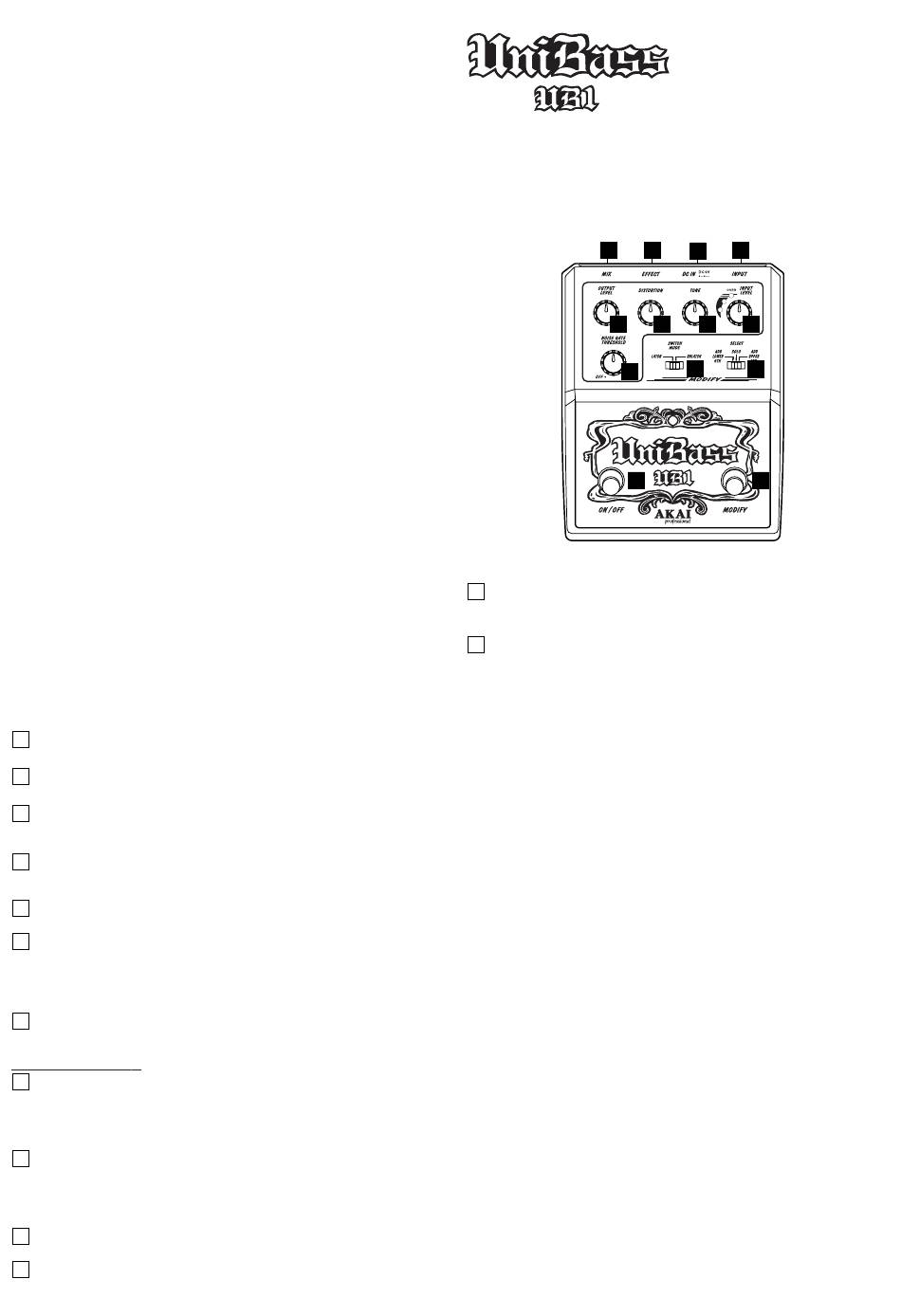

DC IN
3
Plug the supplied MP-9 (9-volt) AC adapter in here.
INPUT
4
Plug your bass in here.
OUTPUT LEVEL control
5
This sets only the level of the effect sound. The level of the direct signal is not
affected and remains the same even when the effect is turned off.
DISTORTION control
6
The distortion effect emulates the sound of an overdriven guitar. The higher the
setting the more pronounced the effect becomes.
7 TONE control
Controls the tone of the effect sound.
INPUT LEVEL control
8
This sets the input level.
Set it so that the red LED (OVER) doesn't light when playing at your loudest.
Level meter: The LEDs show the following levels for the input signal:
Red - overload / Yellow - correct level / Green - low level
9 NOISE GATE THRESHOLD control
Sets the threshold level of the noise gate. The noise gate function cuts off the
harsh noise when the signal level is low, especially with the distortion effect.
MODIFY switches (10/11)

SWITCH MODE

10
This selects how the MODIFY (13) footswitch works:
LATCH - The footswitch toggles the modify mode on and off.
UNLATCH - Modify is turned on only while pressing and holding the footswitch.
(MODIFY LED lights while the MODIFY is active.)
1 1 SELECT
This selects the type of effect when the MODIFY (13) footswitch is on:
ADD UPPER 5TH - Upper 5th is added to the effect sound.
SOLO - The direct signal is muted and only the effect sound is played.
ADD LOWER 4TH - Lower 4th is added to the effect sound.
ON/OFF footswitch
12
Switches the effect on and off.
13 MODIFY footswitch
Switches the modify mode on and off.
English
English
AC Adaptor MP-9 (CA)
you can even output the original and effect sounds to two separate amps). Now it's your
AC Adaptor MP-9 (EVB)
turn to stand out!
Using the MODIFY mode, you can add an upper 5th up or lower 4th to the effect or mute
the original bass sound completely. Tone and distortion can also be adjusted for more
control of the sound.
1
2
English English
Operation:
1.
2.
3.
4.
5.
6.
NOTE:
If noise is noticeable when the bass is not being played, and the effect is on, adjust the
NOISE GATE THRESHOLD by turning it to the minimum position and then turn it slowly
to the point where the noise becomes unnoticeable (while not playing). Play the bass to
check that the effects sound is released OK. If the release is too abrupt or unnatural
sounding, try turning the NOISE GATE THRESHOLD down a little.
MODIFY mode
In MODIFY mode, you can add a upper 5th or a lower 4th sourd to the one octave high
effect sound. Or you can mute the original bass sound completely. Also, you can set how
the MODIFY footswitch works. The MODIFY LED lights when the mode is on.
The SELECT switch selects the type of effect when the MODIFY mode is turned on:
NOTE:
Please do not turn the SOLO mode on within 10 seconds of turning the power on, as
there may be an audible click.
1 2
5 6
9
12
MIX output
This outputs a mix of the direct and effect signals. If you plug into the EFFECT
output, this outputs the direct signal only.
EFFECT output
This outputs only the effect signal.
Connect your bass to the INPUT jack.
Connect the MIX output to the input of your amplifier.
If you want to separate the bass and effects sounds, also connect the EFFECT
output to the input of a separate amplifier. In this case, MIX outputs the original
bass sound and EFFECT outputs the effect sound.
Turn your amp/s on.
Adjust the INPUT LEVEL while playing the bass. The level should be adjusted so
as the Red LED does not come on when playing at your loudest. However, since
the pitch cannot be determined properly if the level is too low, the level should be
adjusted as high as possible without turning on the Red LED.
Press the ON/OFF (left) footswitch to turn the effect on.
Adjust the TONE, DISTORTION and OUTPUT LEVEL to suit your taste.
ADD UPPER 5TH - Upper 5th is added to the effect sound.
SOLO - The direct signal is muted and only the effect sound is played.
ADD LOWER 4TH - Lower 4th is added to the effect sound.
For bass players who want to add more
depth to their sound, the UniBass is at your
feet giving great versatility and depth to
your playing style. It does this by shifting
the pitch one octave up and outputing the
original bass sound plus the effect sound
(you can control the mix between the two,
3
4
8
7
10 11
13
