Installation Instructions

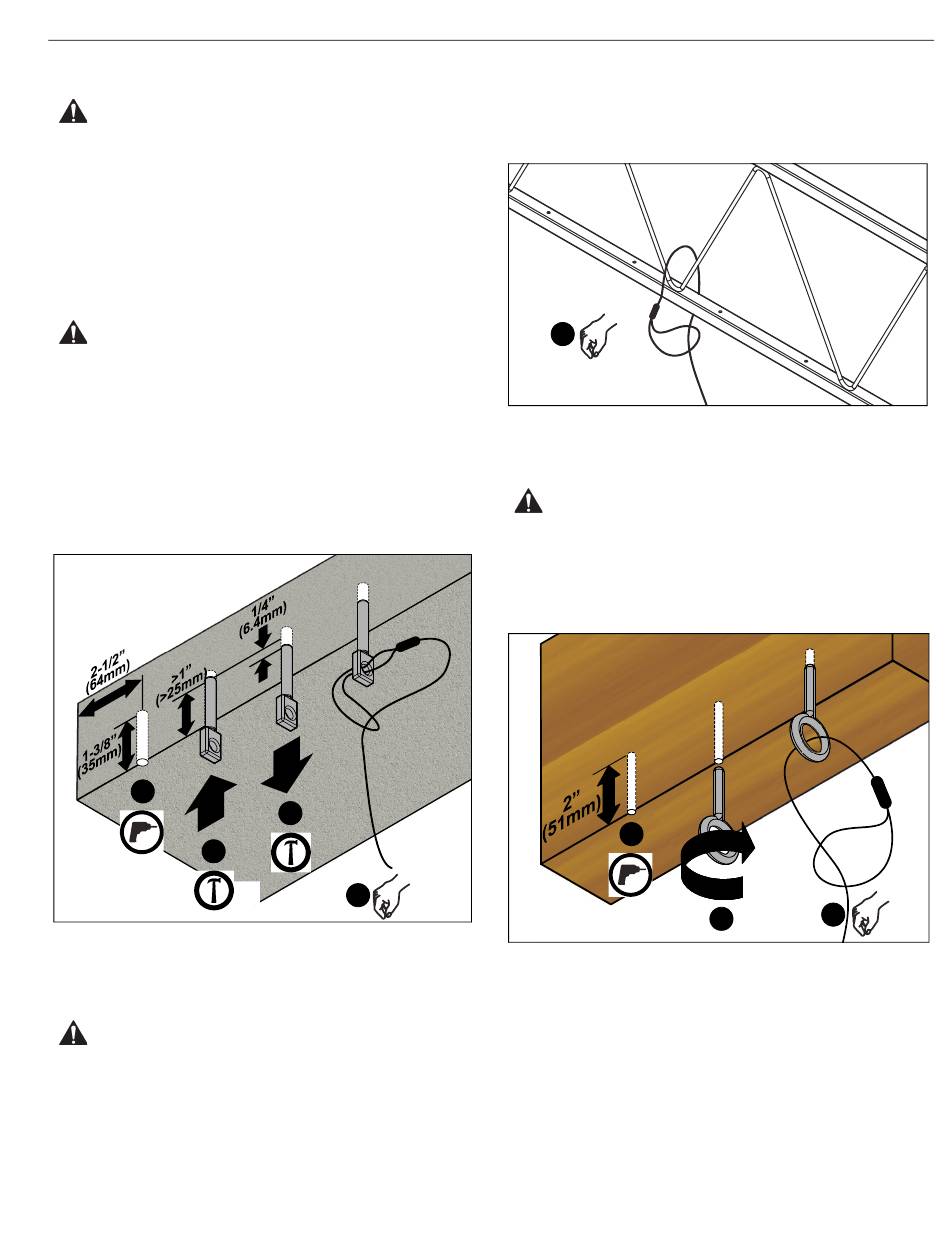

SUPPORT CABLE INSTALLATION
WARNING:
Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer's responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
Solid Concrete Ceiling Structure
WARNING:
Anchors must be installed into structurally
sound solid concrete with a minimum thickness of 1.75"
(44.5mm) or greater. Installation into hollow concrete block,
mortar, or concrete that exhibits cracking, spalling, or other
defects may result in failure of anchor and serious personal
injury or damage to equipment!
1.
Drill 1/4" diameter x 1-3/8" deep hole at each marked cable
anchor support location (See Figure 4). Ensure hole is at
least 2-1/2" from nearest concrete edge. Remove debris
from hole.
1
2
1/4"
Figure 4
2.
Tap anchor (D) into each hole to a depth of at least 1"
(25mm) (See Figure 4).
WARNING:
Failure to properly set anchor may result in
failure of anchor and serious personal injury or damage to
equipment!
3.
Using claw portion of hammer, set each anchor (D) by
pulling it out of hole approximately 1/4" (6.4mm). (See
Figure 4)
4.
Insert portion of manufactured loop on cable (C) through
hole in anchor (D) (See Figure 4). Insert end of cable (C)
through loop. Repeat for 3 remaining support locations.
3
(D)
4
(C)
Steel Truss Ceiling Structure
1.
Route end of cable (C) over truss at marked cable anchor
support location and then through cable loop. (See Figure 5)
Repeat for 3 remaining support locations.
1
(C)
Wood Ceiling Structure
WARNING:
Anchors must be installed into wood with a
minimum thickness of 1-1/2" (38.1 mm) or greater.
1.
Drill 5/32" diameter x 2" deep hole at each marked cable
anchor support location (See Figure 6). Remove debris
from hole.
1
5/32"
2.
Fully thread eye lag (E) into each hole (See Figure 6).
3.
Route end of cable (C) through eye lag (E) and then through
cable loop (See Figure 6). Repeat for 3 remaining support
locations.
ELPMBP04
Figure 5
3
2
(E)
Figure 6
(C)
7
