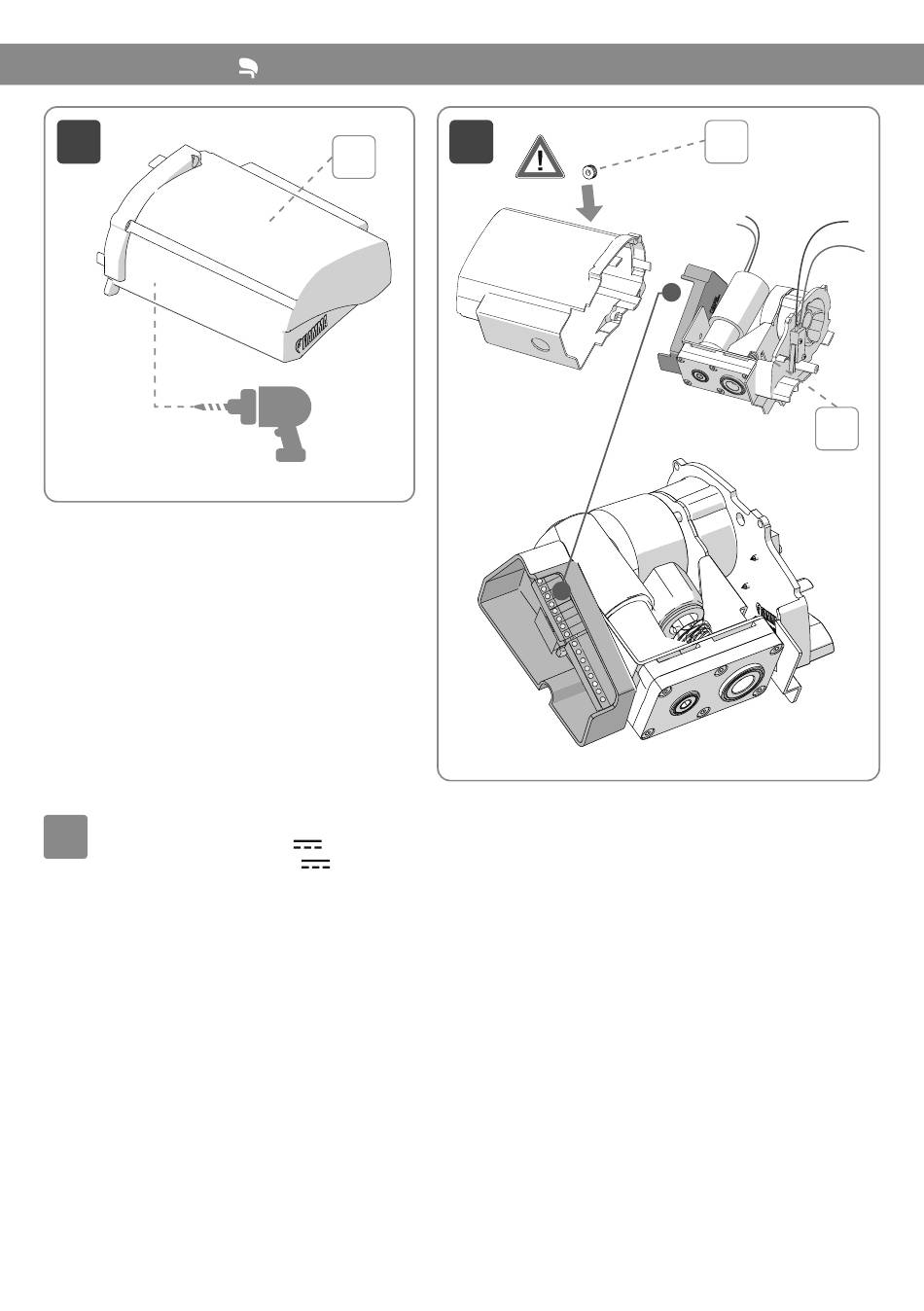

5 6
C
A
B
ø 10 mm
7 - CONNECT THE WIRES
EN
Supply connection 12V
This product works at 12V , never connect to a different voltage.
For safety reasons it is advisable to always disconnect the battery in the vehicle and therefore to work
without current during installation.
Choose the safest and shortest installation route for the power cable. Reduce the length of the power
cable as needed. Use only cable clamps suitable for the diameter of the power cable for the connection
to the terminal box.
If incorrect terminals are used, this may cause a voltage drop and increase heat generation on the
terminal.
The manufacturer shall not be held liable for claims for damages arising from the following:
- Faulty installation or connection of the product.
- Product damage caused by mechanical infl uences and overvoltage.
- Changes to the device without the express authorisation of the manufacturer.
For safety reasons we advice to make the electric connections as indicated on the diagram. When the
ignition key is turned, the relay (*not supplied) cuts off the current to the electric motor, to avoid any
accidental opening of the awning when the vehicle is moving.
The motor / motor + control unit system must be powered with a power line protected by
a 12 A fuse. The motor is equipped as standard with a fuse to prevent damage. In case of
problems the fuse trips and disconnects the circuit. Never put a fuse of different value from
the one supplied (fuse 5x20 T 4A L 250V). Never operate the product without a fuse.
6
