ENGLISH
INSTALLATION MANUAL
®
Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these
operating instructions very carefully.
The JB Systems TUBELED™ INDOOR system contains the following components:
 The 1m long TUBELED™ tubes: to be connected to the controller.
 The TUBELED™ controller: controls the connected led tubes.
 A 12V Power supply for every 16 indoor tubes.
 Signal extension cables: 0,8m, 5m or 10m.
 Power extension cables: 0,8m, 5m or 10m.
This manual only explains installation of the tubes, refer to the controller user manual to know
everything about how to use the TUBELED™ system.
FEATURES
 Each TUBELED™ uses 144 high efficiency leds.
 Suitable for indoor.
 Up to 4000 tubes can be connected to the controller (not included)
 12V Power supply (separate product) supports up to 16 INDOOR Tubeleds!
 Extended life span: 50000 – 100000hours
 Low power consumption (P<12W)
 Solid aluminum holders for wall fixing included
 Perfect for use in: retail stores, commercial displays, architectural lighting, indoor decoration, clubs, pubs,
mobile DJs, trussing, ...

BEFORE USE

Check the contents:
Check if the carton contains the following items:
 TUBELED™ INDOOR
 two aluminum holders for wall fixing
 Installation manual

SAFETY INSTRUCTIONS:

This symbol means: indoor use only.
This symbol means: Read instructions.
 To protect the environment, please try to recycle the packing material as much as possible.
 To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
 To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when
bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full
performance or may even cause damages.
 This unit is for indoor use only.
 Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign
object enters the unit, immediately disconnect the mains power.
 Prevent use in dusty environments and clean the unit regularly.
 Keep the unit away from children.
 Inexperienced persons should not operate this device.
 Maximum save ambient temperature is 40°C. Don't use this unit at higher ambient temperatures.
 Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
 Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
JB SYSTEMS®
INSTALLATION MANUAL
1/24 TUBELED™ INDOOR 12V
ENGLISH
 The electrical installation should be carried out by qualified personal only, according to the regulations for
electrical and mechanical safety in your country.
 The power cord should always be in perfect condition: switch the unit immediately off when the power cord
is squashed or damaged.
 This fixture must be earthed to in order comply with safety regulations.
 Don't connect the unit to any dimmer pack.
 Always use an appropriate and certified safety cable when installing the unit.
 In order to prevent electric shock, do not open the cover
 In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
 The housing and the lenses must be replaced if they are visibly damaged.
 Please use the original packing when the device is to be transported.
 Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering
from epilepsy.

OVERHEAD RIGGING

 Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
 Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
 The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
 Before rigging make sure that the installation area can hold a minimum point load of 10times the device's
weight.
 Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
 The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
 The operator has to make sure that the safety-relating and machine-technical installations are approved by
an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.

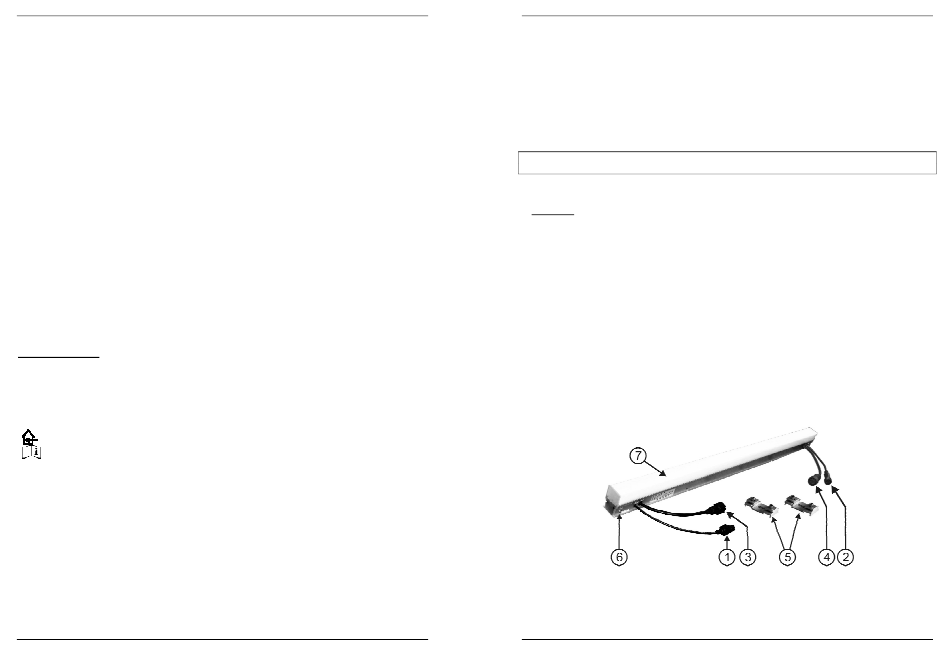

DESCRIPTION TUBES
1. TUBELED SIGNAL INPUT: low voltage signal input to be connected with the signal output of the
previous tube or with the signal output cable from the controller. Extra 0,8m, 5m or 10m signal cable
extensions are optionally available.
