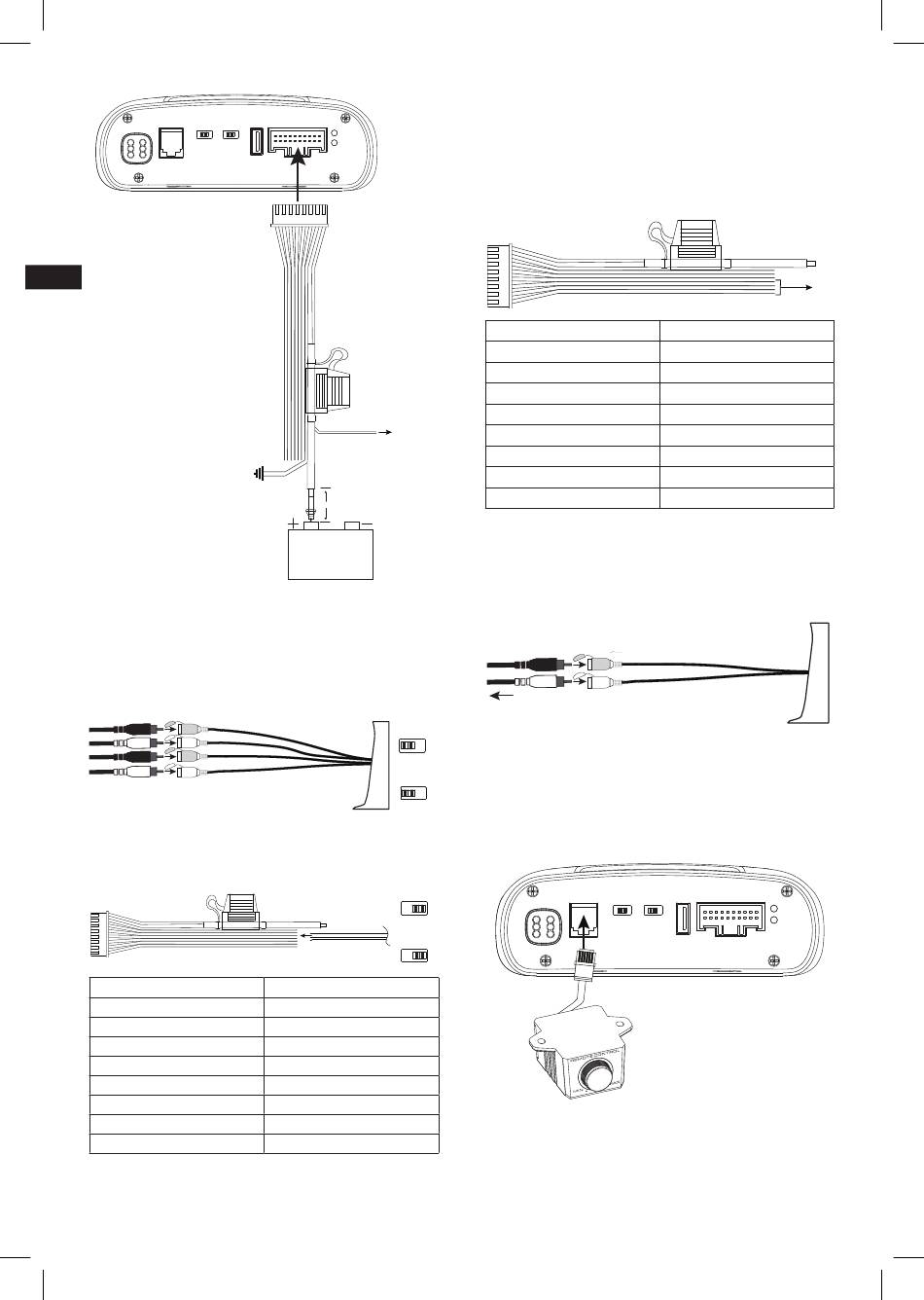

REMOTE TURN-ON INPUT
MODE LEVEL
CH 5-6 PRE-OUT
REM DC AUDIO LOW
CH 1-4 LOW IN
EN
Chassis ground (-)

Signal input

• Line-level inputs: If your source unit offers front and rear
preamp outputs, connect them to the front and rear line-level
inputs on the wire harness using RCA patch cables.
Note: when using low-level signals and remote turn-on lead, set
the "Turn-on Mode" switch to "REM" and the "Input Level" switch to
"LOW".
1
2
3
4
• High-level inputs: If your audio system's source unit does
not have line-level outputs, connect the speaker output wires
of your source unit to the high-level input wires of the amplifier
harness.
Wire color
Orange
Orange/Black
Blue
Blue/Black
Red
Red/Black
Yellow
Yellow/Black
NOTE: When using high-level signals, set the "Turn-on Mode" switch
to "DC" (to turn on when it receives battery power) or "AUDIO" (to turn
on when it senses signal from your source unit), and the "Input Level"
switch to "HI".
CA_Infinity_DSP Amplifier INFDSP4425_QSG_SOP_V5.indd 3 CA_Infinity_DSP Amplifier INFDSP4425_QSG_SOP_V5.indd 3
OUTPUT INPUT PWR
R R R R F F R R G B
PC R R L L R L L R N A
+ - + - - - - -
D T
PRT
HI PWR
F F F F F F R R O I
L L R R R L L R U N
+ - + - + + + +
T
OUTPUT INPUT REM
Remote turn-on (blue)
to stereo REM out
Fuse holder, 15A fuse
18" (46cm)
Battery
TURN-ON
MODE
REM DC AUDIO
INPUT
LEVEL
LOW
TURN-ON
MODE
REM DC AUDIO
INPUT
LEVEL
Vehicle speaker wires
LOW
High-level input
Front left +
Front left -
Front right +
Front right -
Rear left +
Rear left -
Rear right +
Rear right -
Speaker Output Connections
Connect your speakers to the wires of the speaker output wiring
harness, observing proper polarity: connect each positive (+) lead
to the appropriate positive (+) speaker terminal, and negative (-)
lead to the appropriate negative (-) speaker terminal. Then plug the
speaker output wiring harness into the DSP Amplifier.
IMPORTANT: None of the speaker output channels can be bridged.
Wire color
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Connecting a second amplifier (sold separately)
To incorporate more power into your system, you can send
a second amplifier a full-range audio signal using the preamp
outputs of the INFDSP4425. Use an RCA patch cable to connect
the preamp outputs to the preamp inputs of the second amplifier.
To speakers amplifier
Connecting the remote bass level control (sold
separately)
The INFDSP4425 is compatible with the optional Infinity RBC
remote bass level controller, available at your local Infinity dealer.
HI
To connect it, plug into the appropriate input on the control panel
of the INFDSP4425. Mount the remote in a convenient location,
such as under the dash, using sheet metal screws.
REMOTE
CH 5-6 PRE-OUT
CH 1-4 LOW IN
HI
To speakers
Output channel
Front left +
Front left –
Front right +
Front right –
Rear left +
Rear left –
Rear right +
Rear right –
OUTPUT INPUT PWR
R R R R F F R R G B
TURN-ON INPUT PC R R L L R L L R N A
+ - + - - - - -
D T
MODE LEVEL
PRT
REM DC AUDIO LOW HI PWR
F F F F F F R R O I
L L R R R L L R U N
+ - + - + + + +
T
OUTPUT INPUT REM
