Technical Data

6. Technical Data
SHC 2.5
Item No. 233219
Voltage 110–120 V
Wattage 1300 W
Amperage 11.3 A
Phase Single, 1/N/PE
Frequency 50/60 Hz
Type of installation Under sink
Internal tank material Steel
Enclosure material Plastic
Thermal insulation material Polystyrene
Color white
Nominal water volume 2.65 gal
1
Standby energy loss 0.37 kWh/day
Recovery time 18 minutes
Temperature setting range 86–140 °F 30–60 °C
Maximum operating pressure 150 psi
Weight empty 15.9 lbs
Weight full 38.6 lbs
Water connections 1/2˝ NPT
1
Measured at 131°F / 55°C set point temperature in 68°F / 20°C ambient air temperature.
6.1

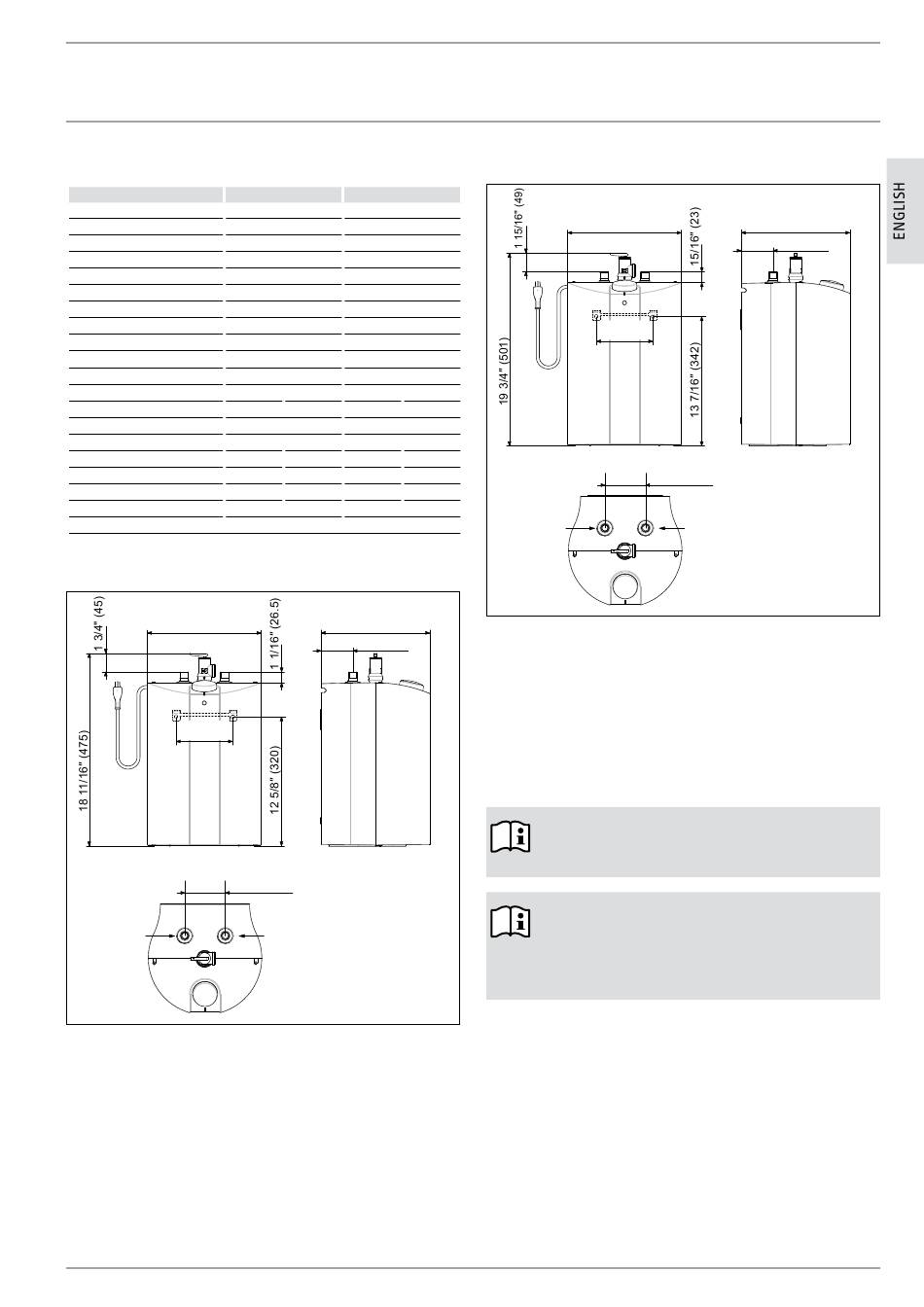

Dimensions, SHC 2.5

11" (280)
5 1/2" (140)
3 15/16" (100)
Hot Water
Outlet
1/2" NPT
male thread
in. (mm)
www.stiebel-eltron-usa.com
SHC 4
234046
110-120 V
1300 W
11.3 A
Single, 1/N/PE
50/60 Hz
Under sink
Steel
Plastic
Polystyrene
white
10 l 4 gal 15 l
0.39 kWh/day
27 minutes
86–140 °F 30–60 °C
1.0 MPa 150 psi 1.0 MPa
7.2 kg 19.8 lbs 9.0 kg
17.5 kg 52.9 lbs 24.0 kg
1/2˝ NPT
10 5/8" (270)
3 1/8" (80)
Cold Water
Inlet
1/2" NPT
male thread
6.2

Dimensions, SHC 4

12 5/8" (320)
7 7/8" (200)
3 15/16" (100)
Hot Water
Outlet
1/2" NPT
male thread
in. (mm)
7.

General Recommendations

The installation must be carried out by licensed profession-
als. All state and local codes must be adhered to.
The manufacturer will not be liable for any damages because
of failure to comply with these installation instructions or
because of improper installation performed by an unqual-
ified installer.
NOTE:
The T&P valve must be manually vented monthly.
See 12.2, "Venting the T&P relief valve", pg. 8
NOTE:
Choose a location that allows easy access for main-
tenance or servicing.
The water heater should be installed with at least
8˝ of clearance on the top and sides of the unit.
12 1/2" (318)
3 1/8" (80)
Cold Water
Inlet
1/2" NPT
male thread
SHC 2.5 / SHC 4 | 5
