INSTALLATION AND SET- UP

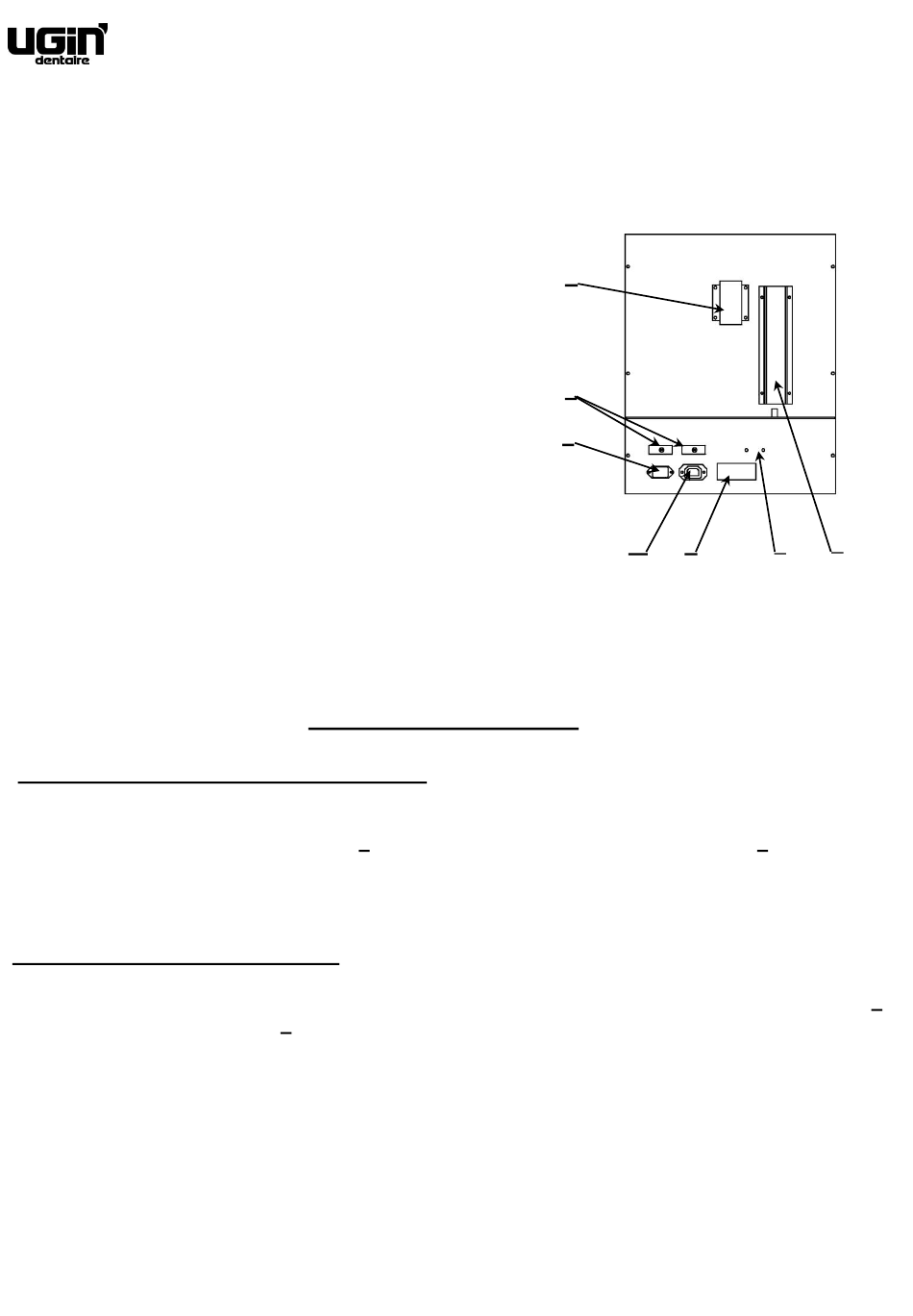

1.
Vent outlet
2.
Fuse holder
3.
Power socket
4.
Flue exhauster socket
5.
Identification plate
6.
Location of TRIAC
7.
Thermocouple cover
►After unpacking the machine, verify its condition and notify the shipper and supplier of any
damage.
►Remember to have the deliveryman sign the shipper order on which any reservations have
been noted and to confirm the latter to the shipper by registered letter with acknowledgement of
receipt.
INSTALLATION FO THE FLUE EXHAUSTER: (available as an option)
The flue exhauster is the normal complement of the pre-drying furnace.
It is connected electrically to the socket 4 and mechanically in place of the vent outlet 1.
The flue exhauster handles the obvious job of removing waste gases from the laboratory.
It also helps keep the front panel and controls clean at a times.
INSTALLATION OF THE FURNACE:
►After checking that the mains voltage is the same as that indicated on the identification plate 5
connect the cord to the socket 3.
► Place the furnace in a ventilated area at a distance of at least 10 cm from any other vertical
surfaces.
►Then connect the power cord to a standard 10/16A socket with a grounding terminal.
►Flip the master switch located on the right and side of the furnace.
1
2
3
20
PROGRAMIX 50/100
4 5 6
7
