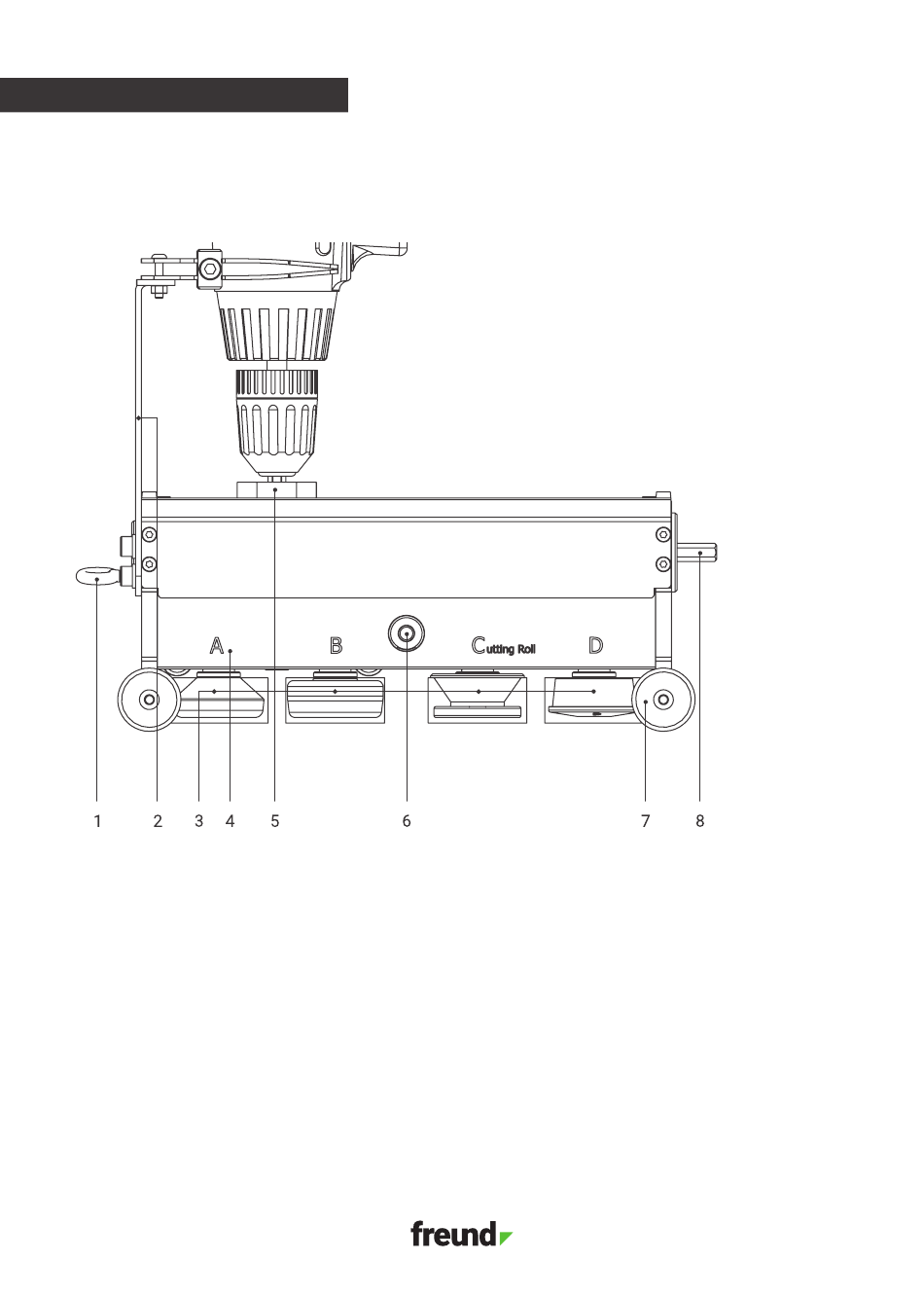

4. TECHNICAL DRAWINGS

1. Safeguarding with ring bolt
(Front and rear fixing possible)
2. Holder cordless screwdriver
3. Forming rolls A to D
4. Housing marking form rollers A to D
5. Upper cordless screwdriver adapter
6. Pressure adjustment screw
7. Track rollers (4 pieces)
8. Rear cordless screwdriver adapter (Auxiliary drive for facade)
Subject to technical changes. Please observe the safety instructions.
