3.

CALIBRATION SOFTWARE

LIMITED LIABILITY
E+E Elektronik
of earnings, interruption of business, loss of information and data or any other pecuniary damages), that result
from the installation, usage and also impossibility of usage of a software product from E+E Elektronik
supportservices possibly associated with it or non-performance of support.
3.1

Installation

Note: Authorisation of an administrator might be required for problem-free installation of the EE08 calibration
software.
1. Insert the enclosed CD ROM into the PC drive.
2. Run the file "Setup.exe" to install the EE08 calibration software.
3. The Installshield Wizard for the EE08 calibrator is launched.
4. Follow the instructions to install the software.
5. Click the "Finish" button to complete the installation of the calibration software.
Set the program language and serial interface (e.g. COM1) when starting the EE08 calibration software for the
first time.
System requirements: MS WINDOWS 98
3.2

Icons on the toolbar

3.2.1 File

- Select COM port:
- Exit:

3.2.2 Help

- Open manual:
- About...:
3.3

Index - Index Cards

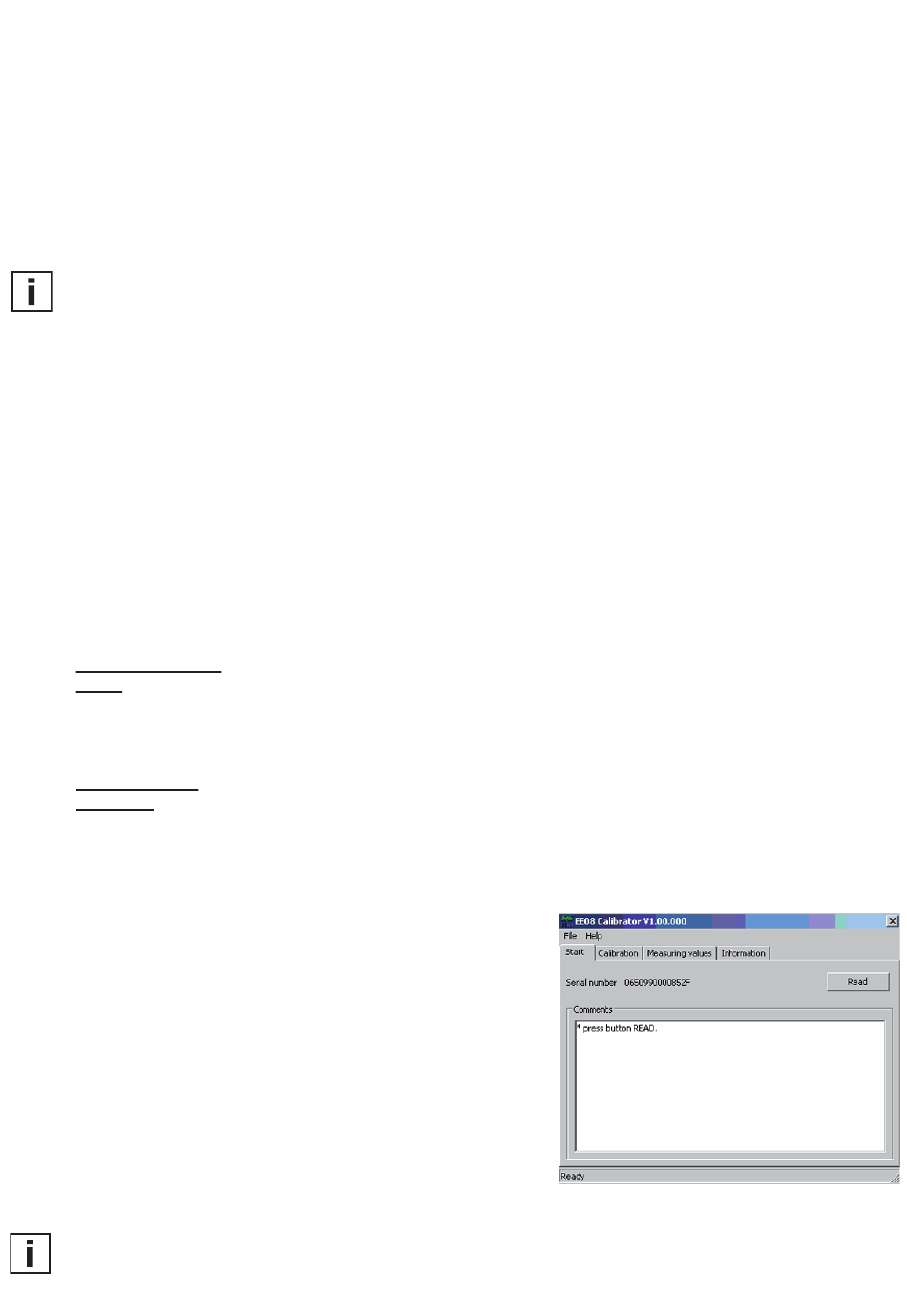

3.3.1 Start

Calibration routine:
1. Connect EE08 with converter (HA011005) and PC according
the connection diagram.
2. Open calibration software.
3. Press push-button "READ".
4. Transmitter data will be read and displayed
number, output signal...).
5. Carry out requested calibration (see index card "Calibration").
Note:
Only make changes after reading (updating) the transmitter data first!
is not liable for any damages or consequential damages (for example, but not restricted to loss
®
Selection of interface for communication
Exit program
Opens EE08 manual
General information about calibration software
and above, serial interface
®
(e.g.: serial
16
